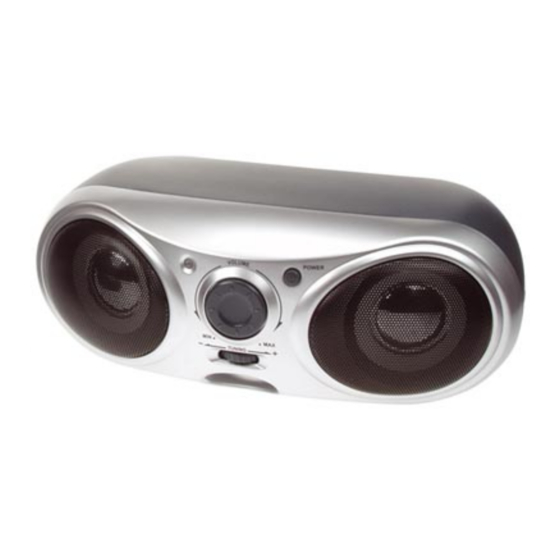

PCWSB1 – WIRELESS USB/RCA LOUDSPEAKER
1. Introduction & Features
At the end of its life cycle, dispose of this product in accordance with local and national disposal regulations.
Thank you for buying the PCWSB1! Please read the manual thoroughly before bringing this device into service.
If the device was damaged in transit, don't install or use it and contact your dealer.
2. Safety Instructions
• Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not
accept responsibility for any ensuing defects or problems.
• All modifications of the device are forbidden for safety reasons. Damage caused by user modifications is not covered by the
warranty.
• Only use a CE/GS regulated power adapter to power the PCWSB1 from the mains.
• Do not shake the device. Avoid brute force when installing or operating the device.
• Protect the PCWSB1 against extreme heat, dust and moisture.
• Familiarise yourself with the functions of the device before actually using it. Do not allow operation by children or unqualified
people. Any damage that may occur will most probably be due to unprofessional use of the device.
• Only use the device for its intended purpose. Using the device in an unauthorised way will void the warranty.
• This is category 3 equipment intended for general consumer purposes.
3. Specifications
operating frequency
audio input transmitter
power supply transmitter
power supply receiver
dimensions transmitter
dimensions receiver
total weight
4. When Using Batteries
• Always install batteries of the same type and capacity. Alkaline batteries are recommended.
• Never mix old and new batteries. Always replace all batteries at once.
• Respect the polarity indications when installing batteries.
• When batteries are drained, dispose of them in accordance with local and national disposal regulations.
• If the device will not be used for a longer period of time, remove the batteries to avoid leakage.
5. Use
a. Transmitter
PCWSB1
863-865MHz
USB or RCA (USB and RCA cables included)
USB / 4x AA batteries LR6C (not incl.) / regulated power adapter 6V /100mA (not incl.)
6x C batteries LR14C (not incl.) / regulated power adapter 9V/1A (not incl.)
94 x 125 x 39mm
256 x 179 x 98mm
1.5kg
Rear panel (left)
1. USB connector
2. RCA connectors
3. 6Vdc power input
4. antenna
Side panel (right)
5. power indicator
6. OFF/ON/USB switch
7. fine tuning wheel
