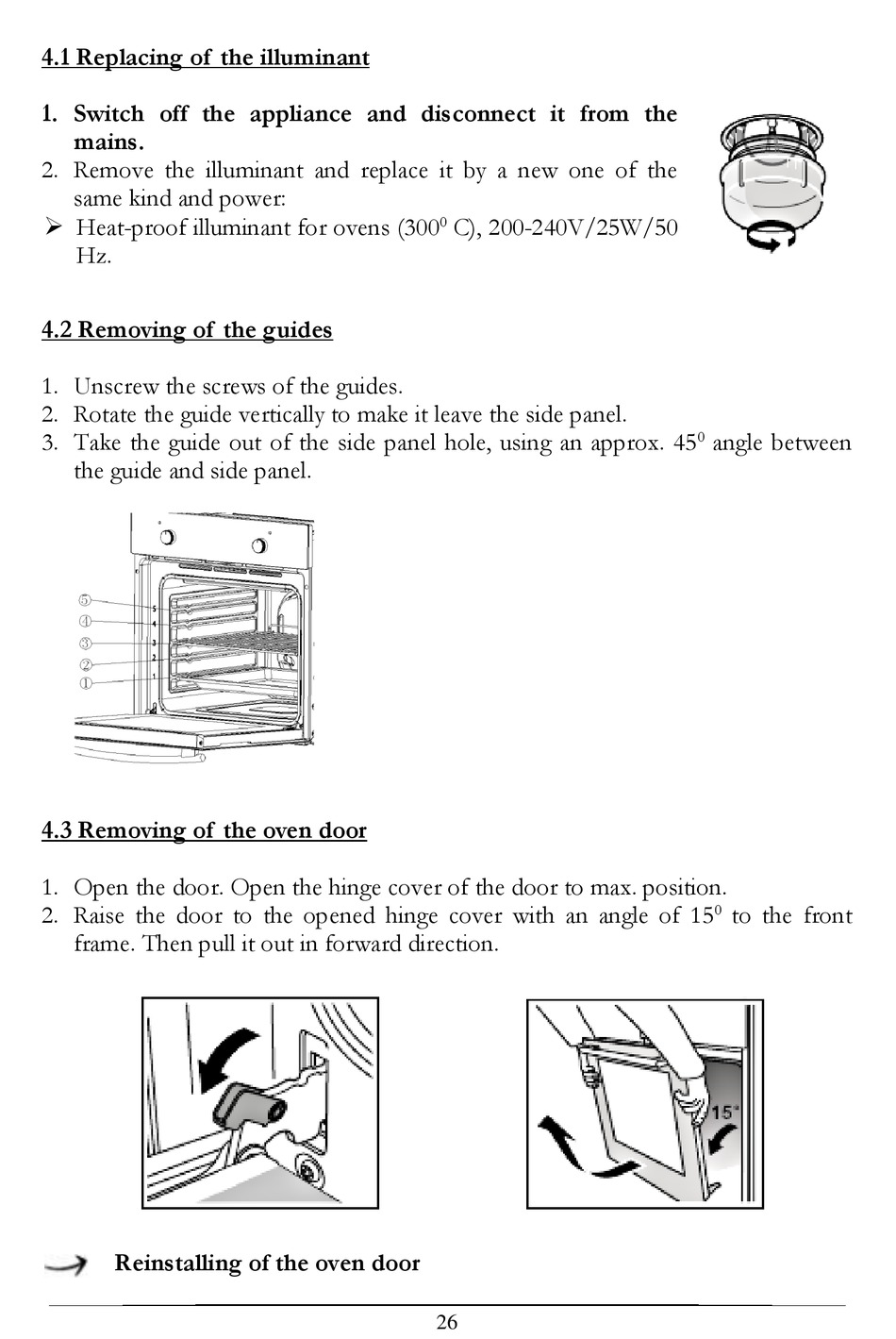

4.1 Replacing of the illuminant

1. Switch off the appliance and disconnect it from the
mains.
2. Remove the illuminant and replace it by a new one of the
same kind and power:
 Heat-proof illuminant for ovens (300
Hz.

4.2 Removing of the guides

1. Unscrew the screws of the guides.
2. Rotate the guide vertically to make it leave the side panel.
3. Take the guide out of the side panel hole, using an approx. 45
the guide and side panel.

4.3 Removing of the oven door

1. Open the door. Open the hinge cover of the door to max. position.
2. Raise the door to the opened hinge cover with an angle of 15
frame. Then pull it out in forward direction.
Reinstalling of the oven door
C), 200-240V/25W/50
0
26
0
angle between
to the front
0
