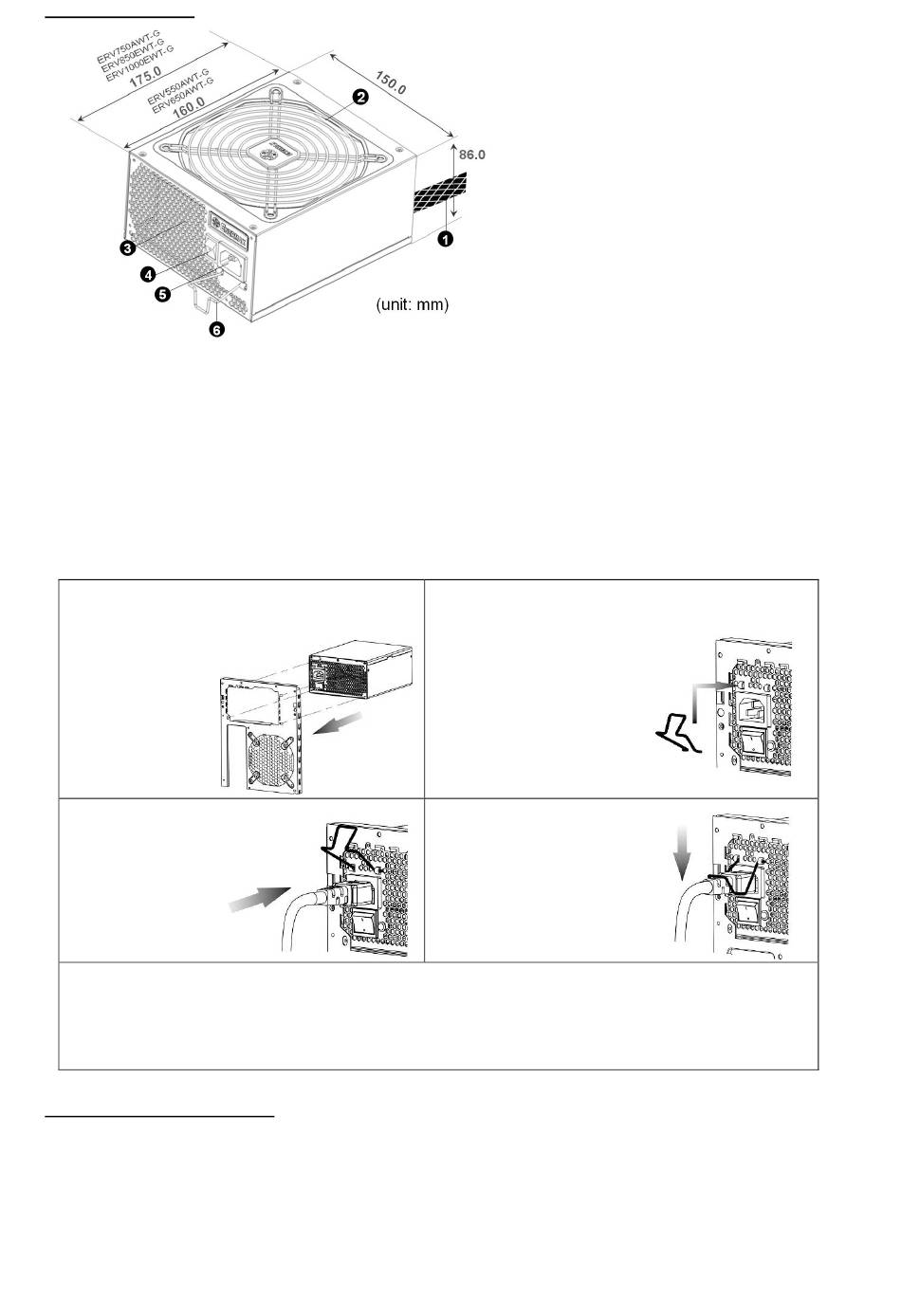

NAME OF PARTS

#1 To ensure best system cooling, do not block PSU fan's air in-take and air vent area.
This PSU offers a special HeatGuard function. When the system is turned off, or goes into ACPI
S3/S4 sleep mode, the PSU fan will keep dissipating the remaining heat for 30 ~ 60 seconds and
prolonging system lifetime.
#2 When assembling or maintaining the system, please remove AC cord from AC inlet, or turn
ON/OFF switch into "OFF" position. Then you can safely service the system.
#3 AC cord can get loose in many ways. The ENERMAX CordGuard lock can fix your AC cord tightly
to the PSU, so that it will not be easily detached and avoid shut-downs of your PC. The following
is CordGuard installation:


①
Set your PSU into the chassis, and please
make sure the I/O switch is on "O"
position.


③
Plug the AC
cord into your
PSU.
1. CordGuard is for AC cords supplied with ENERMAX CordGuard-compatible PSUs. Other AC
cords may be incompatible.
2. When assembling or maintaining the system, please remove AC cord from AC inlet, or turn I/O
switch into "O" position.
CABLES & CONNECTORS
All connectors are designed to prevent insertion in wrong orientation. If you cannot easily insert a
connector, please check if you are inserting the connector in the right orientation. Do not try by force to
insert it nor modify the connectors. This might damage power supply and system components, and
warranty shall be void.
Following graphic illustrates the modular sockets layout and its DC rail distribution.
①
Output cable: Please check "Cables &
Connectors" section.
# 1
②
Fan.
③
Honeycomb air vent.
④
ON/OFF switch (I=ON, O=OFF).
⑤
AC Inlet.
⑥
CordGuard.


②
Press two sides of the CordGuard lock
together, and set it into
CordGuard holder near
the AC inlet.


④
Lock CordGuard to
latch onto AC cord.
4
# 1
# 2
#3
