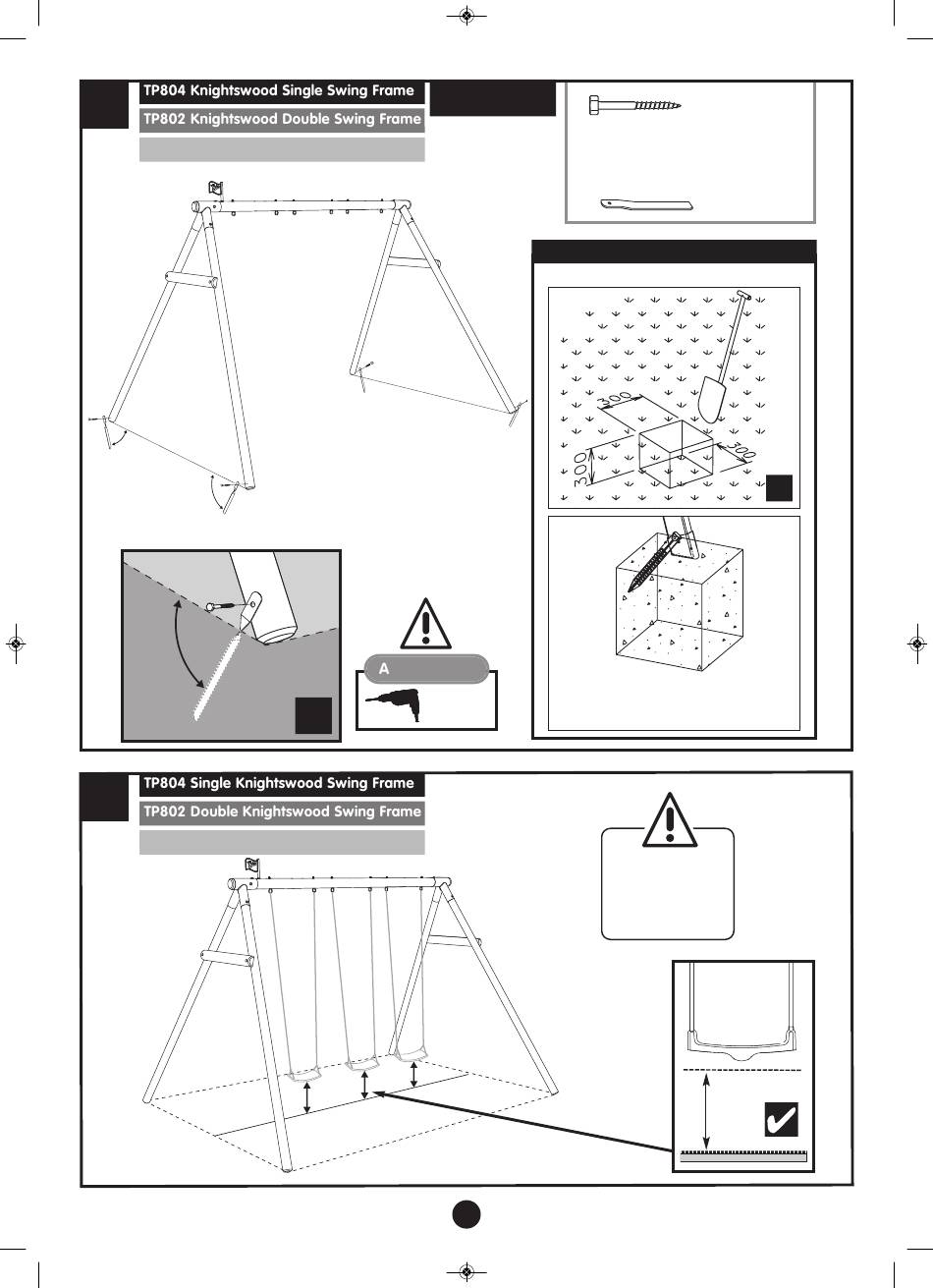

Stage
6
TP803 Knightswood Triple Swing Frame
45°
45°
45°
Stage
7
TP803 Triple Knightswood Swing Frame
Staking
45°
SSEMBLY TIP
Drill 3mm
x4
Pilot Holes
14
M8 x 70mm Coach screw x4
FA8439
Ground Stakes x4
PR5069
Staking into concrete
45°
Set the stakes in concrete (as shown).
Never set the legs of the playset in concrete.
Refer to separate
accessory instructions
for correct seat fitting.
x4
350mm
min.
TP Knightswood Swing Frames
