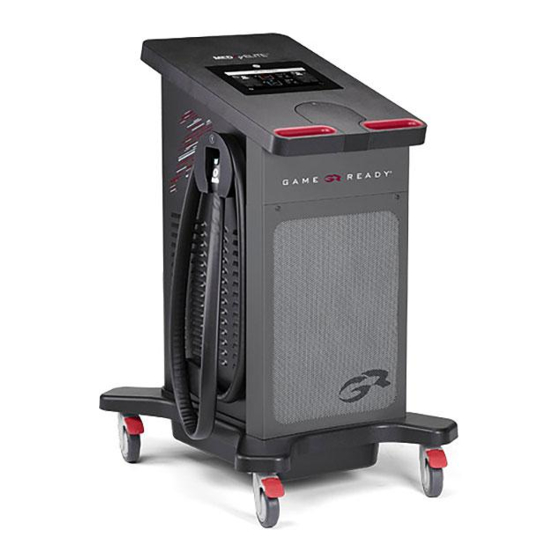

Game ready Med4 Elite Handbuch

Welcome to Med4 Elite. These simple steps will guide
you through uncrating the Med4 Elite. Follow these steps
to ensure a safe and speedy setup. We recommend having
two people uncrate the Med4 Elite. To get started, you will
need a power/battery operated phillips screwdriver.

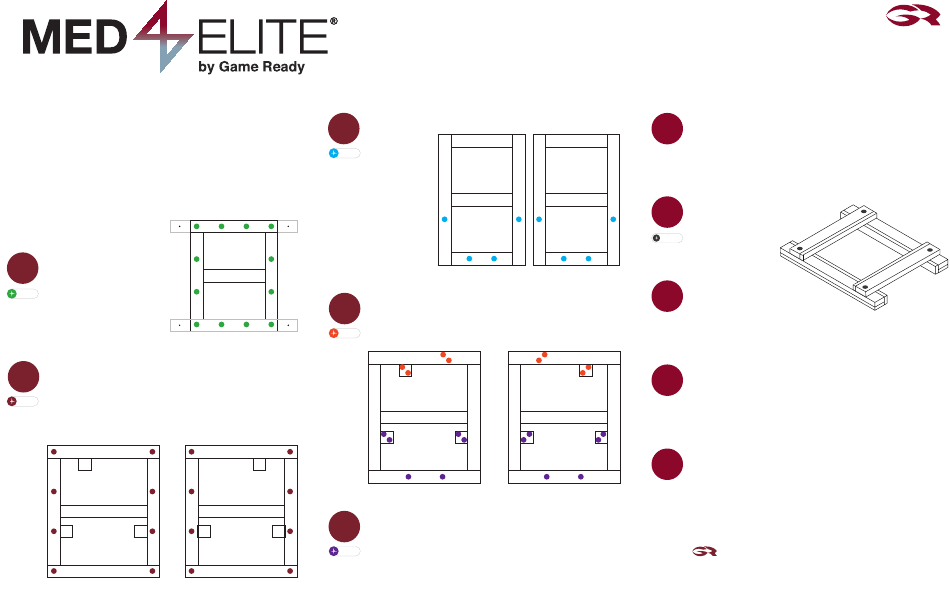

NOTE: Screw location approximated in
green, red, blue, orange, purple, and
gray in each drawing.
1 REMOVE TOP PANEL
Remove the twelve (12) screws that
secure the top panel in place. Carefully
x12
lift the top panel off of the crate.
2 REMOVE VERTICAL SCREWS
FROM BOTH SIDE PANELS
Remove the sixteen (16) screws (eight from each side) along each vertical
x16
edge of the side panels. DO NOT remove the interior or bottom screws from
the side panel until instructed to do so.
RIGHT SIDE
3 REMOVE FRONT & BACK PANELS
Remove the
remaining eight (8)
x8
screws (four from
each panel) that
secure the front
and back panels in
place.
Carefully lift each
panel away from
the crate and set
aside.
TOP
4 REMOVE TOP BRACES
Remove the eight (8) screws (four from each side) that secure the top braces in
place. Carefully lift the braces away from the Control Unit.
x8
RIGHT SIDE
LEFT SIDE
5 REMOVE SIDE PANELS
Remove the twelve (12) remaining screws (six from each side) that secure
the side panels in place. Carefully lift the side panels away from the crate
x12
and set aside.
FRONT BACK
LEFT SIDE
NOTE: Screw count is approximated. Always
use caution when uncrating the Med4 Elite.
6 REMOVE ACCESSORY KIT BOX
The Accessory Kit box is located at the back of the Control Unit. Carefully detach it
from the plastic protecting the Control Unit. Set it aside in a safe place. You will
need the contents inside to begin setting up the Med4 Elite.
7 REMOVE BOTTOM BRACES
Remove the four (4) screws (two from
each side) that join the bottom braces
x4
together. Carefully lift them
away from the Control Unit.
8 REMOVE PLASTIC
COVER
Remove the plastic protective layer
and dispose of it.
9
SET CONTROL UNIT OFF BASE OF CRATE
Carefully lift the Control Unit off of the base of the crate and gently set down on a
flat surface. Lock the casters. Two people are required to perform this step to
prevent damage to the Control Unit. Do not tip the Control Unit.
10
GETTING STARTED
Use the Quick Start located inside the Accessory Kit box for instruction on the initial
setup. We recommend saving the accessory box as storage for the drain hoses,
USB flash drive, and Med4 Elite documenation. The Quick Reference cards are
designed to hang from the handles of the Med4 Elite Control Unit.
Contact Game Ready Technical Support at:
1.888.GameReady
(1.888.426.3732) or 1.510.868.2100.
From outside the U.S., contact your local distributor.
