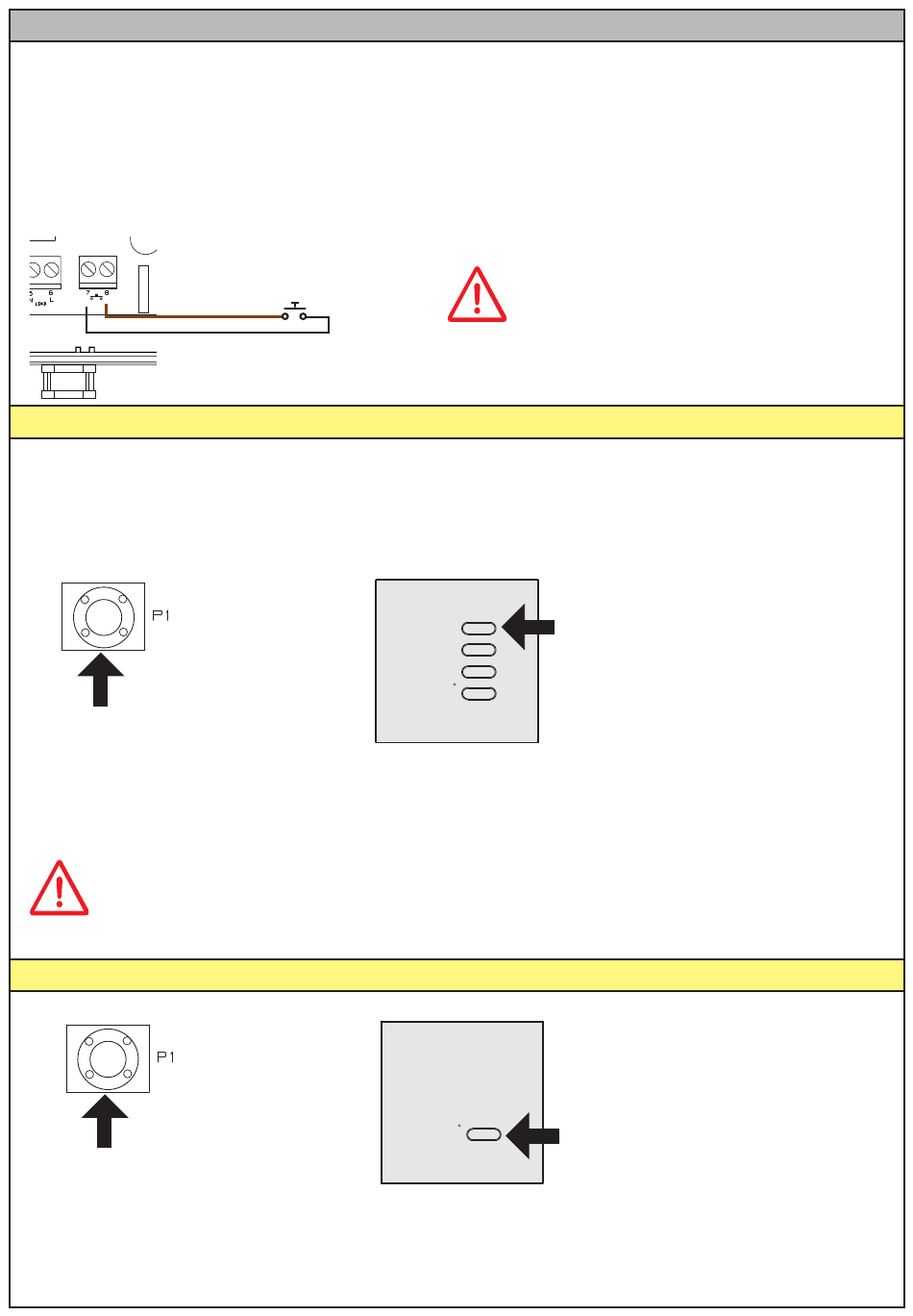

4 - Functioning with manual push buttons
The external push-button work in sequential mode with the following function:
1- Push once: Turn On the load at the 33%,
2- Push once: Adjust the load at the 50%,
3- Push once: Adjust the load at the 66%,
4- Push once: Adjust the load at the maximum,
5- Push once: Turn off the load,
6- Restart the sequence from point 1.
L 230V
push-button input
5 - Memorization of 4-channel transmitters
The memorised transmitter displays the programmed value:
a) Push-button Ch1: 100%
b) Push-button Ch2: 66%
c) Push-button Ch3: 50%
d) Push-button Ch4: Off
P1
Once
and hold down
1- Press the push button P1 once
and hold it down, the buzzer will
make a beep each time and then
sound continuously.
If you memorize a 7-channel transmitter the CH5, CH6 and CH7
push-button are locked and it can't memorize for other function.
Memorization of one transmitter push-button with OFF function
6 -
The push-button memorised with Off function turns off the load.
P1
Twice
and hold down
1- Press the push button P1 twice
and hold it down, the buzzer will
make a beep each time and then
sound continuously.
the buzzer make 1 beep
the buzzer make 2 beeps
the buzzer make 3 beeps
the buzzer make 4 beeps
the buzzer make a long beep
attention
button connected to the 230Vac phase wire
2- During the sound press the push-
button which has to be memorised;
the memorization is indicated by the
intermittently sound of the buzzer.
2- During the sound press the push-
button which has to be memorised;
the memorization is indicated by the
intermittently sound of the buzzer.
7
CH1: 100%
CH2: 66%
CH3: 50%
CH4: Off
