Installation and Operating Instructions
– Flash light siren BLH
Operating voltage
Voltage range
Maximum current consumption
Current consumption at 24 Volt
Connection
Connection terminals
Adjustable alarm tones
Volume adjustment range
Flash light
Flash light colour
Flash frequency
Protection category
Temperature range
Casing/colour
Weight
Assembly
Guideline

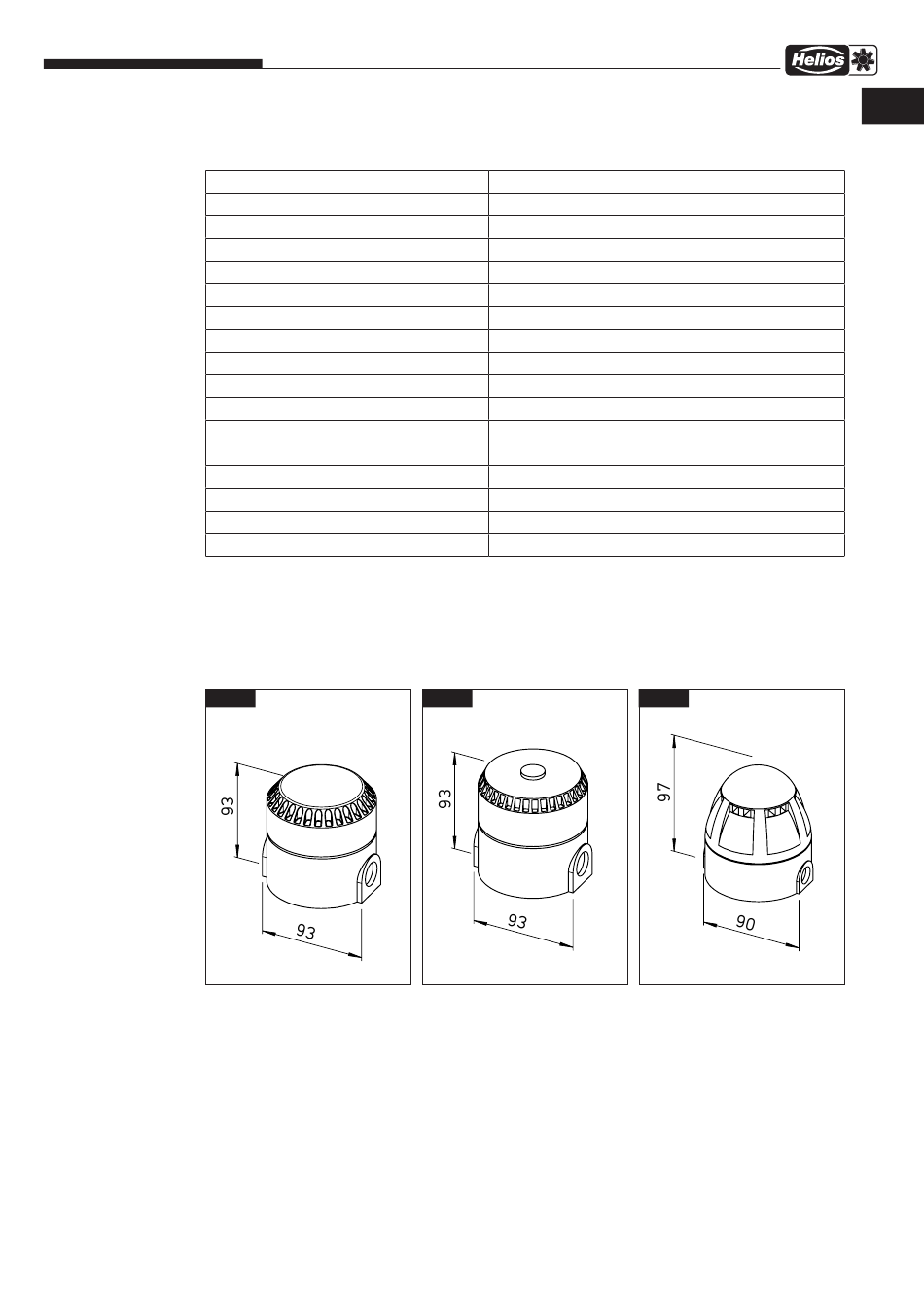

4.1 Dimensions
Fig.14
Signal generators BL, BLH, WH
Type BL
Fig.15
Dim. in mm
8
24 Volt DC
9 to 28 Volt DC
max. 40 mA at 24V
13 bis 40 mA at 24V
Terminal block 6-way (3 terminals connected)
0.25 mm² to 1.5 mm²
39, incl. German fire, 98 dB(A), 1 Hz
67-100 dB(A)
LED
red
1 Hz
IP 65
-25°C to +70°C
ABS/red
0.21 kg
Wall and ceiling installation
VdS
Type WH
Fig.16
Dim. in mm
EN
Type BLH
Dim. in mm
