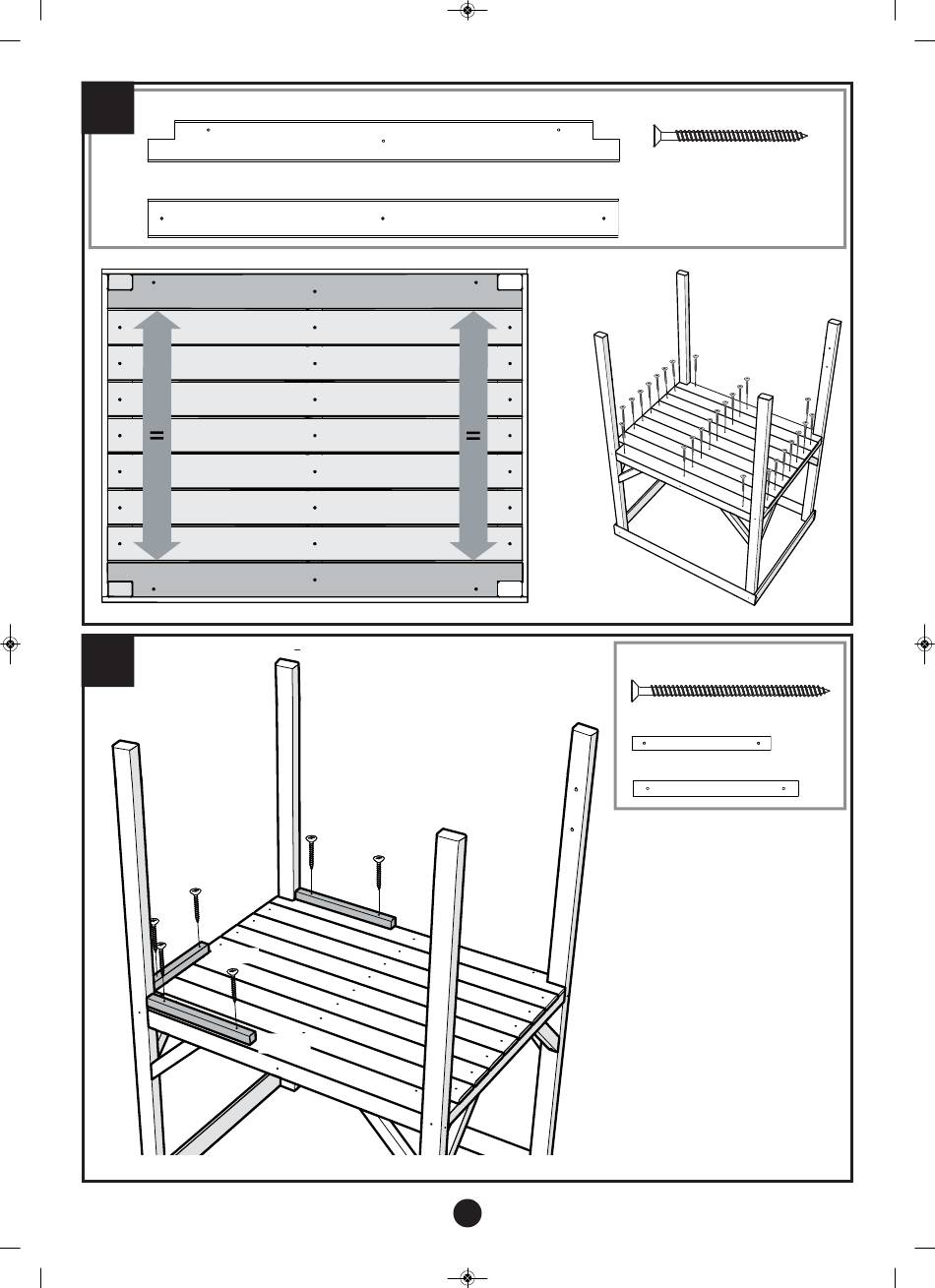

TP30 Adventure Play House IN3337 Issue C 11 12:TP30 Adventure Play House IN3337 Issue C 11 12 13/11/2012 11:52 Page 11
6
x2
MW2005 (1159mm)
x27
No10 x 38mm Woodscrew
x7
MW2011 (1159mm)
MW2005
MW2011
MW2011
MW2011
MW2011
MW2011
MW2011
MW2011
MW2005
7
x6
4.5 x 50mm Woodscrew
x1
MW2016 (342mm)
x2
MW2007 (407mm)
MW2007
MW2016
MW2007
Adventure Play House
11
