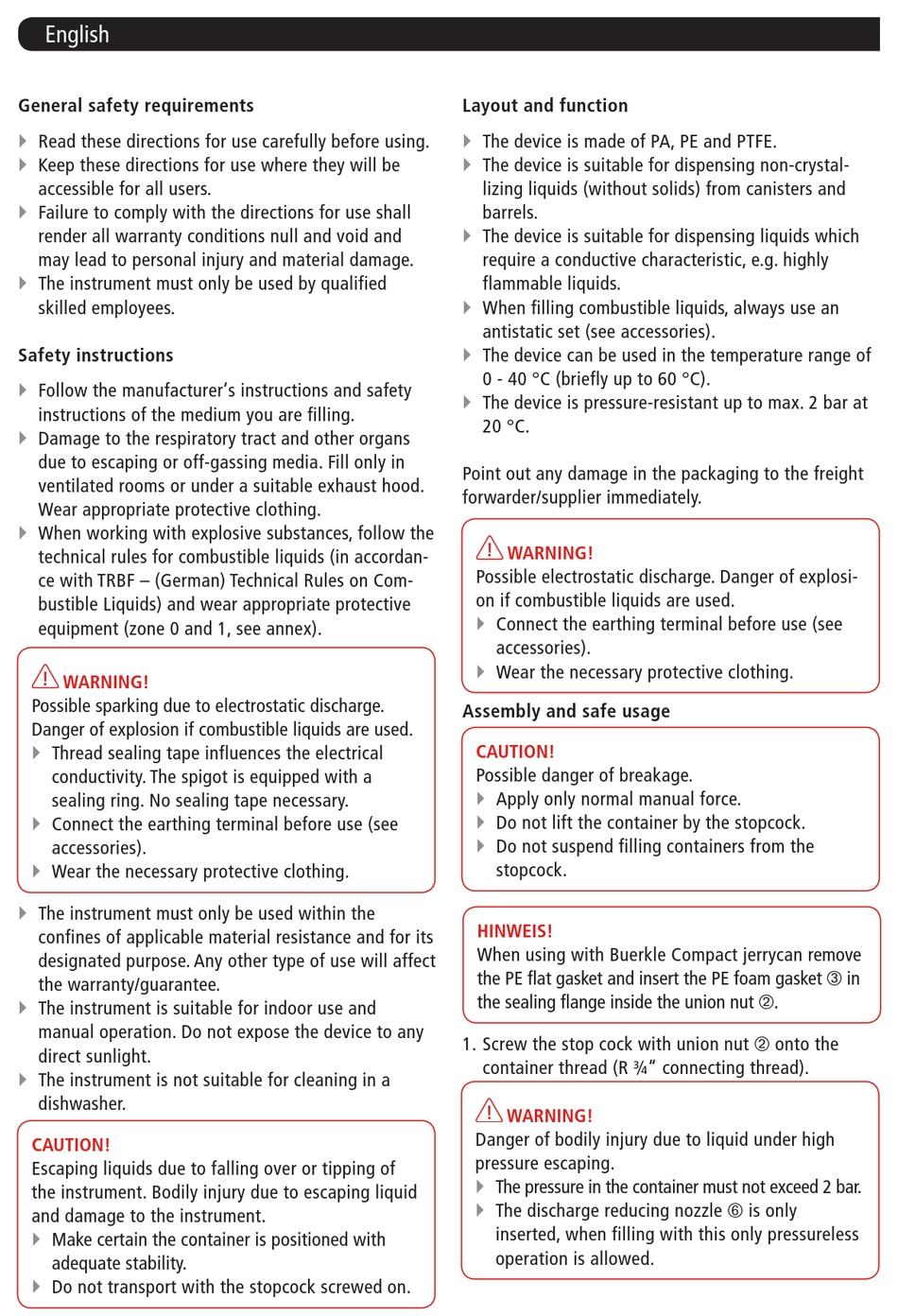

burkle StopCock Gebrauchsanleitung Seite 4

English
General safety requirements
` ` Read these directions for use carefully before using.
` ` Keep these directions for use where they will be
accessible for all users.
` ` Failure to comply with the directions for use shall
render all warranty conditions null and void and
may lead to personal injury and material damage.
` ` The instrument must only be used by qualified
skilled employees.
Safety instructions
` ` Follow the manufacturer's instructions and safety
instructions of the medium you are filling.
` ` Damage to the respiratory tract and other organs
due to escaping or off-gassing media. Fill only in
ventilated rooms or under a suitable exhaust hood.
Wear appropriate protective clothing.
` ` When working with explosive substances, follow the
technical rules for combustible liquids (in accordan-
ce with TRBF – (German) Technical Rules on Com-
bustible Liquids) and wear appropriate protective
equipment (zone 0 and 1, see annex).
WARNING!
Possible sparking due to electrostatic discharge.
Danger of explosion if combustible liquids are used.
` ` Thread sealing tape influences the electrical
conductivity. The spigot is equipped with a
sealing ring. No sealing tape necessary.
` ` Connect the earthing terminal before use (see
accessories).
` ` Wear the necessary protective clothing.
` ` The instrument must only be used within the
confines of applicable material resistance and for its
designated purpose. Any other type of use will affect
the warranty/guarantee.
` ` The instrument is suitable for indoor use and
manual operation. Do not expose the device to any
direct sunlight.
` ` The instrument is not suitable for cleaning in a
dishwasher.
CAUTION!
Escaping liquids due to falling over or tipping of
the instrument. Bodily injury due to escaping liquid
and damage to the instrument.
` ` Make certain the container is positioned with
adequate stability.
` ` Do not transport with the stopcock screwed on.
Layout and function
` ` The device is made of PA, PE and PTFE.
` ` The device is suitable for dispensing non-crystal-
lizing liquids (without solids) from canisters and
barrels.
` ` The device is suitable for dispensing liquids which
require a conductive characteristic, e.g. highly
flammable liquids.
` ` When filling combustible liquids, always use an
antistatic set (see accessories).
` ` The device can be used in the temperature range of
0 - 40 °C (briefly up to 60 °C).
` ` The device is pressure-resistant up to max. 2 bar at
20 °C.
Point out any damage in the packaging to the freight
forwarder/supplier immediately.
WARNING!
Possible electrostatic discharge. Danger of explosi-
on if combustible liquids are used.
` ` Connect the earthing terminal before use (see
accessories).
` ` Wear the necessary protective clothing.
Assembly and safe usage
CAUTION!
Possible danger of breakage.
` ` Apply only normal manual force.
` ` Do not lift the container by the stopcock.
` ` Do not suspend filling containers from the
stopcock.
HINWEIS!
When using with Buerkle Compact jerrycan remove
the PE flat gasket and insert the PE foam gasket  in
the sealing flange inside the union nut .
1. Screw the stop cock with union nut  onto the
container thread (R ¾" connecting thread).
WARNING!
Danger of bodily injury due to liquid under high
pressure escaping.
` ` The pressure in the container must not exceed 2 bar.
` ` The discharge reducing nozzle  is only
inserted, when filling with this only pressureless
operation is allowed.
