Mounting Instruction - R82 86230 Montageanweisung

Mounting instruction

Mounting tray with bowl - article no. 86230-x

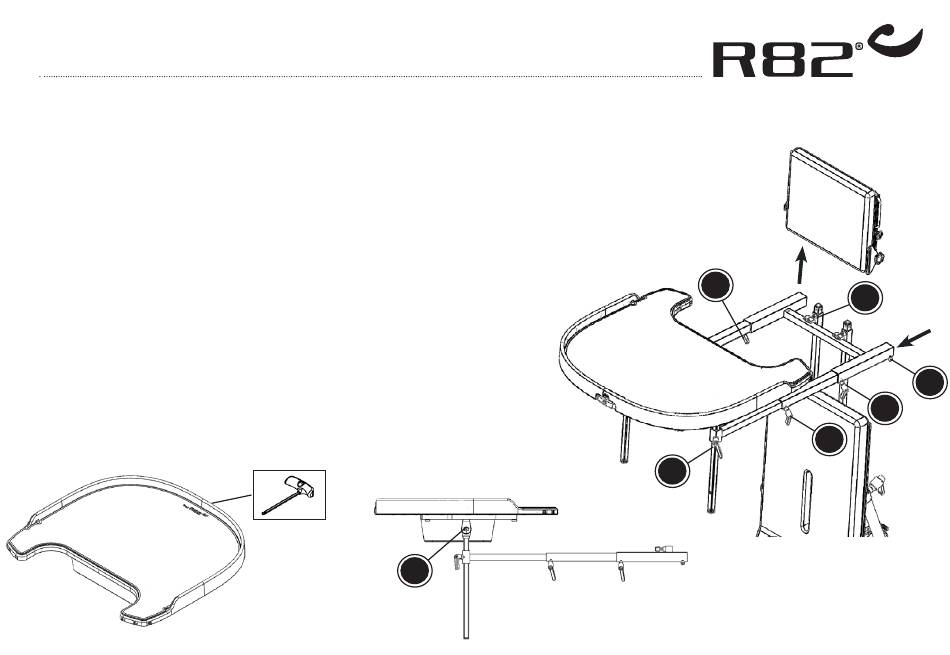

Follow the description below to mount the tray correctly.
* Start by removing the upper trunk support
* Place the tray fitting on the bars and fasten with the screws (A).
* Place the upper trunk support again.
* Place the tray bars in the fitting and fasten the handles (B).
* Loosen the handles to adjust height (B) and depth (C) and (D)
B
* Use the Allen key to loosen the screw (E) and adjust the angle
A
The table can be turned around and used for front lying users.
* Loosen handle (B) and dismount the tray
F
* Remount the tray from the opposite side and fasten the Allen key (F)
B
D
C
5 mm Allen key
E
