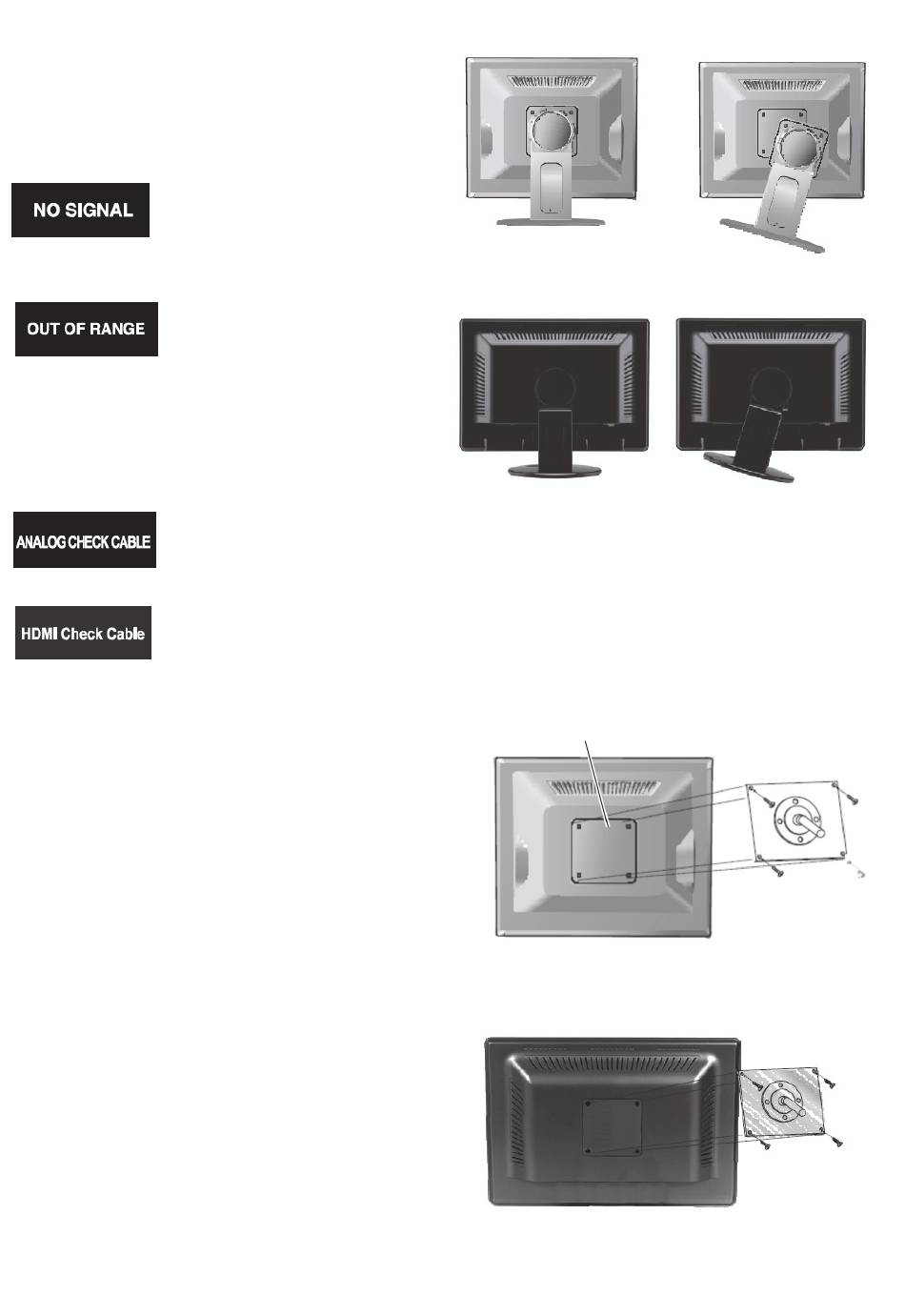

Self-diagnosis

If there is no image, the Self-Diagnosis screen will
be displayed. The self-diagnosis function checks if
the status of the monitor screen is No Signal, Out
of Range or None Supported.
No Signal screen is displayed
when the D- Sub signal
connector is connected but
the status of the monitor is on
DPMS mode.
Out of Range screen is
displayed when the applied
frequency is under or over
normal range.
Normal range (Non-interlaced
mode only):
H: 30 to 80 kHz
V: 56 to 77 Hz
Check that the cable screen
is displayed when the analog
signal cable is disconnected.
Check that the cable screen
is displayed when the HDMI
signal cable is disconnected.

Removing the monitor stand

1. Turn off the monitor and unplug the power
cable.
2. Place a cushion or a soft cloth on the floor and
put the monitor on it with the front of the monitor
facing the floor.
3. Detach the rear cover of the monitor stand with
a screwdriver.
4. Remove the four screws connecting the stand
and monitor body. See pictures below.
EN 8
TVM-1700/TVM-1900 models
TVM-2200 model

Attaching the monitor stand

Tighten the screws at the locations indicated by
arrows shown in the figures above. See pictures
below.
TVM-1700/TVM-1900 models
Monitor stand attached here
TVM-2200 model
Face of monitor
stand arm
User Manual
