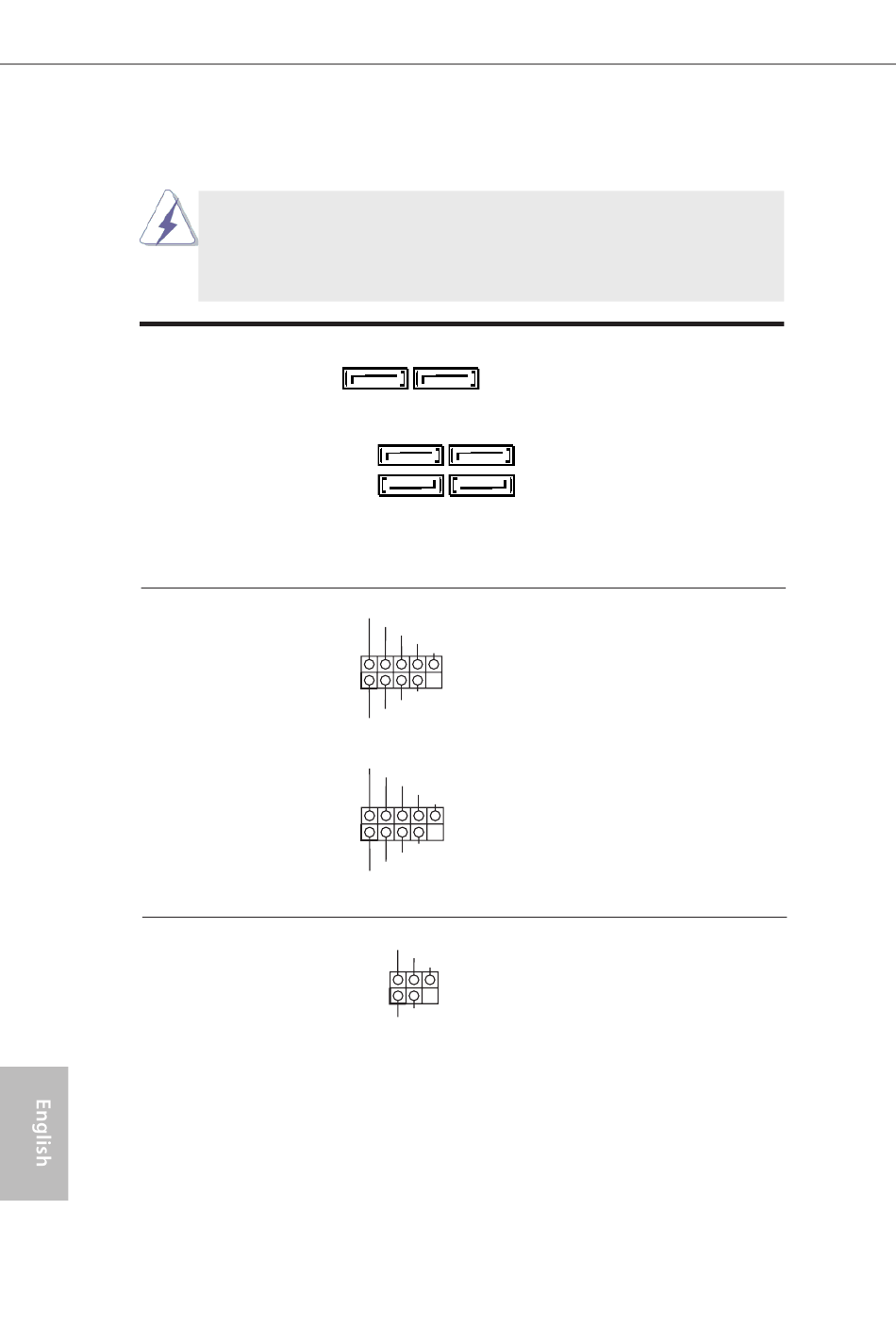

2.6 Onboard Headers and Connectors
Serial ATA2 Connectors
(SATA_1: see p.10, No. 7)
(SATA_2: see p.10, No. 6)
(SATA_3: see p.10, No. 16)
(SATA_4: see p.10, No. 13)
(SATA_5: see p.10, No. 15)
(SATA_6: see p.10, No. 14)
USB 2.0 Headers
(9-pin USB6_7)
(see p.10 No. 18)
(9-pin USB8_9)
(see p.10 No. 17)
Infrared Module Header
(5-pin IR1)
(see p.10 No. 19)
22
Onboard headers and connectors are NOT jumpers. Do NOT place
jumper caps over these headers and connectors. Placing jumper caps
over the headers and connectors will cause permanent damage of the
motherboard!
SATA_1
SATA_3
SATA_5
USB_PWR
P-
P+
GND
1
GND
P+
P-
USB_PWR
USB_PWR
P-
P+
GND
1
GND
P+
P-
USB_PWR
IRTX
+5VSB
1
GND
IRRX
These six Serial ATA2
SATA_2
(SATA2) connectors support
SATA data cables for internal
storage devices. The current
SATA_4
SATA2 interface allows up to
3.0 Gb/s data transfer rate.
SATA_6
Besides six default USB 2.0
ports on the I/O panel, there
DUMMY
are two USB 2.0 headers on
this motherboard. Each USB 2.0
header can support two USB
2.0 ports.
DUMMY
This header supports an
optional wireless transmitting
DUMMY
and receiving infrared module.
