Zivan BC1 Einbau Und Anwenderinformation Seite 17

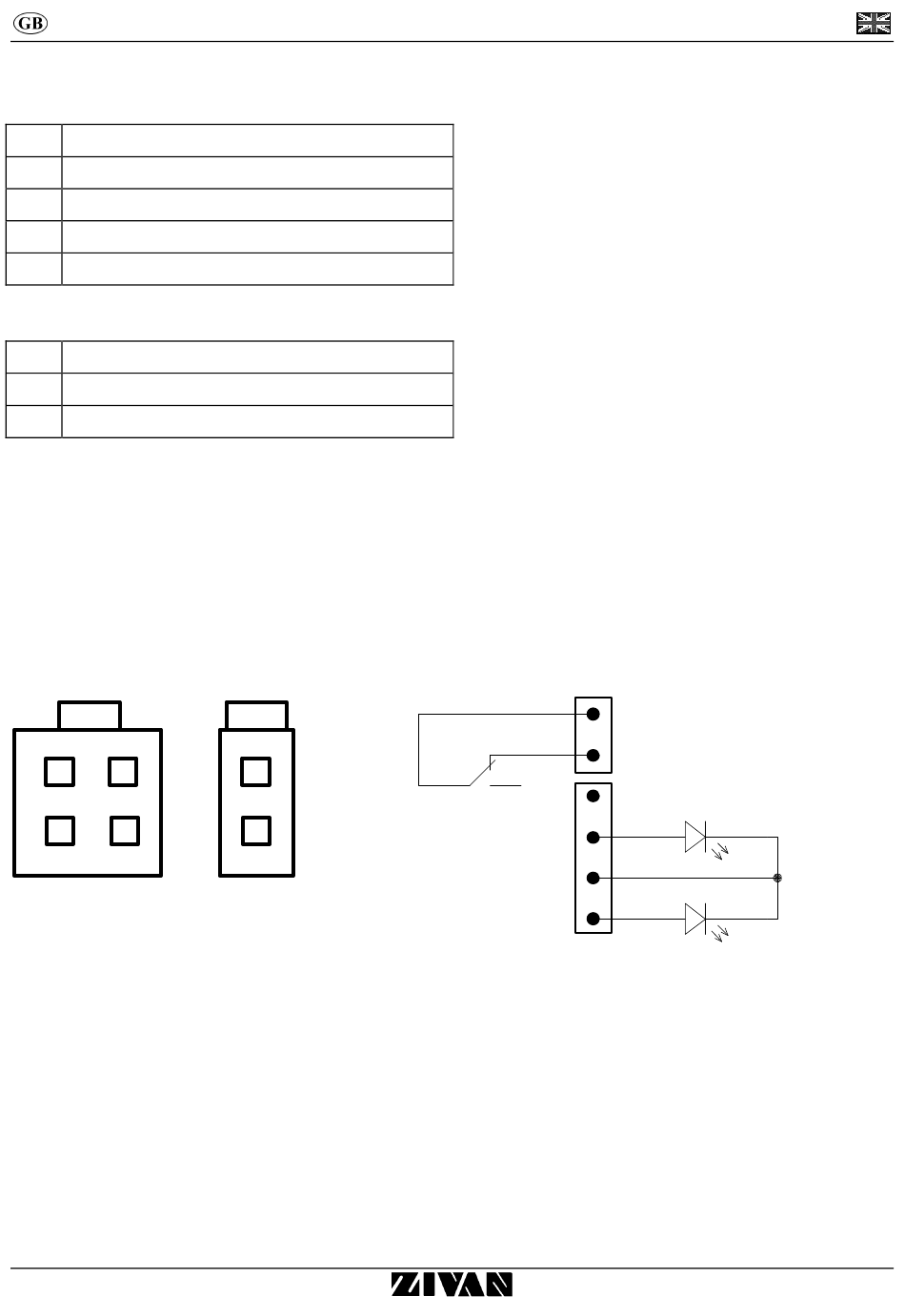

Options with connectors 4 poles and 2 poles
Connector 4 poles
Pin
1 Red LED anode
2 Not used
3 Common cathode LED
4 Green LED anode
Connector 2 poles
Pin
1 Common contact net presence
2 Normally closed contact for mains presence
Technical features:
Connector - Diagram connection
4 3
1
2
D01001-02
Battery charger BC1
Use
Use
exchange contacts
0,3A 125VAC
0,3A 110VDC
1A 30VDC
2
1
INSIDE
2
1
3
4
English
OUTSIDE
1
2
LR
LV
17
