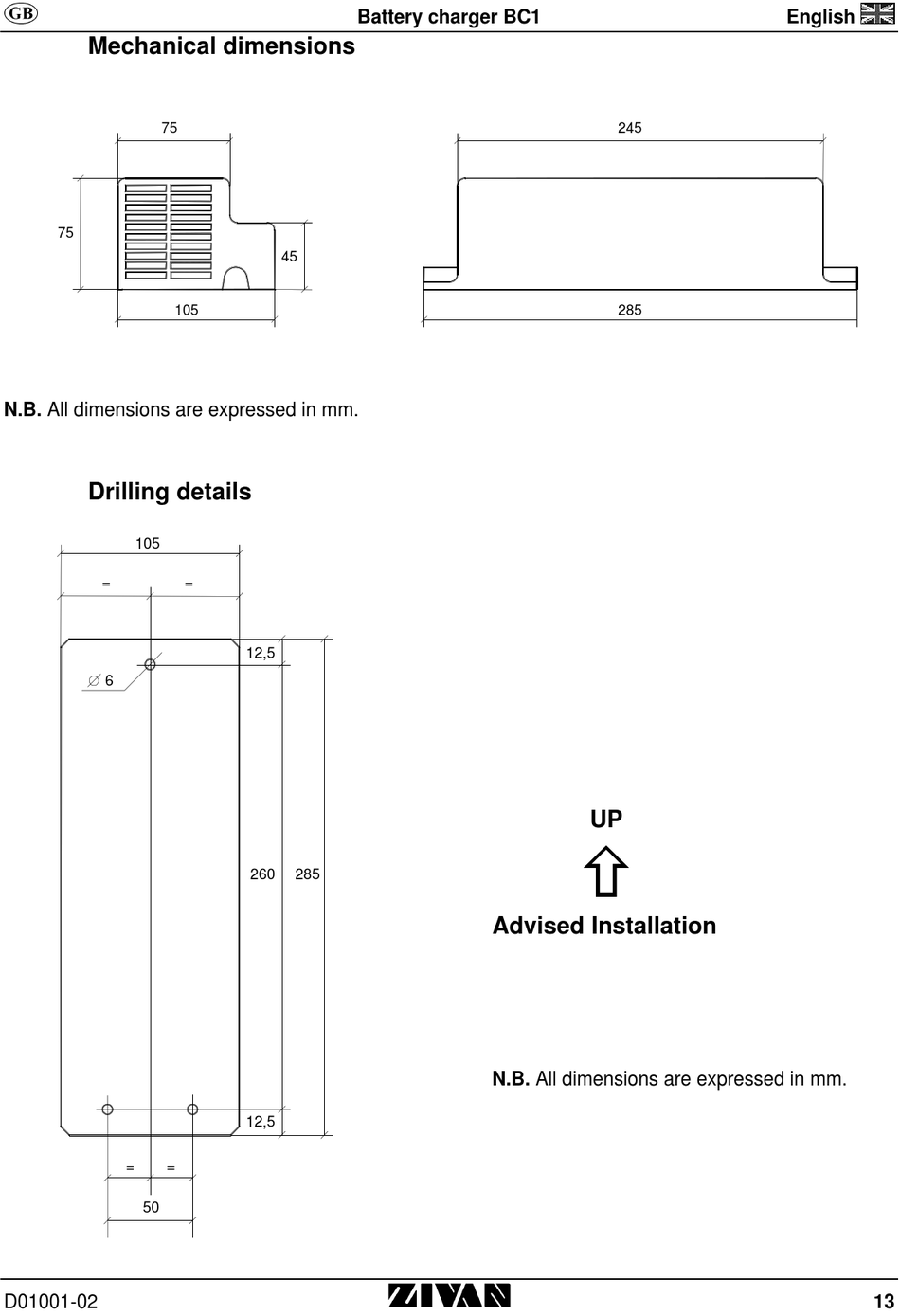

Mechanical dimensions

75
75
N.B. All dimensions are expressed in mm.
Drilling details
105
=
6
= =
50
D01001-02
45
105
=
12,5
260 285
12,5
Battery charger BC1
Advised Installation
N.B. All dimensions are expressed in mm.
245
285
UP
