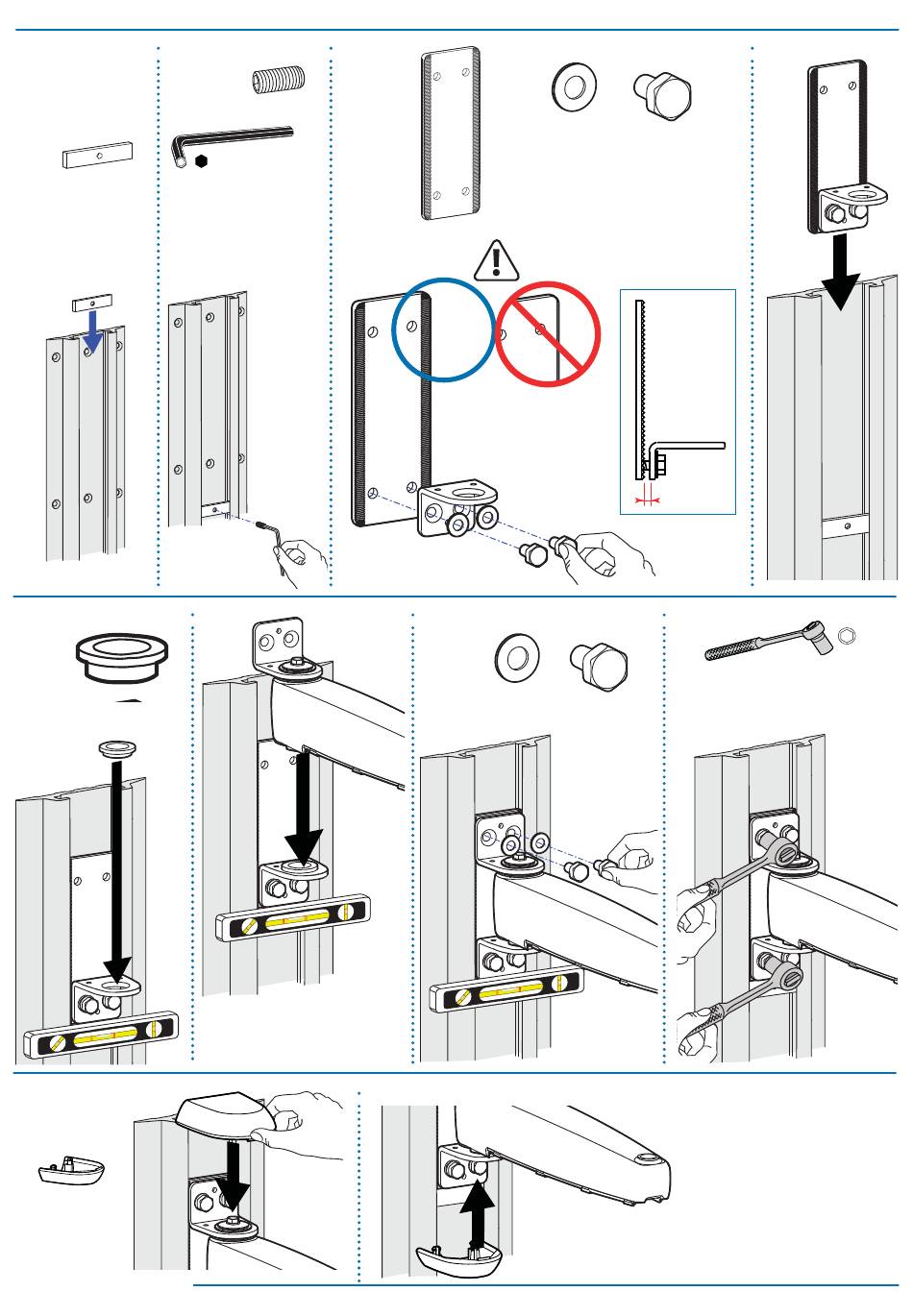

Ergotron HD Extender Arm Benutzerhandbuch Seite 5

2x
2x
2
1x
1x
a b c d
1x
3 mm
¼"
2x
1x
2x
e f g h
16 mm
Recommended Torque:
200 lbf-in (230 kgf-cm)
or greater
NOTE: Make sure
Arm is fully seated
on bottom L-Bracket.
i
2x
888-45-165-W-01rev. J • 05/10
5 of 8
