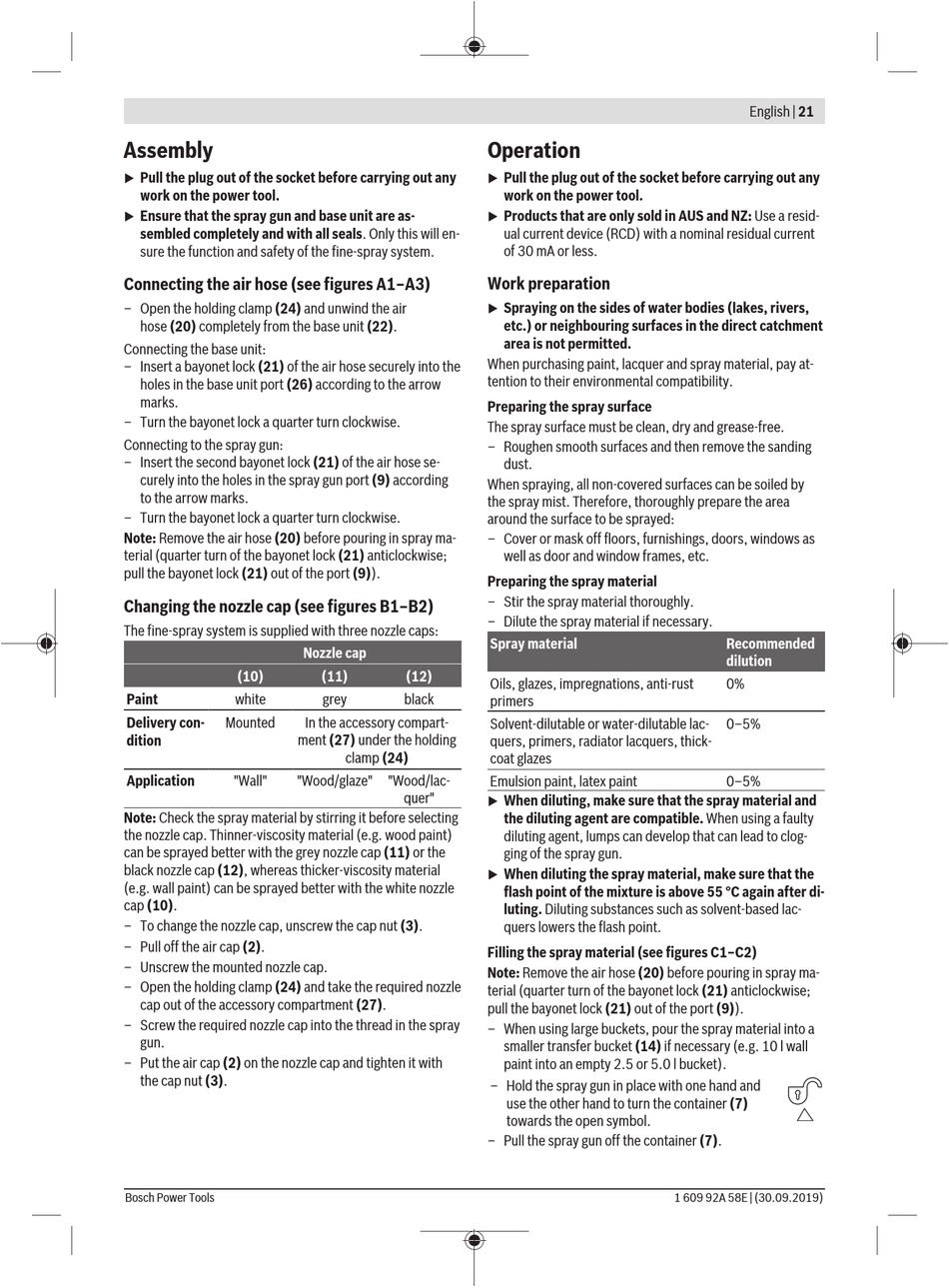

Assembly
Pull the plug out of the socket before carrying out any
u
work on the power tool.
Ensure that the spray gun and base unit are as-
u
sembled completely and with all seals. Only this will en-
sure the function and safety of the fine-spray system.
Connecting the air hose (see figures A1–A3)
– Open the holding clamp (24) and unwind the air
hose (20) completely from the base unit (22).
Connecting the base unit:
– Insert a bayonet lock (21) of the air hose securely into the
holes in the base unit port (26) according to the arrow
marks.
– Turn the bayonet lock a quarter turn clockwise.
Connecting to the spray gun:
– Insert the second bayonet lock (21) of the air hose se-
curely into the holes in the spray gun port (9) according
to the arrow marks.
– Turn the bayonet lock a quarter turn clockwise.
Note: Remove the air hose (20) before pouring in spray ma-
terial (quarter turn of the bayonet lock (21) anticlockwise;
pull the bayonet lock (21) out of the port (9)).
Changing the nozzle cap (see figures B1–B2)
The fine-spray system is supplied with three nozzle caps:
(10)
Paint white
Delivery con- Mounted
dition ment (27) under the holding
Application "Wall" "Wood/glaze"
Note: Check the spray material by stirring it before selecting
the nozzle cap. Thinner-viscosity material (e.g. wood paint)
can be sprayed better with the grey nozzle cap (11) or the
black nozzle cap (12), whereas thicker-viscosity material
(e.g. wall paint) can be sprayed better with the white nozzle
cap (10).
– To change the nozzle cap, unscrew the cap nut (3).
– Pull off the air cap (2).
– Unscrew the mounted nozzle cap.
– Open the holding clamp (24) and take the required nozzle
cap out of the accessory compartment (27).
– Screw the required nozzle cap into the thread in the spray
gun.
– Put the air cap (2) on the nozzle cap and tighten it with
the cap nut (3).
Bosch Power Tools
Nozzle cap
(11) (12)
grey black
In the accessory compart-
clamp (24)
"Wood/lac-
quer"
Operation
Pull the plug out of the socket before carrying out any
u
work on the power tool.
Products that are only sold in AUS and NZ: Use a resid-
u
ual current device (RCD) with a nominal residual current
of 30 mA or less.

Work preparation

Spraying on the sides of water bodies (lakes, rivers,
u
etc.) or neighbouring surfaces in the direct catchment
area is not permitted.
When purchasing paint, lacquer and spray material, pay at-
tention to their environmental compatibility.
Preparing the spray surface
The spray surface must be clean, dry and grease-free.
– Roughen smooth surfaces and then remove the sanding
dust.
When spraying, all non-covered surfaces can be soiled by
the spray mist. Therefore, thoroughly prepare the area
around the surface to be sprayed:
– Cover or mask off floors, furnishings, doors, windows as
well as door and window frames, etc.
Preparing the spray material
– Stir the spray material thoroughly.
– Dilute the spray material if necessary.
Spray material
Oils, glazes, impregnations, anti-rust
primers
Solvent-dilutable or water-dilutable lac-
quers, primers, radiator lacquers, thick-
coat glazes
Emulsion paint, latex paint
When diluting, make sure that the spray material and
u
the diluting agent are compatible. When using a faulty
diluting agent, lumps can develop that can lead to clog-
ging of the spray gun.
When diluting the spray material, make sure that the
u
flash point of the mixture is above 55 °C again after di-
luting. Diluting substances such as solvent-based lac-
quers lowers the flash point.
Filling the spray material (see figures C1–C2)
Note: Remove the air hose (20) before pouring in spray ma-
terial (quarter turn of the bayonet lock (21) anticlockwise;
pull the bayonet lock (21) out of the port (9)).
– When using large buckets, pour the spray material into a
smaller transfer bucket (14) if necessary (e.g. 10 l wall
paint into an empty 2.5 or 5.0 l bucket).
– Hold the spray gun in place with one hand and
use the other hand to turn the container (7)
towards the open symbol.
– Pull the spray gun off the container (7).
English | 21
Recommended
dilution
0%
0–5%
0–5%
