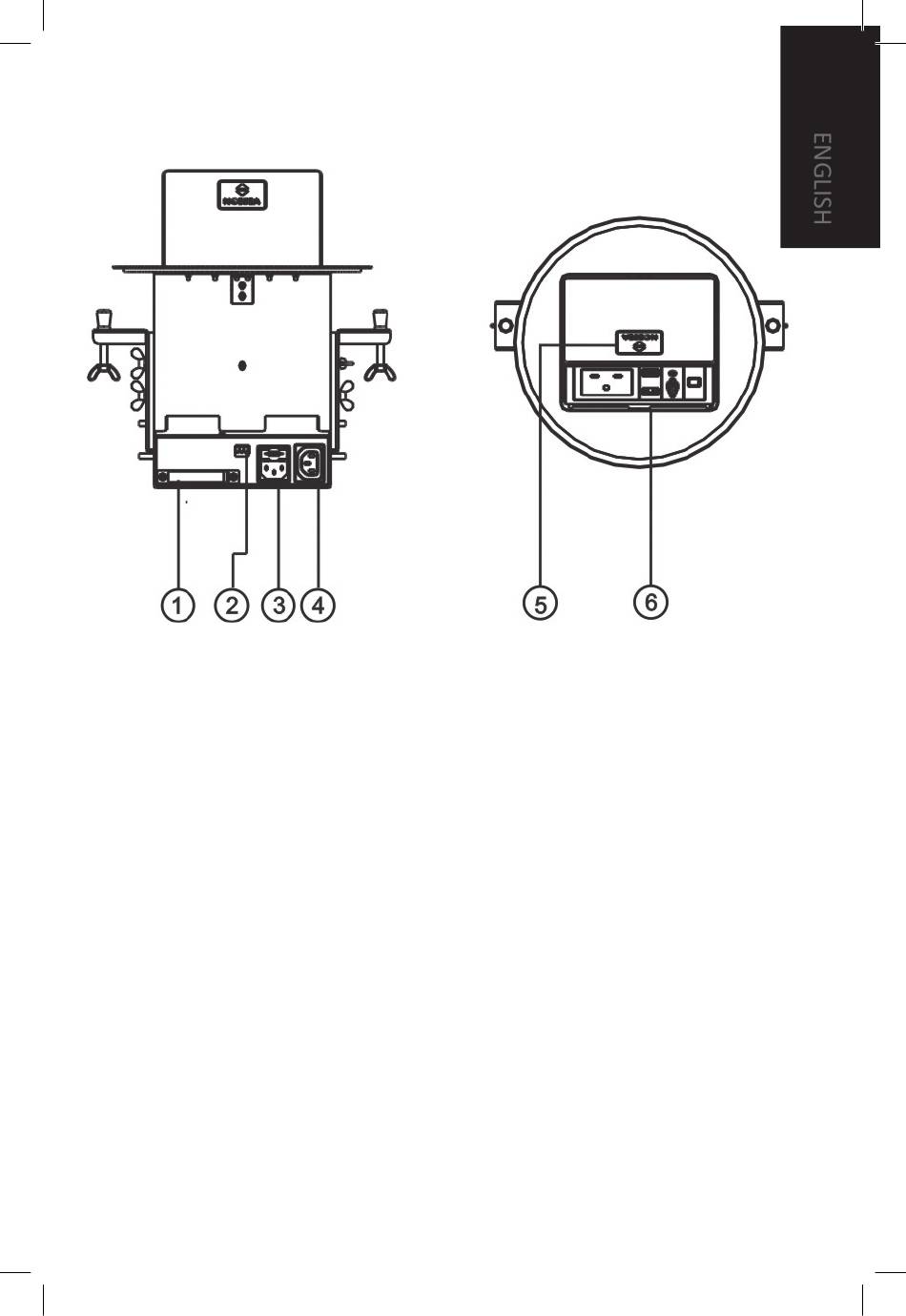

CHASSIS LAYoUT

1. Cable management Clip
2. motor Control Socket
3. 220V AC Power output Socket
(provides loop-through power to the
module on the faceplate)
4. 220V AC Power Input socket
5. UP/DoWN Touch-sensitive Button
6. faceplate
