6 Assembling and installing

The assembly and installation must be
performed only by skilled personnel.

6.1 Installation

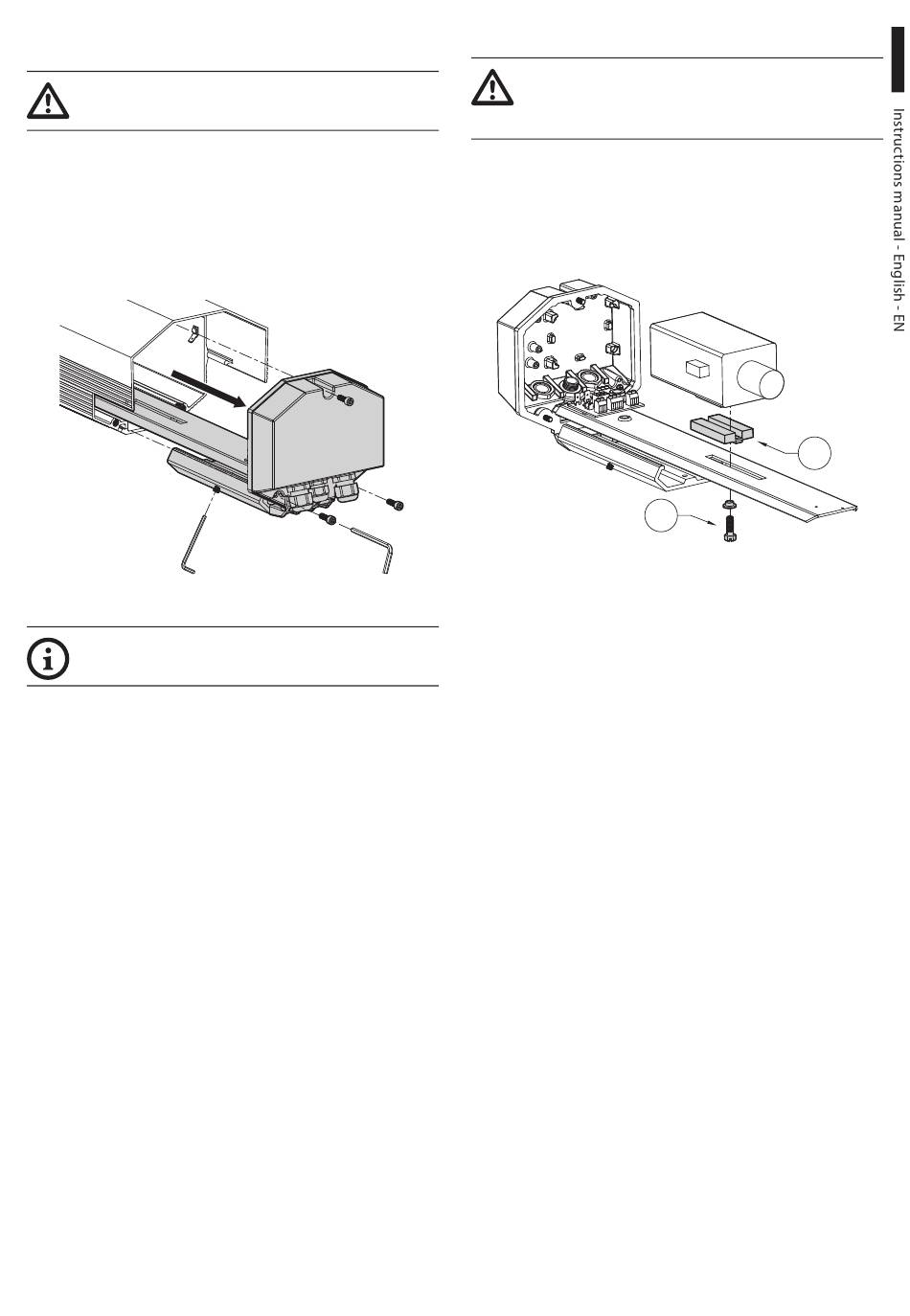

6.1.1 How to open the housing

Unscrew the screws on the rear cover plate and
loosen the 2 dowels on the outer slide. Slide out the
housing body.
Fig. 1
At the end of istallation and cabling
operations close the housing.
MNVCHEG_1511_EN

6.1.2 How to install the camera

Power supply can be provided by the board
supplied with the product. Make sure the
voltage values are appropriate.
Open the housing as described previously (6.1.1 How
to open the housing, page 5).
Fasten the camera with the 1/4" screw (01). To
position the camera and lens correctly, if necessary,
use the supplied spacers. (02).
Fig. 2
Remove the conductors protective sheathing and
connect them to terminal (camera power supply,
6.1.3 Board description, page 6).
The camera's power supply cable conductors must be
tied up with a cable tie next to the terminal. Keep the
signalling and power supply cables separated from
each other.
Reposition the internal slide and tighten the screws
that had been loosened previously.
02
01
5
