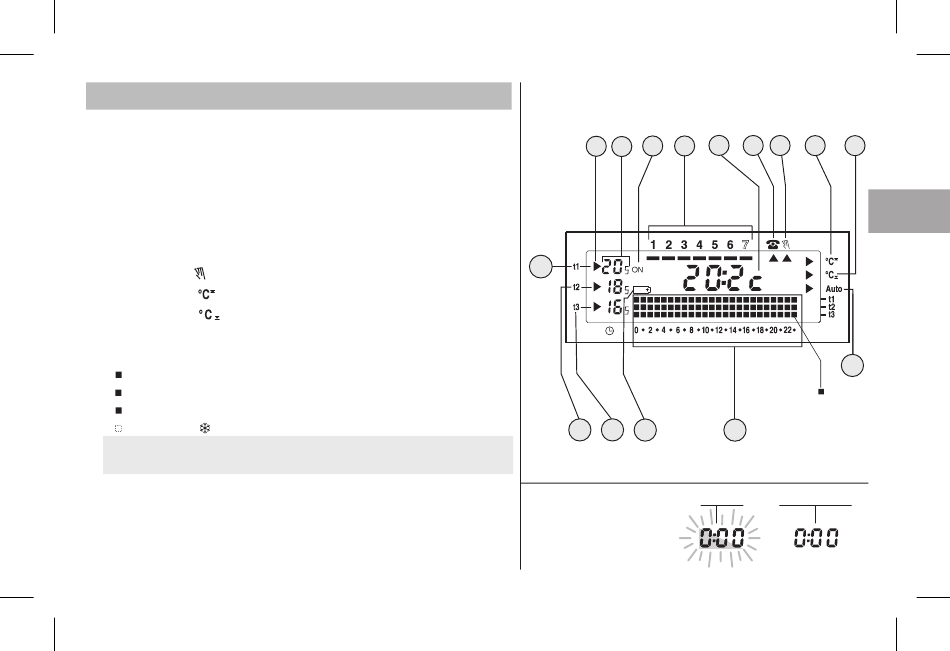

3 - DISPLAY INDICATORS LEGEND
1)
Reference temperature indicator
2)
Displays the set temperature (in grades of 0.5 °C)
3)
Connected device is on (e.g. Boiler)
4)
Days of the week (e.g. 3 = Wednesday)
5)
Current time or temperature
6)
Activated via telephone programmer
7)
Manual mode
8)
WINTER mode
(heating)
9)
Summer mode
(air-conditioning-cooling)
10)
Intelligent mode indicator
11)
24-hour temperature range:
upper digits =
t1: Comfort
intermediate digits =
t2: Working
lower digits =
t3: Economy
no digits =
t
: Anti-freeze
2 digits (one above the other) are equivalent to
operation for each type of temperature denoted by the two digits.
12)
Low battery indicator
(replace the batteries within 30 days)
13)
Economy
t3
temperature setting
14)
Working
t2
temperature setting
temperature setting
15)
Comfort
t1
temperature
temperature
(pre-comfort)
temperature
(energy saving)
temperature
5 °C
HALF-HOUR
(½ h)
(energy saving)
(precomfort)
Fig. 11
1 2
3
4
15
13
14
12
Blinking
N.B.: the following
convection has been
used in the instruction
illustrations:
5
9
6
7
8
G
B
10
digit
Note: in normal operating
circumstances, the
11
blinking digit of the
c h r o n o t h e r m o s t a t
indicates the current time
setting.
Constantly lit
29
