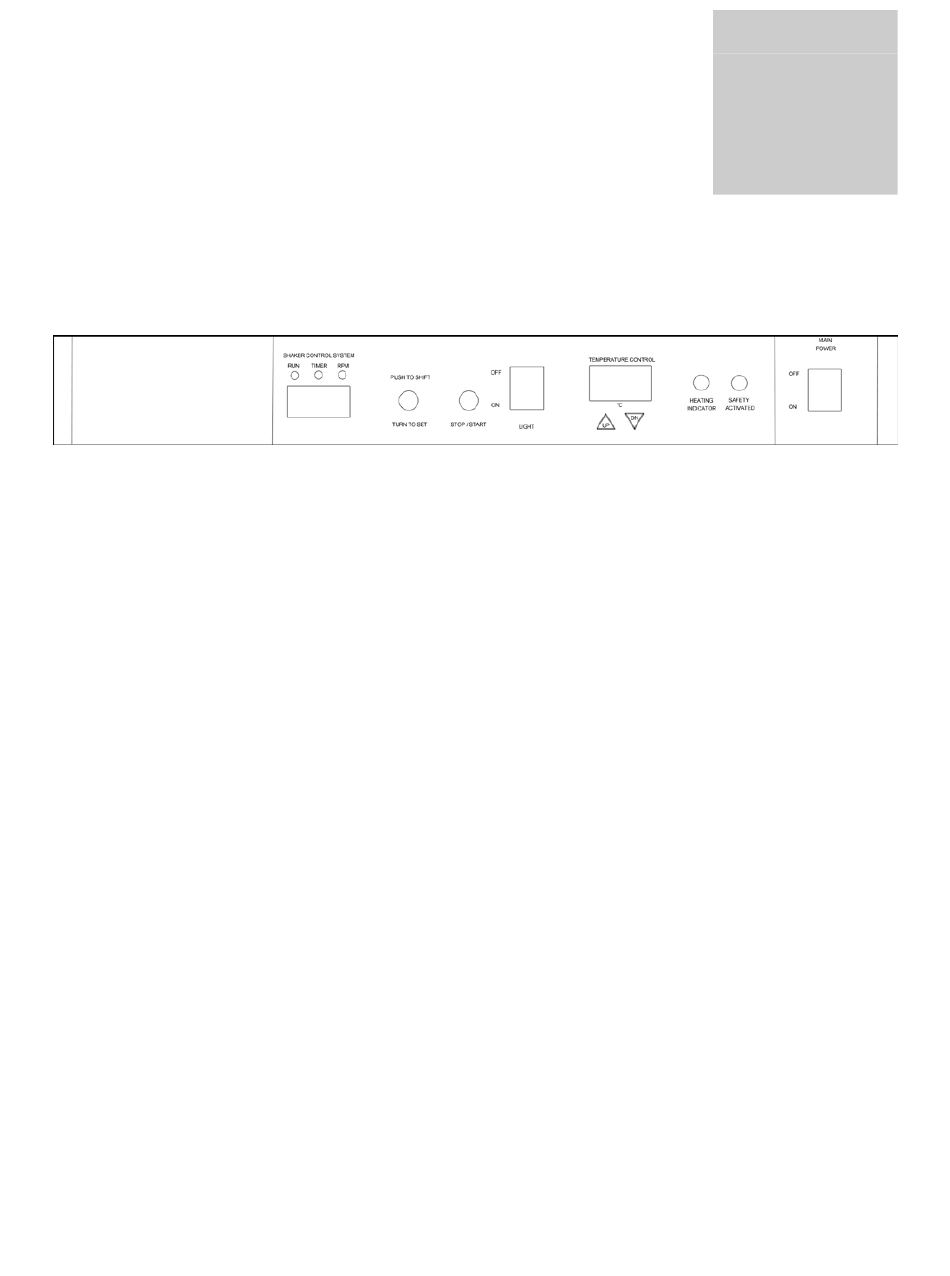

CONTROLS OVERVIEW

From left to right
6.1 SHAKER CONTROL SYSTEM:
Run green signal light: lit when shaker is running.
Time yellow signal light: lit when the shaker is set on time function.
RPM yellow signal light: lit when the shaker is set on rpm function.
6.2 Control Knob (Push to Shift / Turn to Set): by rotating the control knob right (+) or
left (-) you can change the TIME or RPM. Push the control knob to switch between
TIME and RPM values. If you rotate knob fast then the values go up or down on
display very quickly.
6.3 Start / Stop button: Press to start or stop operation.
6.4 Light Switch: On turns internal light on.
6.5 Temperature Control: This control consists of the digital display and Up/Down
buttons for inputting set point temperatures and calibration.
6.6 Heating Indicator: When light is on incubator is heating
6.7 Safety Activated: This pilot light comes ON when the Safety Thermostat is
activated. Under normal operating conditions this pilot light should never be on.
6.8 Power Switch: The main power ON/OFF switch controls all power to the unit. It
must be on before any systems are operational. The green switch will be lighted
when ON.
