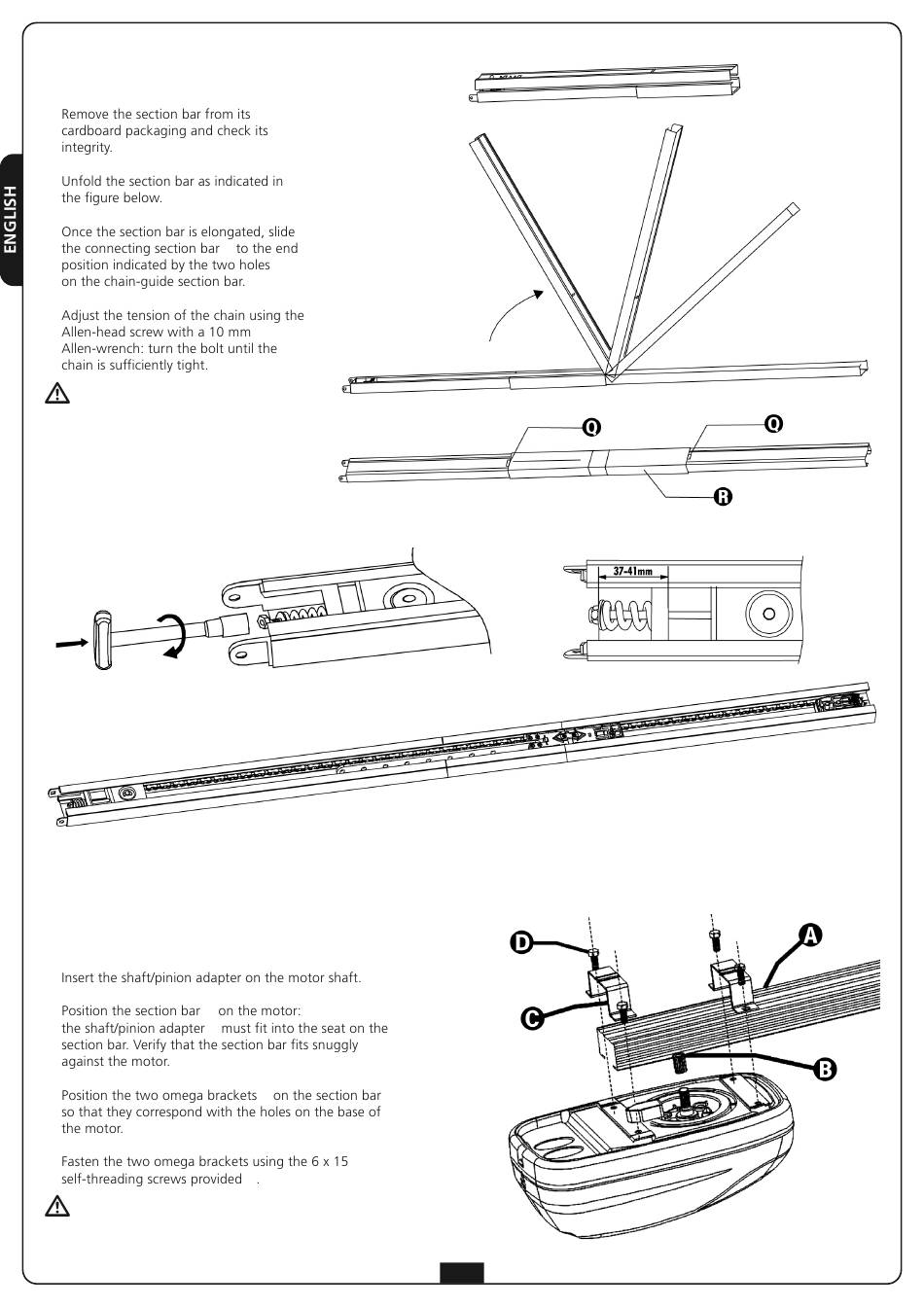

INSTALLATION OF GUIDE
SECTION BAR
1.
2.
3.
4.
CAUTION: Make certain that the
draw slide slides freely along the entire
length of the guide. Eliminate any
friction prior to proceeding with the
next phases of installation.
INSTALLATION OF MOTOR
ON SECTION BAR
1.
2. A
B
3.
4.
In case of lack of space, the motor can be
mounted rotated of 90°
R
Q
C
D
