Screen Research T-FCIN1 Installationsanleitung Seite 26

Manual

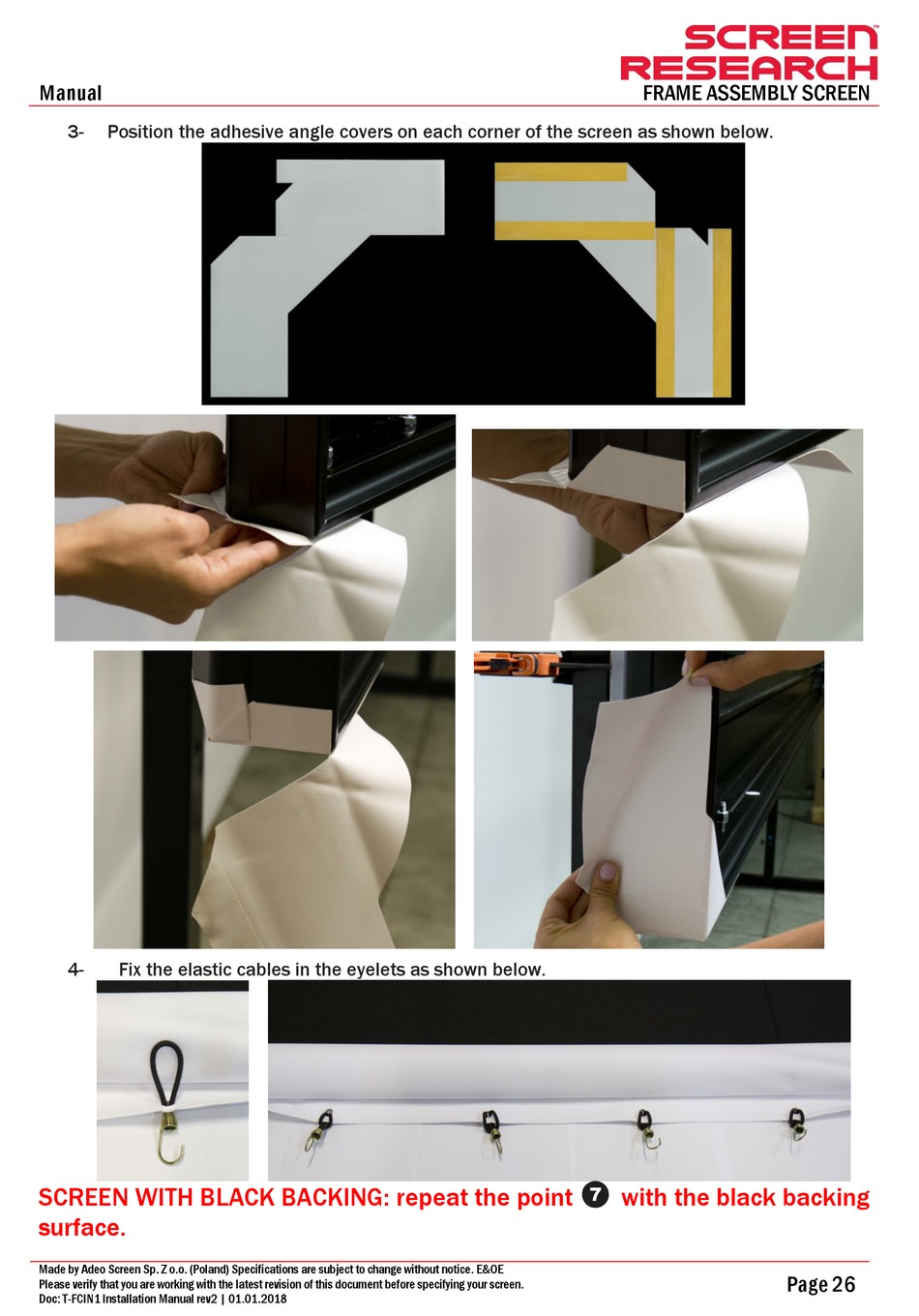

3- Position the adhesive angle covers on each corner of the screen as shown below.
4- Fix the elastic cables in the eyelets as shown below.
SCREEN WITH BLACK BACKING: repeat the point
surface.
Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE
Please verify that you are working with the latest revision of this document before specifying your screen.
Doc: T-FCIN1 Installation Manual rev2 | 01.01.2018
FRAME ASSEMBLY SCREEN
7
with the black backing
Page 26
