Instrukcja montażu ekranów ramowego
2

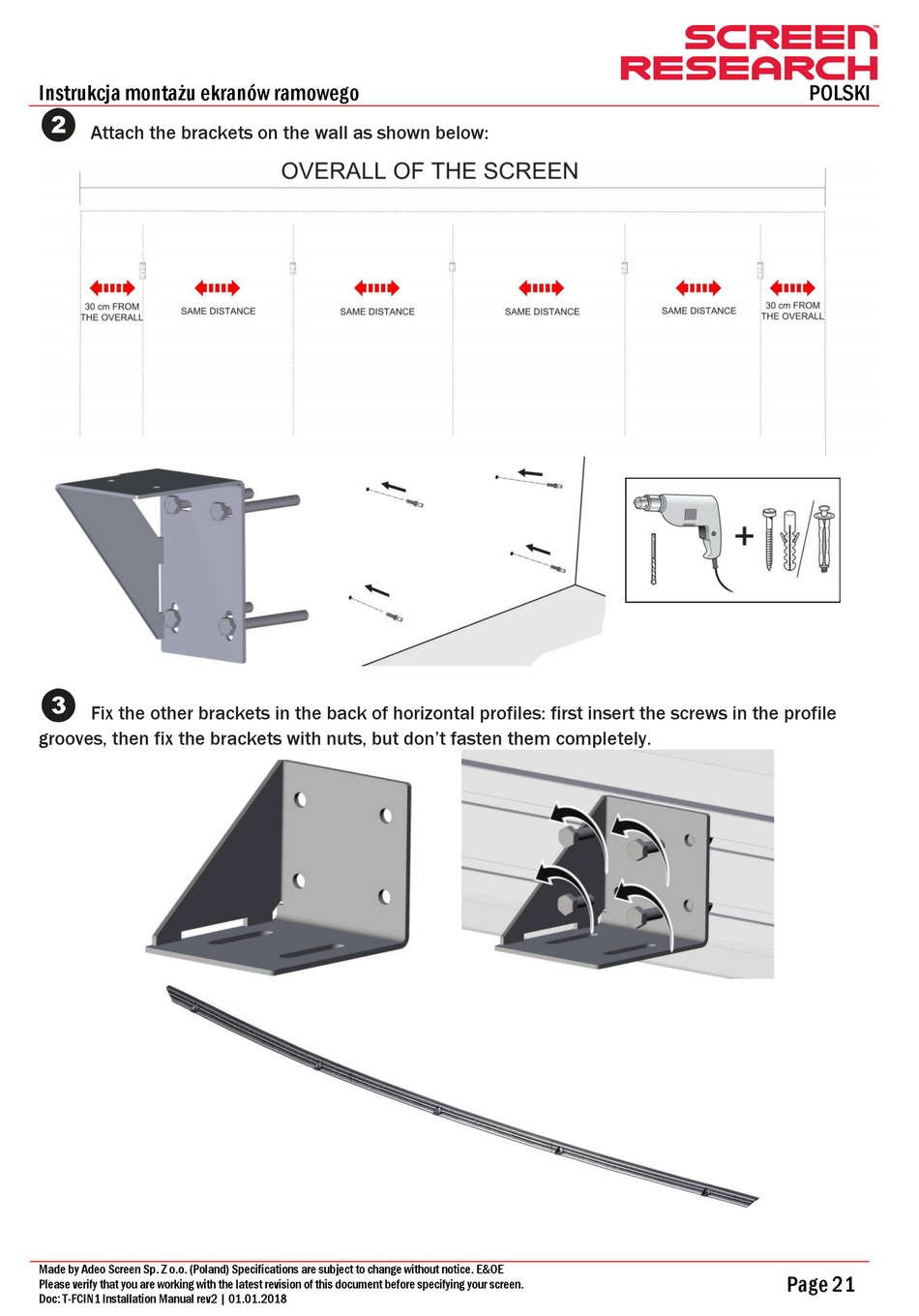

Attach the brackets on the wall as shown below:
3
Fix the other brackets in the back of horizontal profiles: first insert the screws in the profile
grooves, then fix the brackets with nuts, but don't fasten them completely.
Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE
Please verify that you are working with the latest revision of this document before specifying your screen.
Doc: T-FCIN1 Installation Manual rev2 | 01.01.2018
POLSKI
Page 21
