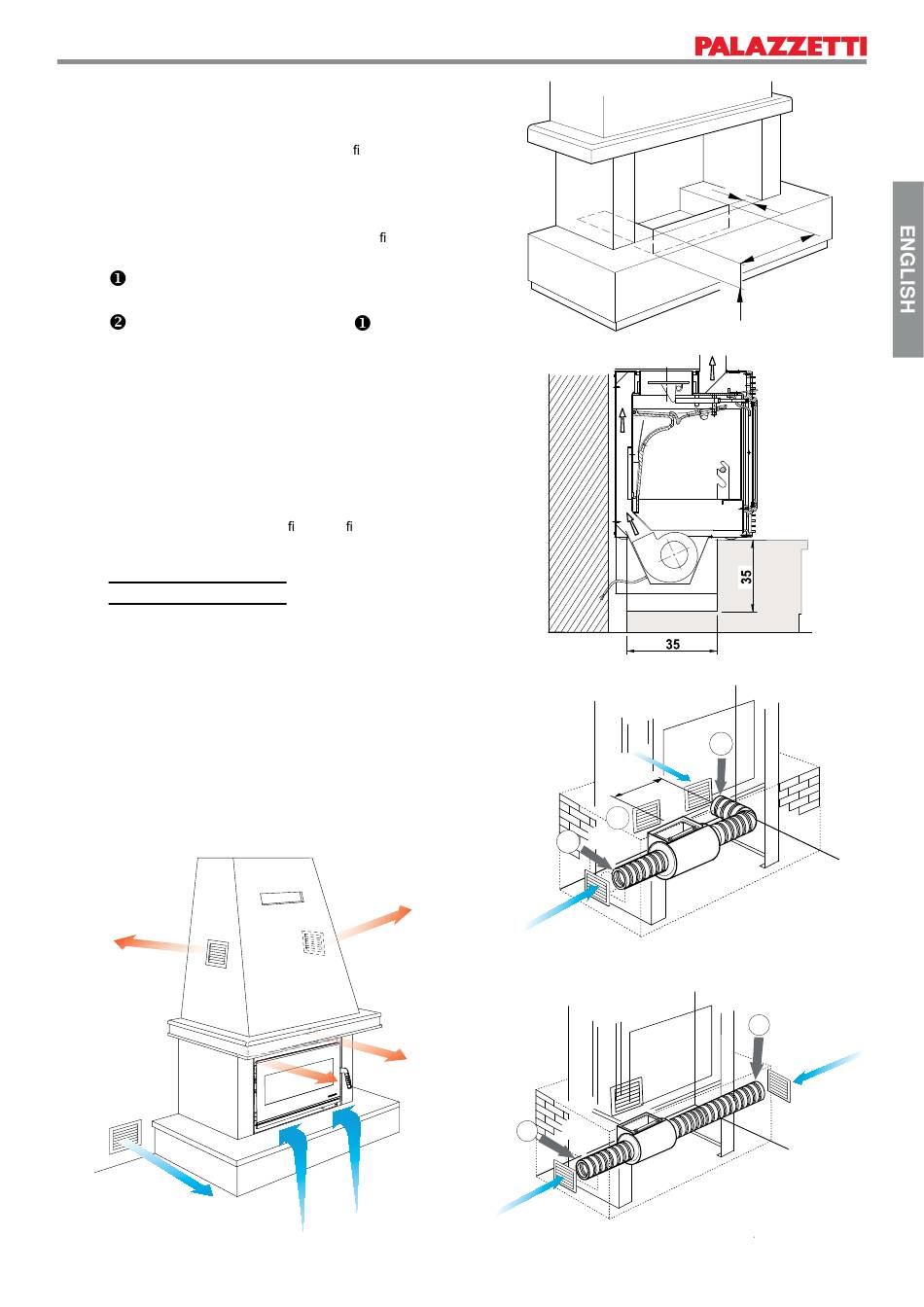

5.4.3 Housing with optional ventilation kit 680 m
For existing wood inserts, there must be a compartment
under the wood insert base to house the fan. Its
dimensions must be as indicated in the gure
(Fig. 5.5 - 5.5.1)
5.4.4 Air intakes with optional ventilation kit 680 m³/h.
In addition to the combustion air intake ("C" - g. 5.6), the
following air intakes must be provided for the fan:
Room air intake to heating circuit fan, located laterally
to the cladding (diameter 15 cm) with grille.
Room air intake (connected as (
alternatively connected to an adjacent room (with the
exception of the bathroom, kitchen, bedroom) (diameter
15 cm) with grille (-5.7-).
Depending on the solution adopted, during the dry test
installation it is advisable to mark the position of the air
intakes on both the cladding and the external wall.
• The fan air intakes can be provided with an adjustable
closure shutter, and must be equipped with anti-insect
screens.
• It is indispensable to clean lters or ne mesh grilles
periodically because they may become clogged.
6

AIR CIRCULATION

There are three possible solutions to hot air
circulation
:
• NATURAL CIRCULATION (STANDARD)
(supplied with the machine)
• NATURAL CIRCULATION WITH HOOD
(with the Natural ventilation with hood kit)
• FORCED CIRCULATION WITH HOOD
With the Centrifugal fan with adjustment unit kit and
Ventilation with hood kit.
INSTALLATION
3
/h
(-5.6-)), or
00 477 0152 -04/2017 - PALAZZETTI - PN - I
>50 cm
C
A
C
TALY
10
>50
>35
- 5.5 -
F . 5.5.1
IG
B
- 5.6 -
D
- 5.7 -
35
