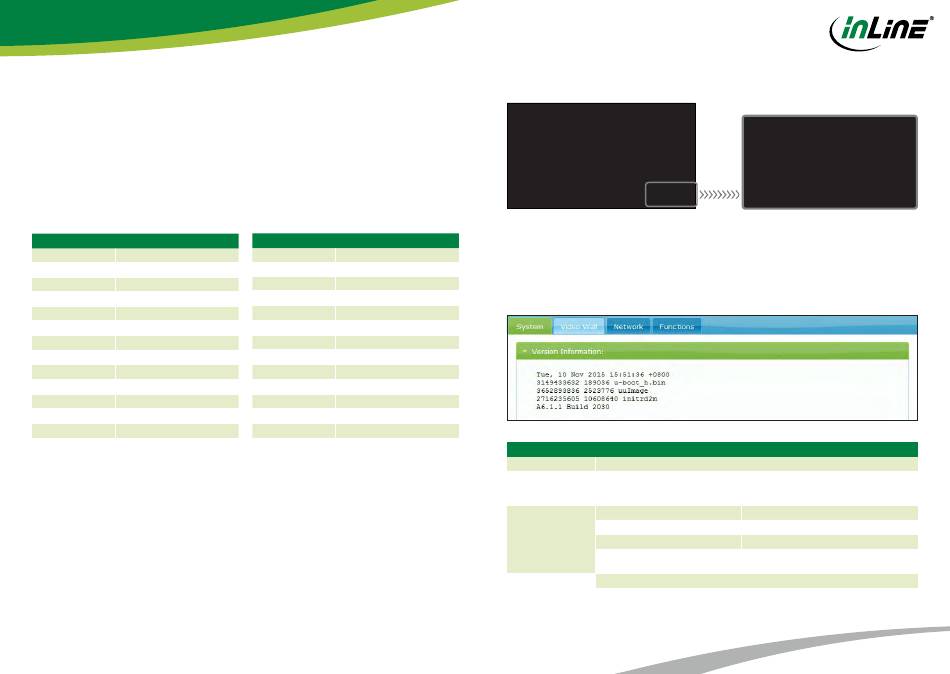

13. SUPPORTED FORMAT

The tables below show the supported audio output and video resolutions. If there are any problems with no image or abnor-
mal display, suggest using a standard display mode from the list.
A. AUDIO FORMAT
Dolby: Dolby Digital 5.1 ch/Dolby Digital Plus/Dolby Digital Pro-Logic/Dolby TrueHD/Dolby Atmos
DTS: DTS 5.1 ch/DTS 96/24/DTS-ES Discrete/DTS-ES Matrix/DTS-HD High Resolution Audio/DTS-HD Master Audio/DTS:X
Linear PCM:
Linear PCM 2 ch 44.1 kHz/88.2 kHz/176.4 kHz/32 kHz/48 kHz/96 kHz/192 kHz/44.1 kHz/88.2 kHz
Linear PCM 5.1 ch 176.4 kHz/32 kHz/48 kHz/96 kHz/192 kHz
Linear PCM 6.1 ch 44.1 kHz/88.2 kHz/176.4 kHz/32 kHz/48 kHz/96 kHz/192 kHz
Linear PCM 7.1 ch 44.1 kHz/88.2 kHz/176.4 kHz/32 kHz/48 kHz/96 kHz/192 kHz
B. VIDEO FORMAT
Resolution Refresh rates (HZ)
640x480 50/59/60/72/75
720x480 (720P) 56/59/60/72/75
720x576 (576P) 50/60/70/72/75
800X600 56/60/70/72/75
1024X768 60/70/72/75
50/69/60/75
1152X864
1280x600 50/59/60
1280X720 (720P) 50/59/60/75
1280X768 50/59/60/75
1280X800 50/59/60/75
1280X960 50/59/60
1280X1024 50/59/60/75
50/59/60/75
1360x768
1366x768 50/59/60/75
* Supports only YUV420 input and output. The output will be downscaled to YUV420 if the image source is YUV422 inputted.
** 2160@60Hz is only supported at the input.

14. WEB MANAGEMENT

This extender provides a web-based interface that user can access and configure easily. Refer to the PC connection dia-
gram to connect a PC to the network before starting the web management.

15. IP DETECTION

To check the IP of transmitter or receiver, press the CONNECT button on the front panel of receiver to disconnect the
connection between transmitter and receiver, then the IP address will appear on the bottom-right corner of screen.
10
Resolution Refresh rates (HZ)
1440X1050 50/59/60
1440X900 50/59/60/70/75
1600x900 50/59/60
1600x1024 59/60
50/60
1600X1200
1680x1050 59/60
1920X1080i 25/29/30
1920X1080 (1080P) 50/59/60
1920X1200 50/60
2560x1080* 24/25/30/60
2560x1200* 30/60
60
2560x1600*
3840x2160* 24/25/30/60**
4096x2160 * 24/25/30/60**
FW: Firmware version
Remote IP: Receiver's IP address
FW: 16-Apr-11 b998
Press the link button to connect
Local IP: 169.254.2.66
Note: The IP address will be changed when replugging the power adapter of the unit (transmitter/receiver). Once it happens,
please repeat the steps above to detect the IP again.

16. SYSTEM

Once you have connected to a PC and detected the IP address of target unit, open a browser and then enter the IP address
to access.
Click Apply once the settings have been changed.
Item Option
Version information Display the information of unit.
Update Firmware Update the firmware. Click Browse to select the firmware file and click Upload to upgrade.
The browser will be reloaded after updating. Please contact the technical support if you have
problem to upload.
Utilities Factory Default
Reboot
Reset EDID to Default Value
Console API Command
Statistics Display the information of network.
info@inline-info.com
Local IP: Transmitter's IP address
ID: Receiver's identification
FW: 16-Apr-11 b998
Local IP: 169.254.2.66
Remote IP: 169.254.2.156
ID: xxxxxxxxxx2c
Description
Restore to the factory default settings.
Restart the system.
Reset EDID to factory default setting.
Refer to the manufacture FAE or technical support
If you don't know what console command is.
