TRANSMISSION GUIDE ASSEMBLY

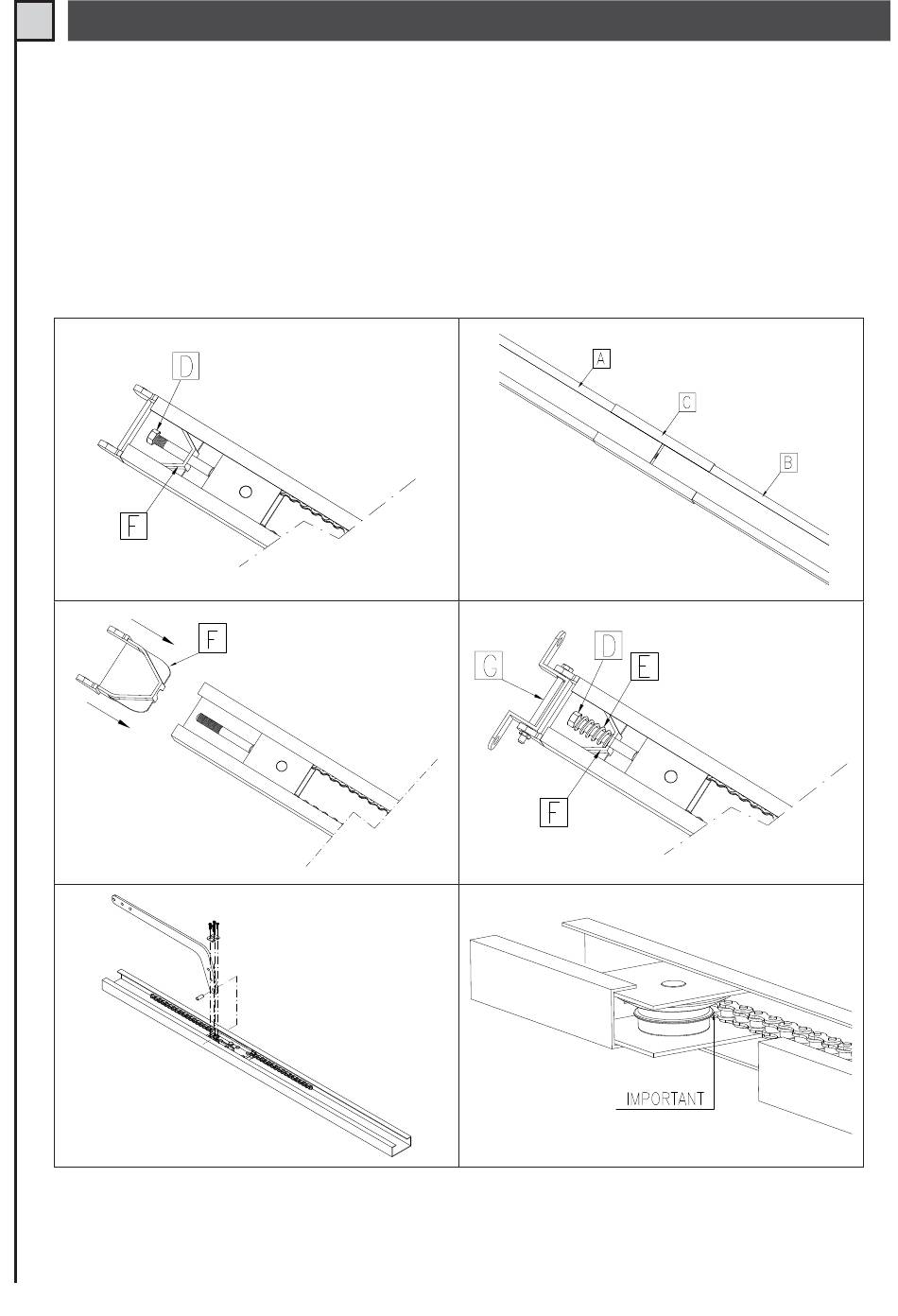

In the case of 1060mm or 1600mm modular profiles, assemble the guide as specified in the procedure.
- Prepare an adequate area to hold the entire guide.
- Loosen nut D and remove the drive support F (fig. 2)
- Rotate the assembled guides with chain/belt to form a single profile.
- Join guides A-B by means of connection profile C (fig. 3).
- Insert part F in the guide (fig. 4)
- Insert spring E and lock by means of relative nut D. Then fit part G with screw and M8 nut (fig. 5)
- Fit the drive arm (fig. 6)
- Tighten nut D to tension the chain (belt).
Fig. 2
Fig. 4
Fig. 6
Caution! On completion of automation assembly, check correct tension of the chain (belt) ATT. fig.6A.
If the chain is loose when the door is closed, adjust nut D.
Fig. 3
Fig. 5
Fig. 6A
