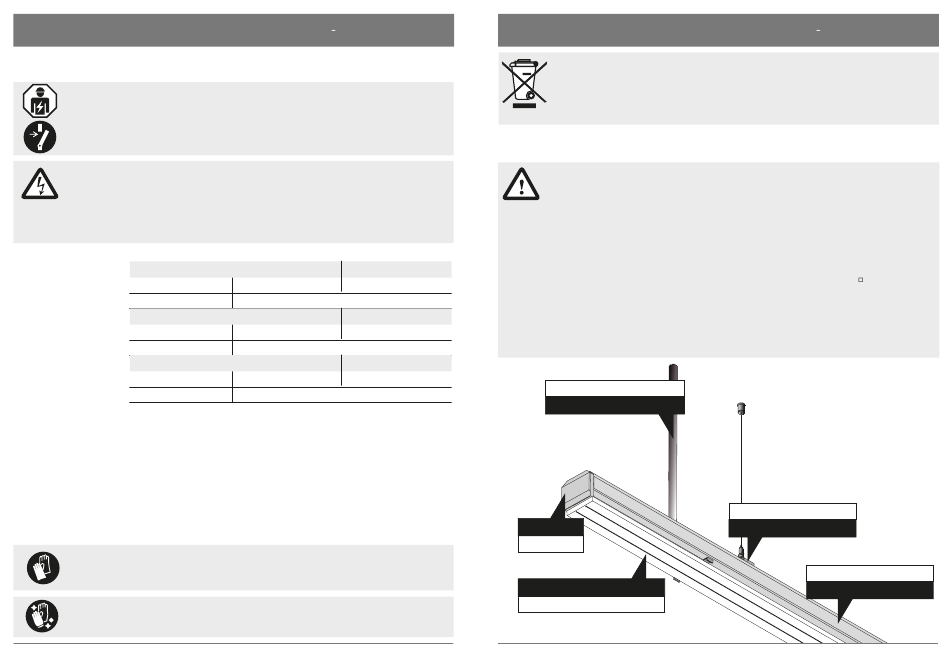

E SAFETY NOTES
For your own safety, read all instructions and mounting steps carefully.
Keep the instructions for maintenance or disassembly work.
The electrical connection must be carried out by professional personnel trained
and authorised for this purpose.
WARNING - risk of electric shock!
• Never work on the luminaire with voltage applied.
The light source of this luminaire shall only be replaced by the manufacturer or
a service technician authorised by the manufacturer or a comparably qualified
person.
WARNING - risk of electric shock!
• If the light source malfunctions or fails, please contact TRILUX.
• LED module risk group 0
7651Fi...L75
50000h
≤4000lm
7651Fi...L150
50000h
≤8000lm
7651Fi...L225
50000h
≤12000lm
• All other types of LED module risk group 1
Important information on electronic control gear units (ECG)
• A neutral conductor interruption in the three-phase circuit leads to overvoltage damage
in the lighting system. Only open the neutral conductor isolating terminal in de-energised
state, and close the neutral conductor isolating terminal before switching on again.
• Do not exceed the maximum permissible ambient temperature t a of the luminaire. Excee-
ding this limit reduces the service life and in extreme cases there is a risk of premature
failure of the luminaire.
• Design connection cables for the control inputs of dimmable ECGs (1-10 V, DALI etc.) to be
230 V mains voltage-proof (basic insulation).
Avoidance of cutting injuries
• Install the luminaire components using protective gloves.
Avoidance of contamination
• Wear clean installation gloves.
04 / 60
E LINE NEXT FIX
70000h CRI>90(HE)
≤3500lm
70000h CRI>80(HE)
≤4000lm
70000h CRI>90(HE)
≤7500lm
70000h CRI>80(HE)
≤9000lm
70000h CRI>90(HE)
≤11000lm
70000h CRI>80(HE)
≤13000lm
10184224 / X19 / ©trilux.com
E SAFETY NOTES
Disposal of waste electrical and electronic equipment
• Always collect and dispose of old electrical and electronic equipment separately
at the end of its service life. In case of doubt, seek information about environ-
mentally-compliant waste disposal from your local district authority or special
waste disposal companies.
• For important information on the energy efficiency of TRILUX luminaires and on maintaining
and disposing of luminaires, see the Internet at: www.trilux.com/ec245
INTENDED USE
• The continuous line 765.Fi... consists of:
Suspension accessories
Trunking
End caps
Gear tray
• The continuous line 765.Fi... is intended for indoor use. The permissible ambient
temperature t a depends on the gear trays used.
• Suitable for mains through-wiring. Max. total current 16 A at 2.5 .
• Not suitable for corrosive atmospheres
(e.g. swimming pools, intensive animal husbandry, tunnels)
• Protection rating: IP20
• Safety class: I
Pages 30 - 33
Electrical connection
End cap
Page 31
Gear tray 7651Fi...
Pages 48 - 59
10184224 / X 19 / ©trilux.com
E LINE NEXT FIX
07650Fi...
07650Fi KS...
7651Fi...
Pages 16 - 25
Suspension accessories
Pages 18 - 38
Seite 18 - 33
Trunking 07650Fi...
05 / 60
