Tools needed:
1.5mm hex wrench

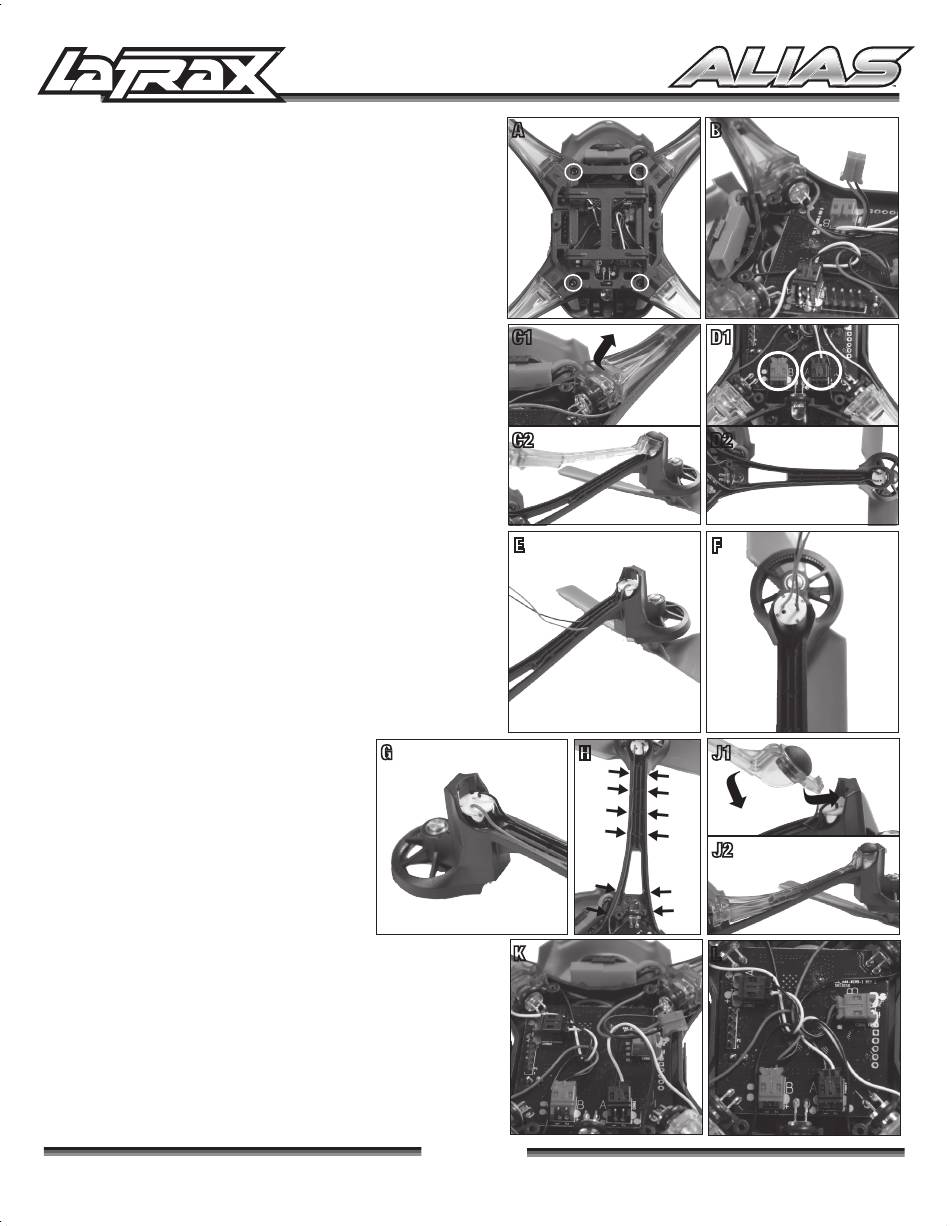

Motor Replacement
1. Remove the battery from the helicopter.
2. Remove the 1.6x5 BCS (4) from the lower main frame using the 1.5mm hex
wrench (A). Remove the lower main frame.
3. GENTLY unplug each damaged motor from the receiver circuit board (B).
Do not bend the supporting LEDs or move the receiver circuit board.
4. Pull up on the end of the LED lenses to remove the lenses from the arms
(C1, C2).
Note: Before removing the damaged motors/wires, make note of the wire
connector color to ensure correct placement during new motor installation. Motors
with white/black wires and a black connector and motors with red/black wires
and a red connector should be matched with the corresponding color connector
location on the receiver circuit board, labeled A (black) and B (red) (D1).
Also, make note of the wire routing (D2).
5. Remove the wires from the grooves in the arm, and remove each damaged
motor from its slot (E).
6. Install the new motor(s) (F). Rotate the rotor blade during installation to
ensure proper meshing of the gears.
7. Fold the wires close to the motor (G), and route the wires down the arm
(H). Press the wires into the wire clips using a soft tool. Be careful not to
damage the motor wires during installation and routing.
8. Reinstall each LED lens by hooking the front of the lens into the end of the
arm and then snapping it into place (J1, J2).
Note: If the LED lens will not snap into place, verify correct wire routing and
ensure the wires are completely in the wire clips.
9. Loop the motor wire around the adjacent motor wire to ensure that the wires
do not interfere with battery installation and removal (K).
10. Plug each motor wire connector into the receiver circuit board (L).
11. Reinstall the lower main frame and the 1.6x5 BCS (4).
