asmodus Minikin Reborn 168W Handbuch Seite 4

Place batteries in the device, and quickly press the "FIRE" button 5 times to turn on the
device.The screen will display"ASMODUS", and enter into working mode.
2. Turn off
When the device is on, quickly press the "FIRE" button 5 times to turn off the device. The
screen will display "SYSTEM OFF" and turn off.
3. Vape
Hold down the "FIRE" button to vape. The maximum fire duration is 10 seconds.
4. Screen lock and unlock
There are three ways to lock and unlock the screen. 1: slide to unlock, press the "FIRE" key
to lock. 2: Press three times "FIRE" button to unlock and another 3 times to lock. 3: press
three times the "FIRE" button, then slide down to unlock; press three times "FIRE" button to

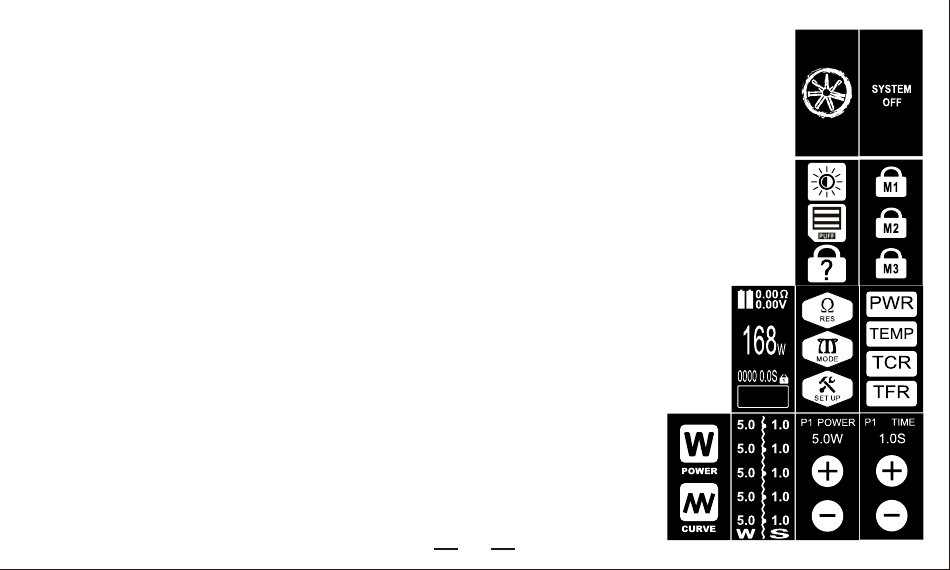

lock. Mode selection: when the screen is unlocked, click on the bottom of the screen
(POWER/TEMP/CURVE/TCR/TFR) to access the main menu. Click on the "SET UP" menu
to enter the Setup selection screen and choose screen lock mode to set the icon,
enter the screen lock mode selection screen, and select the screen lock mode.
5. Work mode selectio n
When the screen is unlocked, tap bottom part (POWER/TEMP/CURVE/TCR/TFR) on
screen to enter into main menu, and tap "MODE" to select work mode among
POWER, TEMP, TCR, and TFR.
POWER
6. CURVE mode setting
When the screen is unlocked, tap the bottom of screen(POWER/TEMP/
CURVE/TCR/TFR) to enter the main menu. Tap "MODE"and select "PWR"
to enter Power mode, tap "CURVE" to enter curve setting menu.Tap
numbers on screen and then press "+" or "-" to adjust the power and time
settings of each point (5 points all together). Press the "FIRE" button to
confirm settings and exit.
7. Wire selection under Temperature Control mode
02
