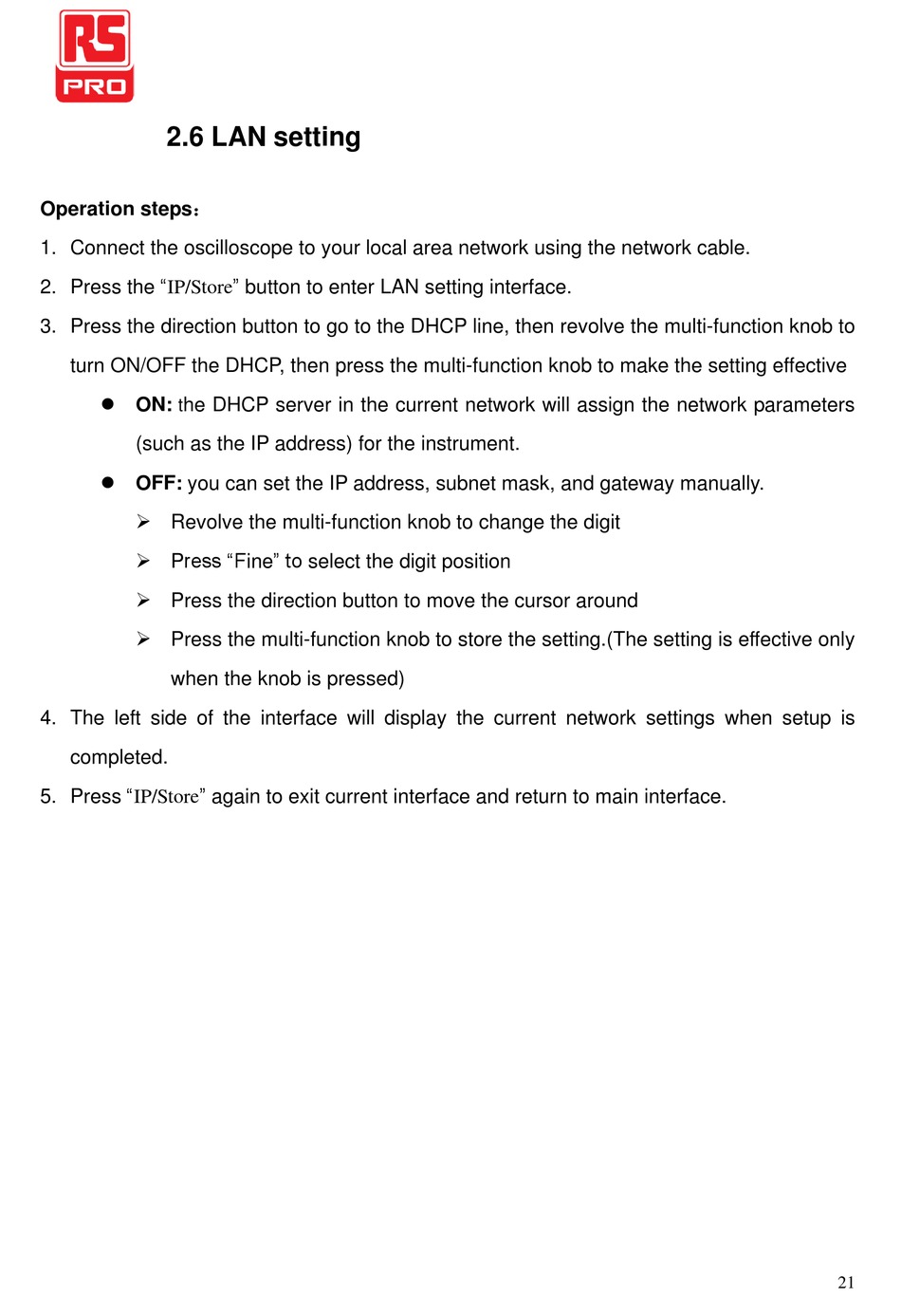

2.6 LAN setting

Operation steps：
1. Connect the oscilloscope to your local area network using the network cable.
2. Press the "IP/Store" button to enter LAN setting interface.
3. Press the direction button to go to the DHCP line, then revolve the multi-function knob to
turn ON/OFF the DHCP, then press the multi-function knob to make the setting effective
 ON:
he DHCP server in the current network will assign the network parameters
t
(such as the IP address) for the instrument.
 OFF: you can set the IP address, subnet mask, and gateway manually.
 Revolve the multi-function knob to change the digit
 Press "Fine" to select the digit position
 Press the direction button to move the cursor around
 Press the multi-function knob to store the setting.(The setting is effective only
when the knob is pressed)
4. The left side of the interface will display the current network settings when setup is
completed.
5. Press "IP/Store" again to exit current interface and return to main interface.
