Mounting accessories

44 | EN
6 .2

Including the doors in the protective measure

1.

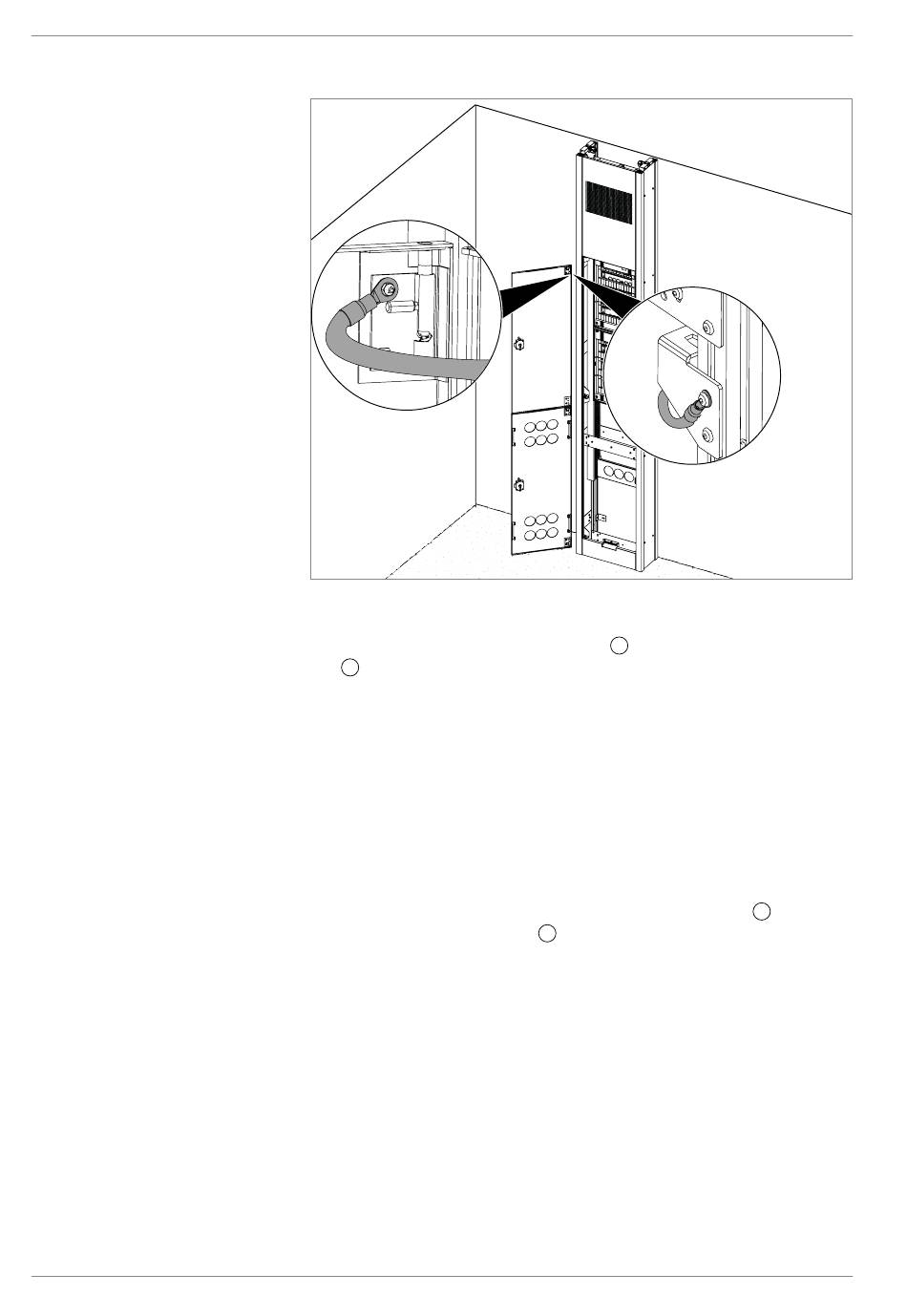

Fig . 16: Earthing the doors
1. Mount the cable lug on the hinge
, thus creating a conductive connection.
10
7

Mounting accessories

7 . 1

Mounting loudspeakers

Note! The loudspeakers can be mounted behind the acoustic panel using
the hat rails.
1. Slacken the fastening screws on the side panelling
mantle both side panels
on the wall" on page 11).
2.
and on the counter-bearing
9
(see "4.1 Mounting the media pole
5
and dis-
5
