Red
Blue
Brown

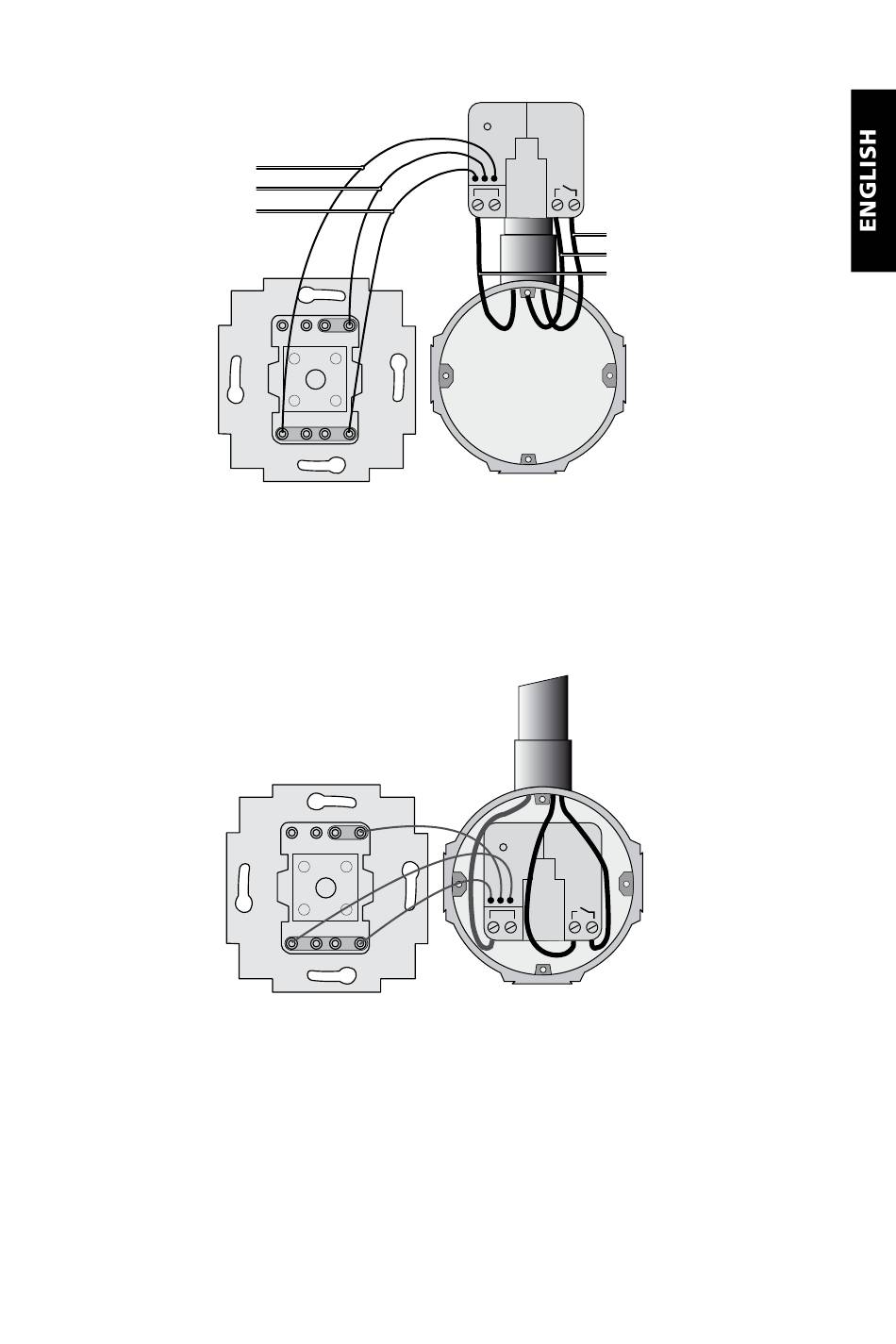

• Connect the phase, neutralize and load wire to the terminals of
the MicroModule AWM2.
• Connect the thin wires of the built-in module to the wall switch.
Connect the blue wire to clamp P of the wall switch.
• Position the MicroModule against the back wall of the wall outlet
behind all the wires.
• You are now able to program the MicroModule. For more
information see chapter "Programming".
AWM2™
prog.
N
P
P prog.
N
l
Phase 230V
Load
Neutral
Figure 2
l
Figure 3
