APPENDIX A
APPENDIX A

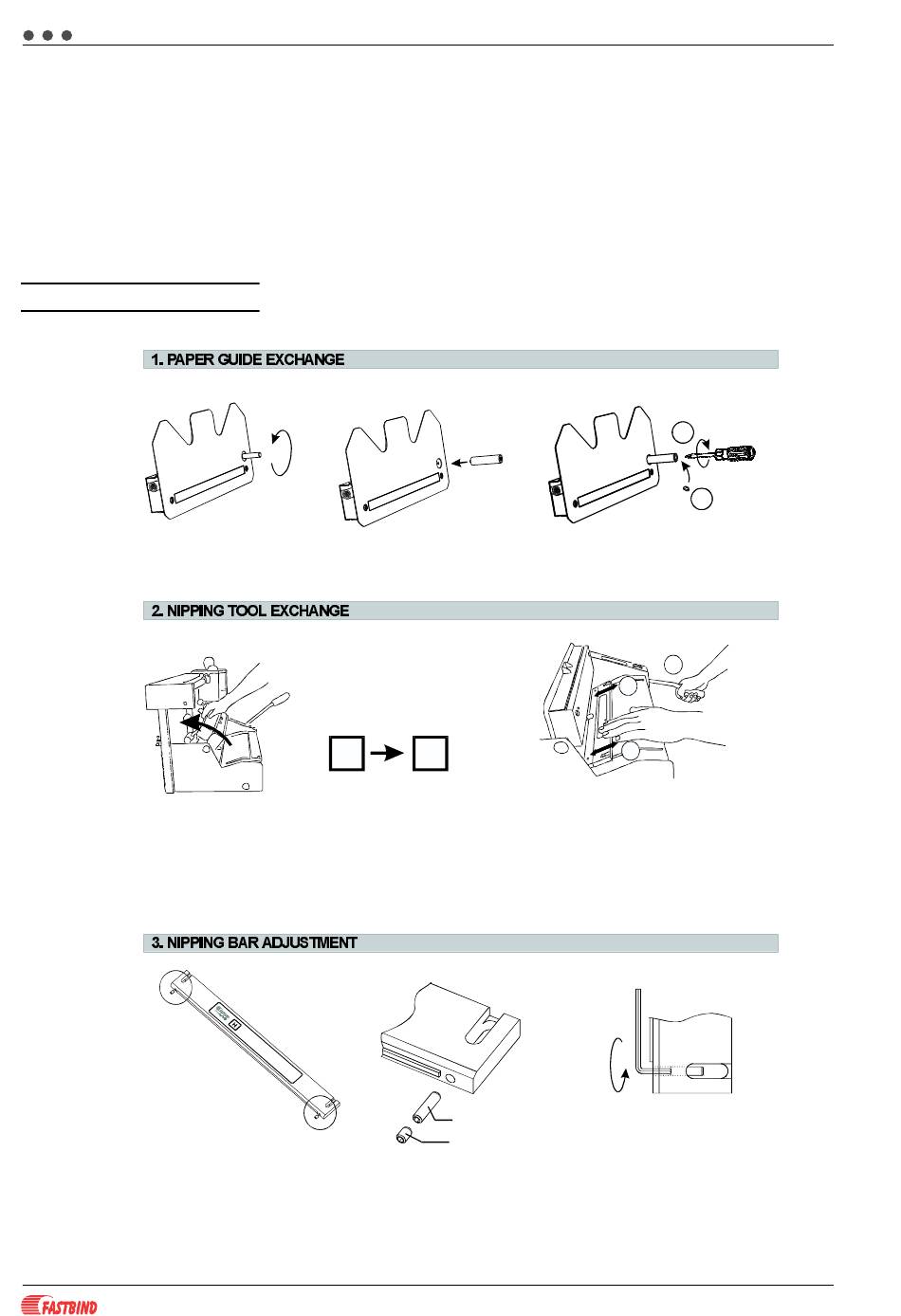

HARDCOVER TOOLSET INSTALLATION
Instructions
Remove soft cover paper
guide.
Turn table over.
To adjust nipping bar, remove locking screw from the side play was detected. Rotate adjustment screw
clockwise and repeat nipping test until play is eliminated.
www.maping.com
Attach hard cover paper
guide.
S H
Change "S" nipping
tool to "H" nipping tool.
Adjustment screw
Locking screw
1 - 24
Fasten the guide with screwdriver.
1.
3.
2.
Push the main handle completely down and keep
nipping bar pressed against the
Check the nipping bar play by moving the bar
from left (2) and right side (3). No play should be
felt.
1.
2.
back support (1).
