Use of the mortiser

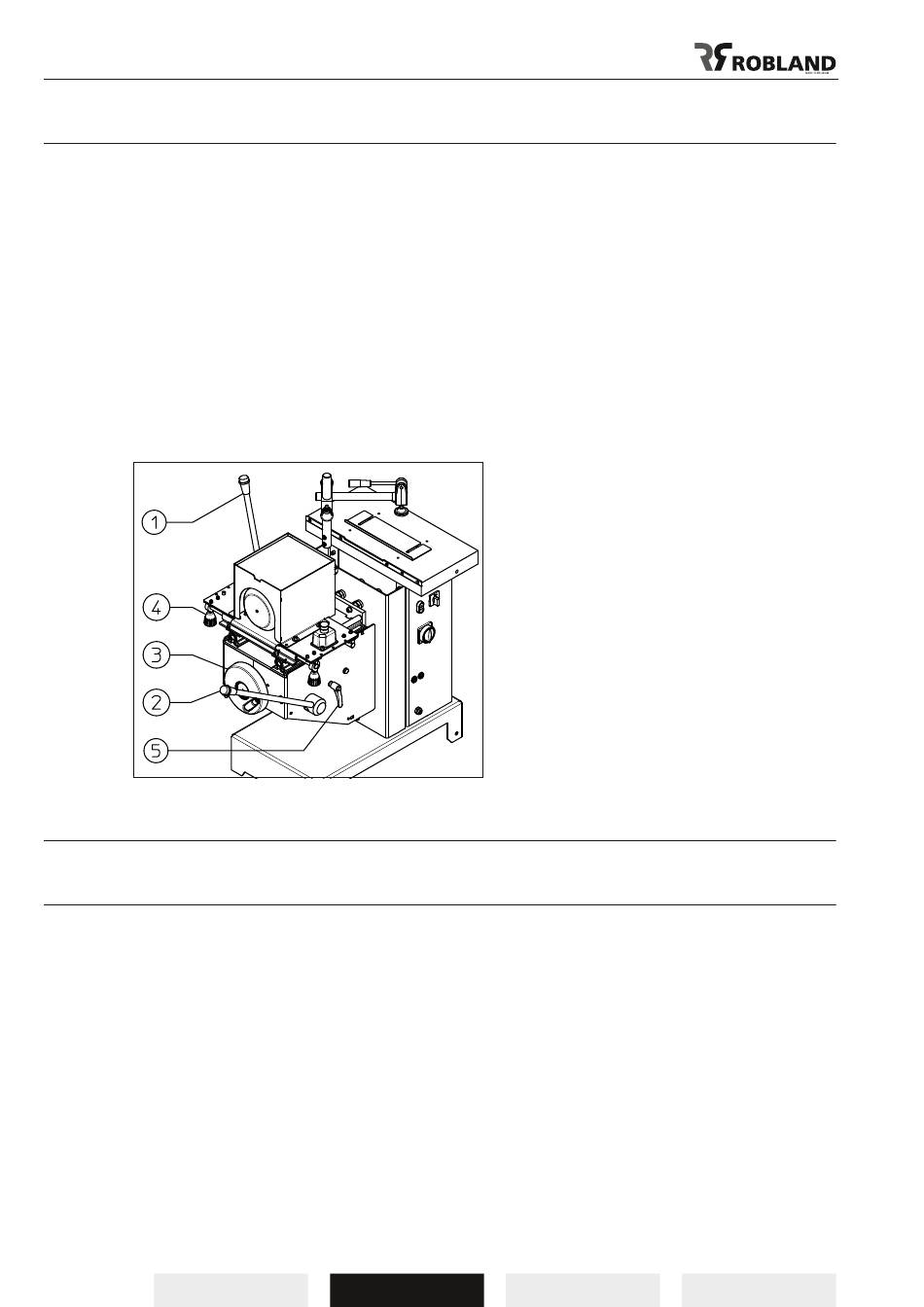

The mortiser is equipped with 2 levers (1,2),this in order to move the table in 2 directions.
Handle (1) is for the longitudinal stroke, handle (2) is for the transversal stroke.
The unit has 1 adjustable depth stop and 2 adjustable length stops (4) to facilitate repetition hole
boring.
The heigth adjustment is done with the handwheel (3), 1 turn of this handwheel corresponds with 2
mm heigth adjustment of the mortiser table.
All different measurements can be read on the different scales.
The depth stop can be set by unlocking the handle and setting the depth on the scale, and locking
the handle (5).
When the handle (5) is left unlocked, then the full stroke of 130 mm can be used.
In case deep holes have to be drilled it is recommended to drill in steps. You will obtain far better
results than when drilling the full depth in one step.
When mortising, it is recommended to drill first two holes at the extremities of the mortise; then drill
the necessary holes next to one another at the correct depth and cut away the remaining material.
Fig.7
Maintenance
Attention: Always disconnect the machine from its power supply before
starting maintenance works !
The interior parts of the machine must be cleaned regulary in order to avoid an accumulation of dust
and woodchips.
Never smoke during cleaning the mortiser: fire hazard and risk of serious burns for the operator !!
The bearings on the different sliding bars must be well oiled on a regular base using a thin oil.
Also the threaded shaft for the raise and fall of the mortiser has to be cleaned and oiled regulary.
This machine has a simple construction and requires no special maintenancen .
Maximum humidity values: 60%.
Normal appliance at room temperature: +10°C - +40°C
Storage: -10°C – 50°C.
Store in dry and dust free environment. Must be protected from extremes of temperature in store and
in transport. Protect from direct sunlight.
