Db300A System Set-Ups - Samson Audio dB300a Anleitung

dB300a System Set-ups

Compact Lounge PA for Two

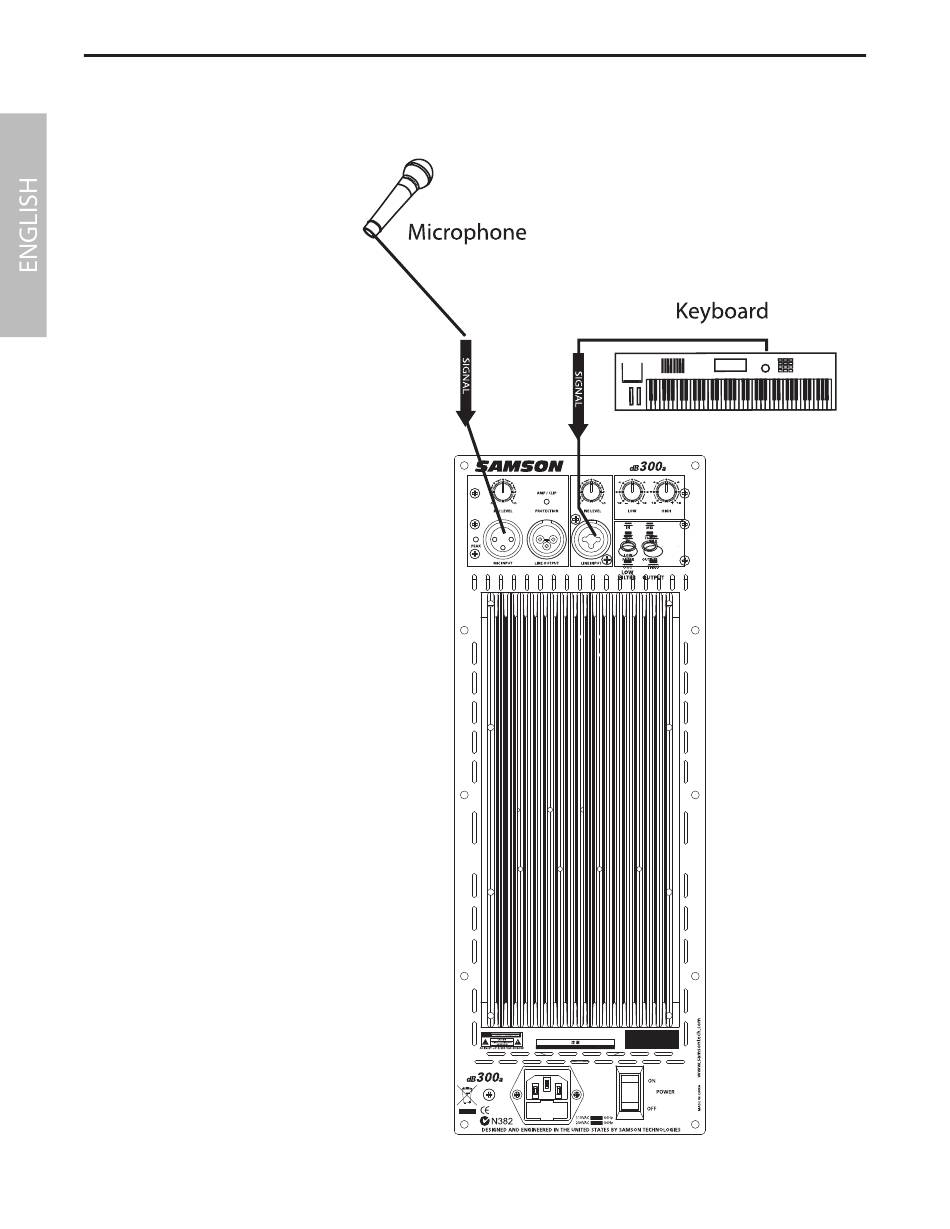

This example shows a PA system
set-up that can be used for a small
club, at a ceremony or in a lounge,
using a single dB300a for both a
microphone and vocal. A separate
signal is sent from the vocal micro-
phone to the dB300a's Mic input,
and from the keyboard to the
dB300a's Line input. The individual
Mic and Line level controls allow
you to create a mix right on the
dB300a. For further control, you
can use the dB300a's two-band
equalizer to boost or cut the highs
and/or low frequencies adjusting
the overall tonal contour of the
system.
12
