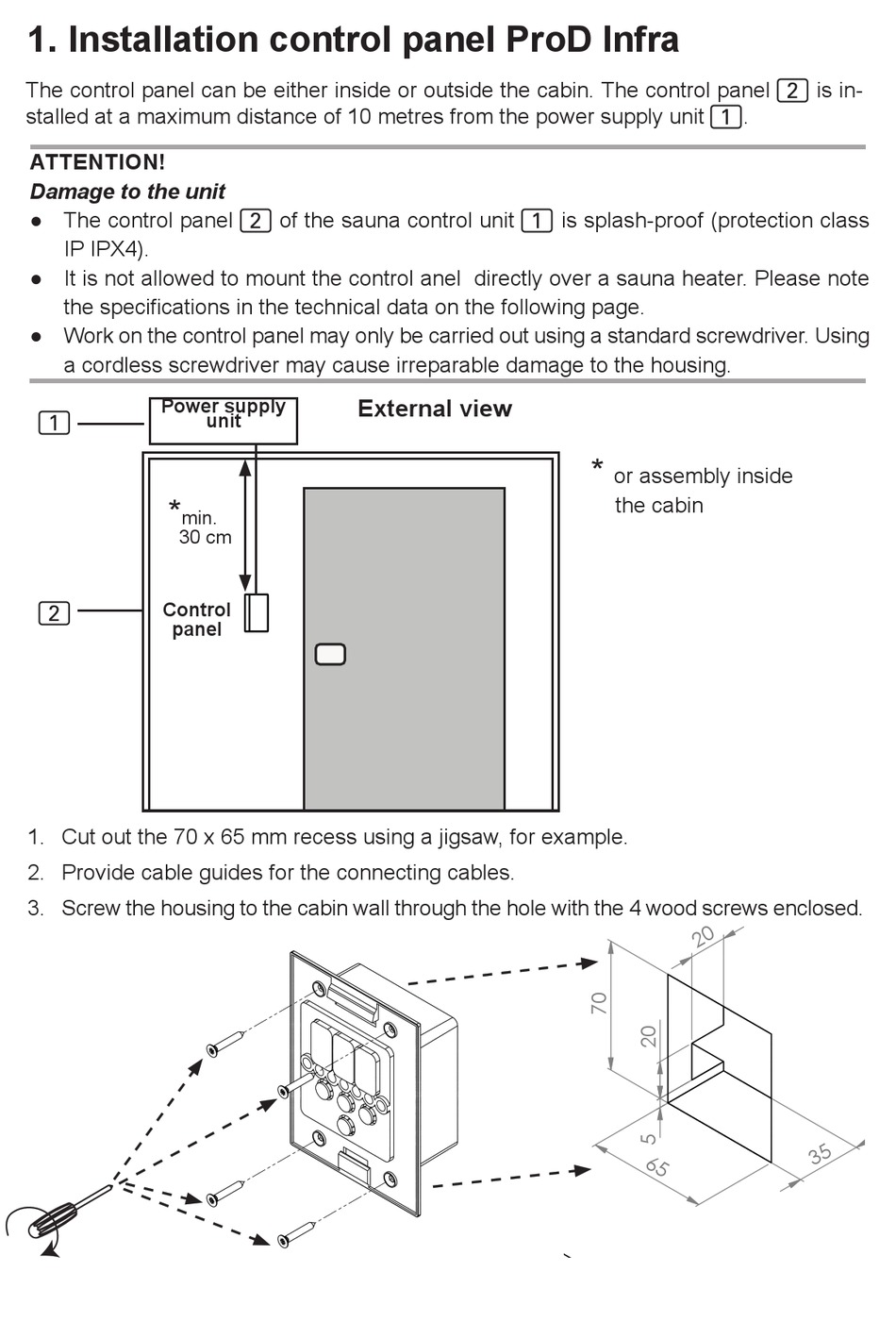

1. Installation control panel ProD Infra
The control panel can be either inside or outside the cabin. The control panel
stalled at a maximum distance of 10 metres from the power supply unit
ATTENTION!
Damage to the unit
● The control panel
IP IPX4).
● It is not allowed to mount the control anel directly over a sauna heater. Please note
the specifications in the technical data on the following page.
● Work on the control panel may only be carried out using a standard screwdriver. Using
a cordless screwdriver may cause irreparable damage to the housing.
Power supply
1
*
min.
30 cm
Control
2
panel
1. Cut out the 70 x 65 mm recess using a jigsaw, for example.
2. Provide cable guides for the connecting cables.
3. Screw the housing to the cabin wall through the hole with the 4 wood screws enclosed.
of the sauna control unit
2
External view
unit
is splash-proof (protection class
1
*
or assembly inside
the cabin
is in-
2
.
1
