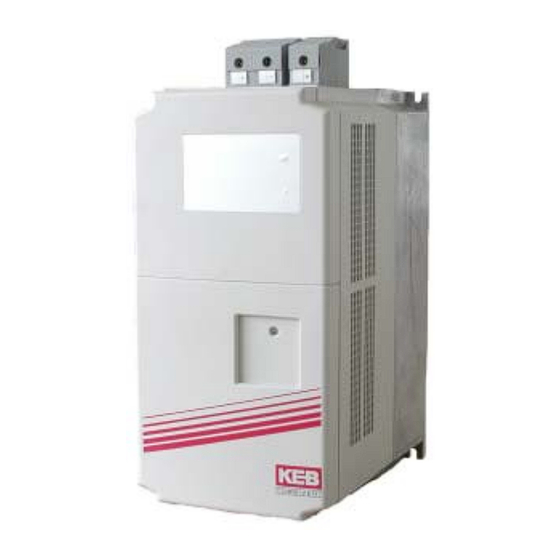

- Seite 1 C O M B I V E R T BETRIEBSANLEITUNG INSTRUCTION MANUAL Gleichrichter Rectifier 05/2003...
-
Seite 2: Vorbemerkung
Seite D - 3 ....D - 10 Vorbemerkung Bevor Sie mit der Installation des R5-Gleichrichters beginnen, lesen Sie diese Anleitung bitte sorgfältig und beachten Sie unbedingt die darin enthaltenen Hinweise und Vorschläge. Diese Betriebsanleitung muß jedem Anwender zugänglich gemacht werden. Vor jeglichen Arbeiten muß... -
Seite 3: Inhaltsverzeichnis
Table of Contents Table of Contents Safety Instructions ................... 5 Product Description ..................8 Technical data ....................8 Dimensions ..................... 8 Connection of the R5-Rectifier ................ 9 Connection terminals ..................9 Connection of an inverter to the R5-Rectifier ..........10 Connection of the temperature monitoring ............ - Seite 4 GB - 4...
-
Seite 5: Safety Instructions
Safety Instructions Safety Instructions General R5-rectifiers contain dangerous voltages which can cause death or serious injury. Care should be taken to ensure correct and safe operation to minimise the risk Danger to life to personnel and equipment. All work from the transport, to installation and start-up as well as maintenance may only be done by qualified personnel (IEC 364 and/or CENELEC HD 384 and IEC-Report 664 and note national safety regulations). - Seite 6 Safety Instructions R5-rectifiers must be protected against physical damage during tranport, installation and use. Components and covers must not be bent or moved as this may affect insulation distances. The equipment must not be switched on if it is damaged as it may no longer comply with mandatory standards. This equipment contains electrostatic sensitive devices which may be damaged by careless handling.
- Seite 7 Safety Instructions If personnel protection is required during installation of the system the frequency inverters must be protected according to EN 50178 (VDE 0160): (FI-Protective Switch) – 3-phase inverters by RCMA’s with separation (used privileged) or RCD’s type B (all-current sensitive FI’s) The tripping current should be 300mA or more, in order to avoid a premature triggering of the inverter by discharge currents (about 200mA).
-
Seite 8: Product Description
Product Description Product Description Technical data Inverter Size Housing size Phases Output nominal power [kW] Output nominal current Max. short time current for 30 sec. Nominal input current Max. permissible fuse Max. heat sink temperature TOH [°C] Cross section to inverter [mm²] Tightening torque for terminals [Nm]... -
Seite 9: Connection Of The R5-Rectifier
Connection Connection of the R5-Rectifier Connection terminals Input Output L1, L2, L3 Mains connection rectifier -, + Connection inverter T1, T2 Connection overtemperature Connection screening/ earthing -, + Supply fans Connection screening/ earthing GB - 9... -
Seite 10: Connection Of An Inverter To The R5-Rectifier
Connection Connection of an inverter to the R5-Rectifier Filter 24 V DC + 10 % 0,6 A T1 T2 T2 T1 DC-FI R5-Rectifier – – Attention! The minimum permissible current limiting resistor amounts to 2 Ohm. An undershooting may lead the equipment damage. Connection of the temperature monitoring The internal temperature monitoring has to be analysed and shut-down the machine, if the contactwill be opened. - Seite 11 When used in accordance with the operating instructions failure is most unlikely. However, if you have cause for complaint please contact KEB. We do not accet the responsibility for failures due to misuse, wrong storage or similar causes.
