User Manual

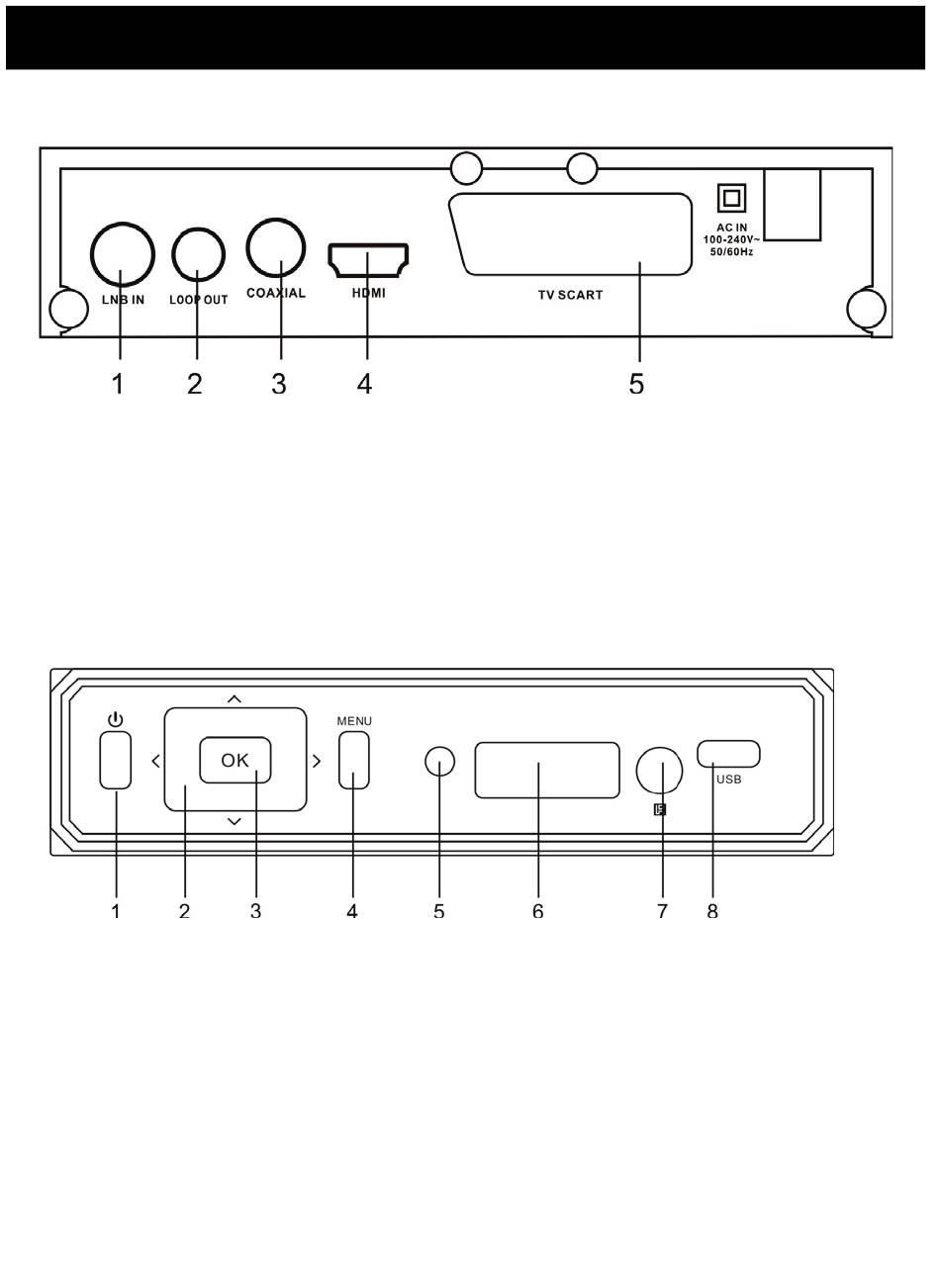

FRONT AND REAR PANEL
REAL PANEL
1. Connect to satellite antenna cable
2. LOOP OUT modulator with CH11, for old TV.
3. Connected to TV HDTV interface
4. Composite Video output
5. Analog audio output
6. Digital audio output

FRONT PANEL

1.Power on/off button
2.Direction button(Channel+/-, Volume +/-)
3.OK button
4.MENU button
5.Works signal light
6.LED display window
7.Remote control signal sensor
8. USB jack
'
~ 4 ~
