Safety Connections

SAFETY THUMB SCREW
If you prefer a fixed attachment between the LitePad Loop and the
Mounting Assembly, the magnetic connection may be replaced by a
secure thumb screw - included with the Loop.
1. Unscrew and remove the
pan head screw and the
Wing Nut from the back of
the Mag. Plate as shown in
Fig. 12.1. Remove the Mag.
Plate and set it aside.
2. Place the LitePad Loop
directly in contact with the
L-Bracket and screw the
provided Safety Thumb
Screw into the center hole
of the LitePad Loop Mag
Bracket. Fig. 12.2
3. Slide the Loop up or down
to the desired position and
tighten the Safety Thumb
Screw. Fig. 12.3

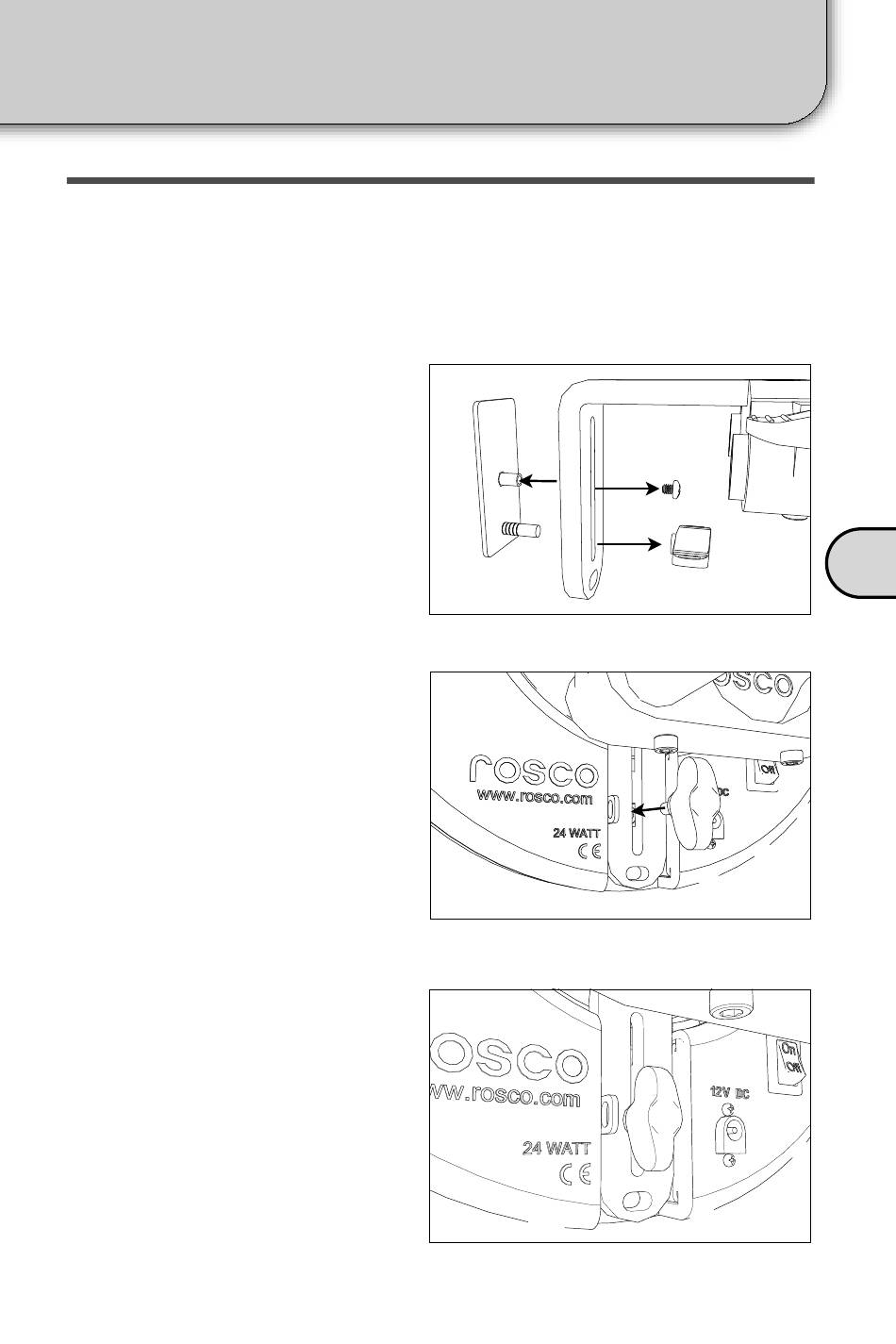

Installing the Safety Thumb Screw

E
Fig. 12.1
Fig. 12.2
Fig. 12.3
19
