Euromate HFE-25 Bedienungsanleitung Seite 69

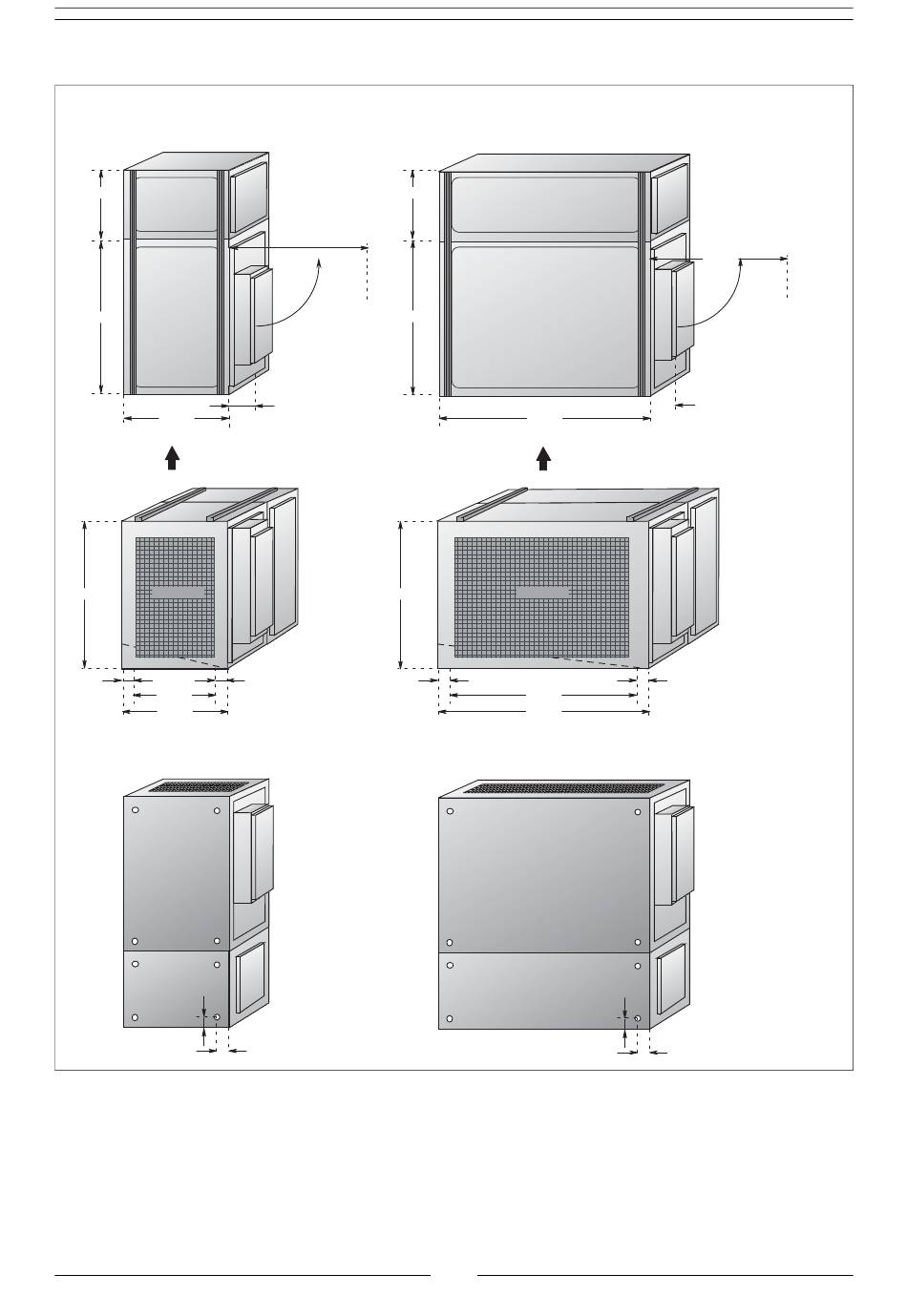

HFE 25
333 mm
top view
660 mm
450 mm
AIRFLOW
top view front view
side view
630 mm
50 m m
350 mm
450 mm
bottom view
holes Ø 8 mm
(4x)
holes
Ø 8 mm (4x)
50 mm
8
0508080010/SFE-HFE/010111/G
333 mm
635 mm
660 mm
110 mm
630 mm
50 m m 50 m m
50 m m
HFE 50
top view
900 mm
AIRFLOW
front view
800 mm
900 mm
bottom view
holes Ø 8 mm
(4x)
holes
Ø 8 mm (4x)
50 mm
635 mm
110 mm
50 m m
50 m m
68
