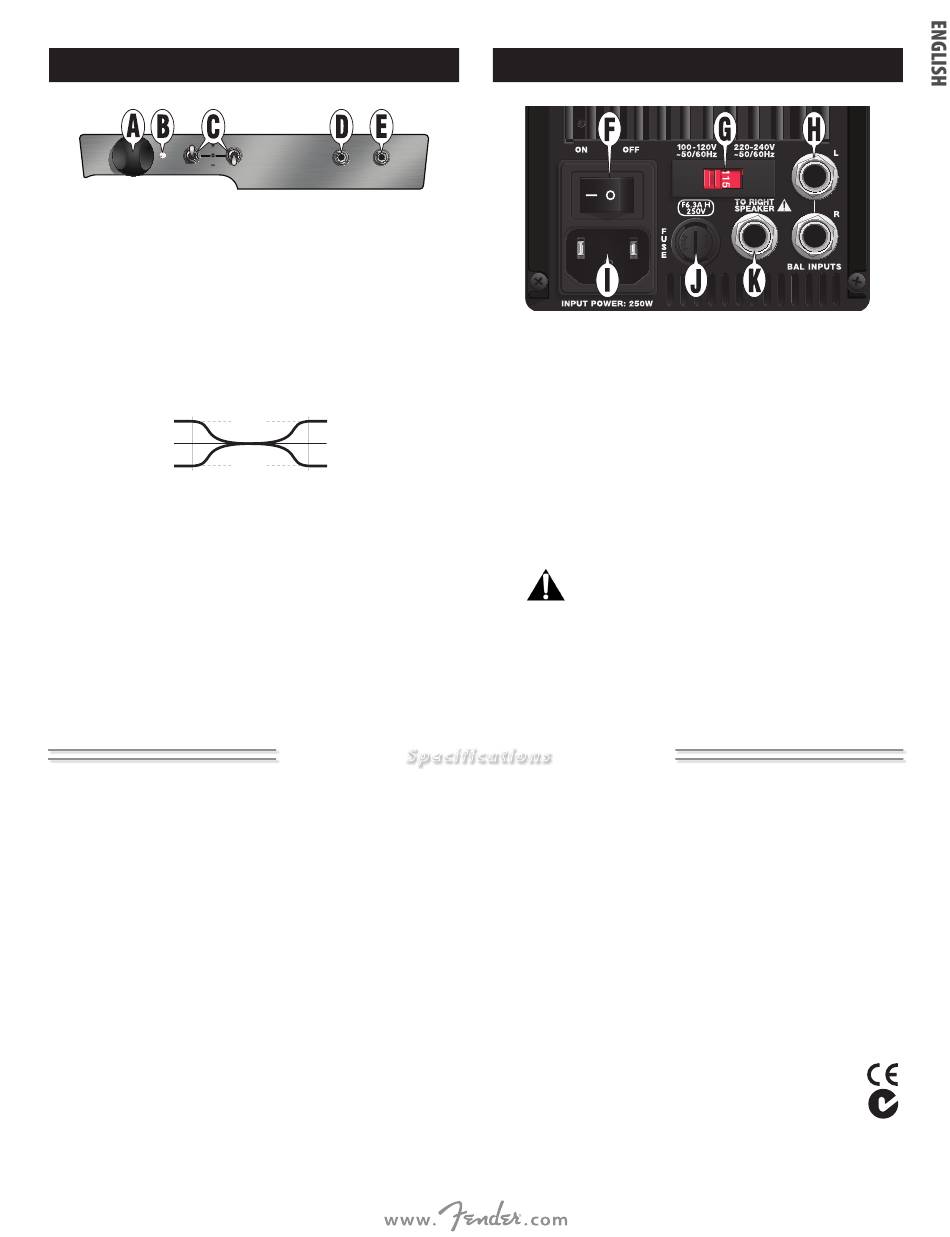

Front Panel

LEVEL
BASS TREBLE
A. LEVEL — Adjusts the volume output from the Fender
Passport Studio speakers -OR- the volume output from the
STEREO PHONES jack {E}, when in use.
B. POWER ON/CLIPPING LED — This LED illuminates green
when the unit is powered on. This LED flashes red when the
power amp is clipping indicating that LEVEL {A} should be
reduced to prevent the unit from distorted sound output.
C. BASS/TREBLE — Use these switches to boost or attenuate
response in the low and high frequency ranges respectively.
The middle "0" position provides true flat signal response.
BASS
75Hz
D. STEREO AUX IN — Connect this jack to the sound card
output on your computer or the headphones output on
an audio player with the supplied stereo mini cable. This
included cable can limit interference to other devices and
can be replaced by ordering Fender p/n 0097079000. You
may need to adjust the output level of the source device
to avoid clipping. NOTE: The STEREO AUX IN jack and the
BALANCED INPUTS {H} can be used simultaneously.
E. STEREO PHONES — You can plug in headphones to
this jack. The Fender Passport Studio speakers are
automatically muted.
TYPE
FREQUENCY RESPONSE
MAXIMUM SPL
THD+NOISE
SYSTEM SIGNAL TO NOISE RATIO
NOMINAL INPUT LEVEL
MAXIMUM INPUT LEVEL
INPUT IMPEDANCE
POWER OUTPUT
POWER REQUIREMENT
FUSE
SYSTEM DIMENSIONS
WEIGHT
STEREO STEREO
AUX IN PHONES
TREBLE
+1.5dB
–1.5dB
7.5kHz

Specifications

PR 1193
SYSTEM: 50Hz–20kHz ±3dB
105dB SPL Peak @ 1m
<0.2% @1W into resistive load (woofer output, 20Hz–5kHz)
>90dB, unweighted (22Hz–22kHz filter enabled)
–10dBV (3.5mm unbalanced stereo line inputs)
+8.0dBV (3.5mm unbalanced stereo line inputs)
10kΩ (3.5mm unbalanced stereo line inputs)
Woofers (LF): 100W (50W/channel) 200Hz into 4Ω @ <0.7% THD+N
100–120V or 220–240V 50/60Hz; 250W maximum
F6.3AH 250V 5mm x 20mm
WIDTH: 18 in (45.7 cm)
SYSTEM: 18.5 lb (8.4 kg)
Product specifications are subject to change without notice.
F. POWER SWITCH — Press to the "ON" position to turn the
unit on. Press to the "OFF" position to turn the unit off.
G. VOLTAGE SELECTOR — Change this setting only if you travel
to a country that requires a different voltage setting.
H. BALANCED INPUTS — These jacks can be used to input
balanced signals using 1/4" TRS (Tip-Ring-Sleeve) plugs where
Tip=Positive, Ring=Negative and Sleeve=Ground.
I. POWER INPUT — Connect to a grounded AC outlet in
accordance with the proper VOLTAGE SELECTOR {G} setting.
J.
FUSE — Protects the unit in case of electrical faults. Replace
only with the type and rating specified above the fuse holder
on your unit.
K. TO RIGHT SPEAKER — Connect this jack to the
input jack inside the rear compartment of the right speaker
using ONLY the included TRS (Tip-Ring-Sleeve) cable where
Tip=Woofer, Ring=Tweeter and Sleeve=Common. Do NOT
use a standard speaker cable for this connection! This cable
can be replaced by ordering Fender p/n 0097078000. See
POWER OUTPUT in Specifications below.
POWER AMP: 30Hz–20kHz ±1dB (resistive loads)
<0.3% @250mW into resistive load (tweeter output, 3kHz–20kHz)
+4dBu (1/4" (6.35mm) balanced line inputs)
+22dBu (1/4" (6.35mm) balanced line inputs)
20kΩ (1/4" (6.35mm) balanced line inputs)
Tweeters (HF): 50W (25W/channel) 8kHz into 8Ω @ <0.2% THD+N
HEIGHT: 14 in (35.6 cm) DEPTH: 8.25 in (21.0 cm)
SHIPPING: 24 lb (10.9 kg)

Rear Panel
