Inserting the Hood Canopy into the support surface from above

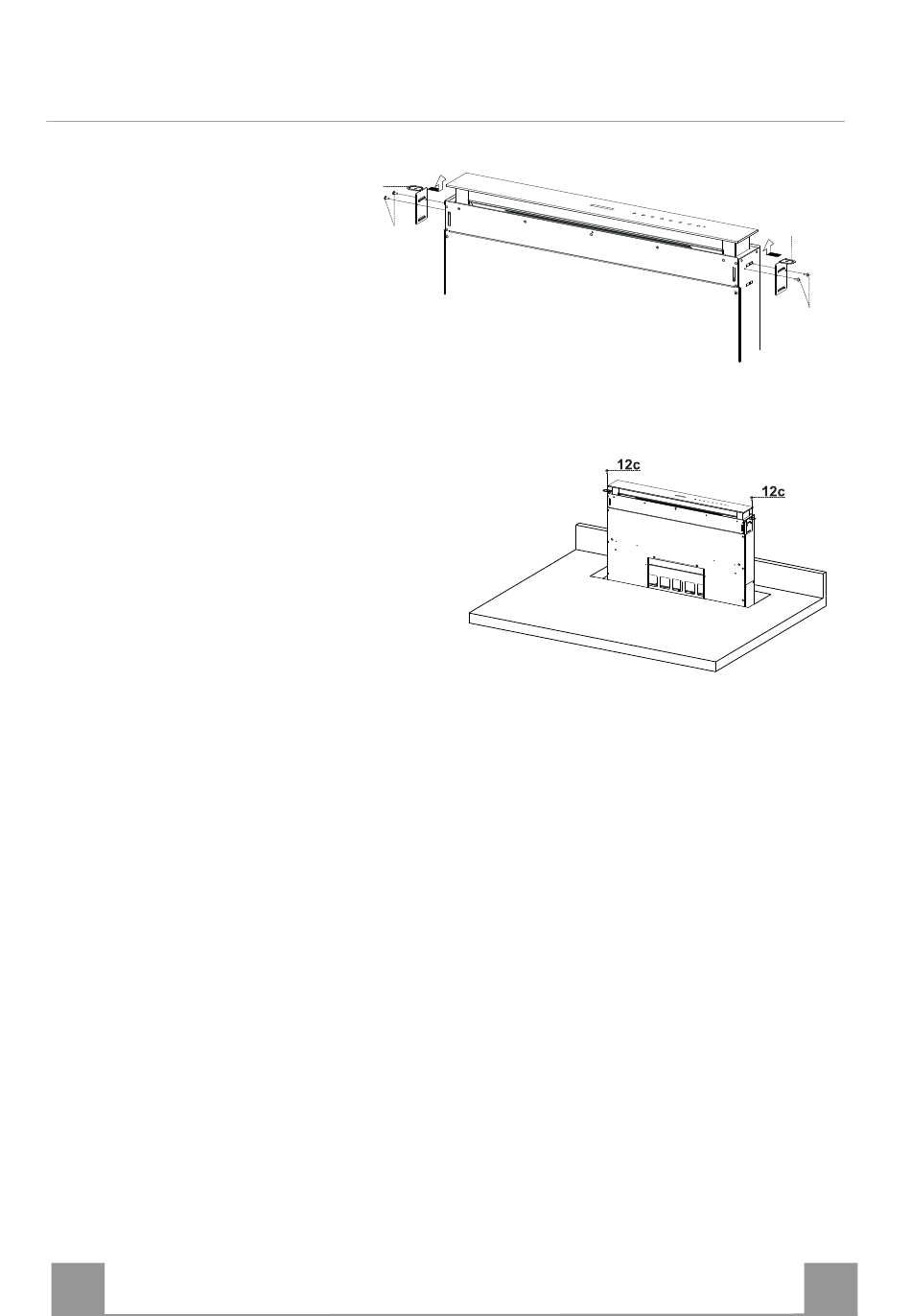

• Insert the Brackets 7.2, as indi-
cated in the figure, into the slots
provided and fix them with the
screws 12a provided.
• Insert the Hood Canopy into the cooker top,
drilled as described above.
• Centre the Hood Canopy with respect to the
Cooking Hob slot.
• Fix the Hood Canopy with the 2 screws 12c
provided.
Warning:
If the cooker top is made from a material that does not allow the screws 12c to be inserted, use
a small amount of silicone to glue the Brackets 7.2 to the top and allow it to dry completely
before proceeding with installation.
EN
7.2
12a
7.2
12a
