Seite 2
KORG products are manufactured under strict specifications and voltages required by each country. These products are warranted by the KORG distributor only in each country. Any KORG product not sold with a warranty card or carrying a serial number disqualifies the...
Seite 3

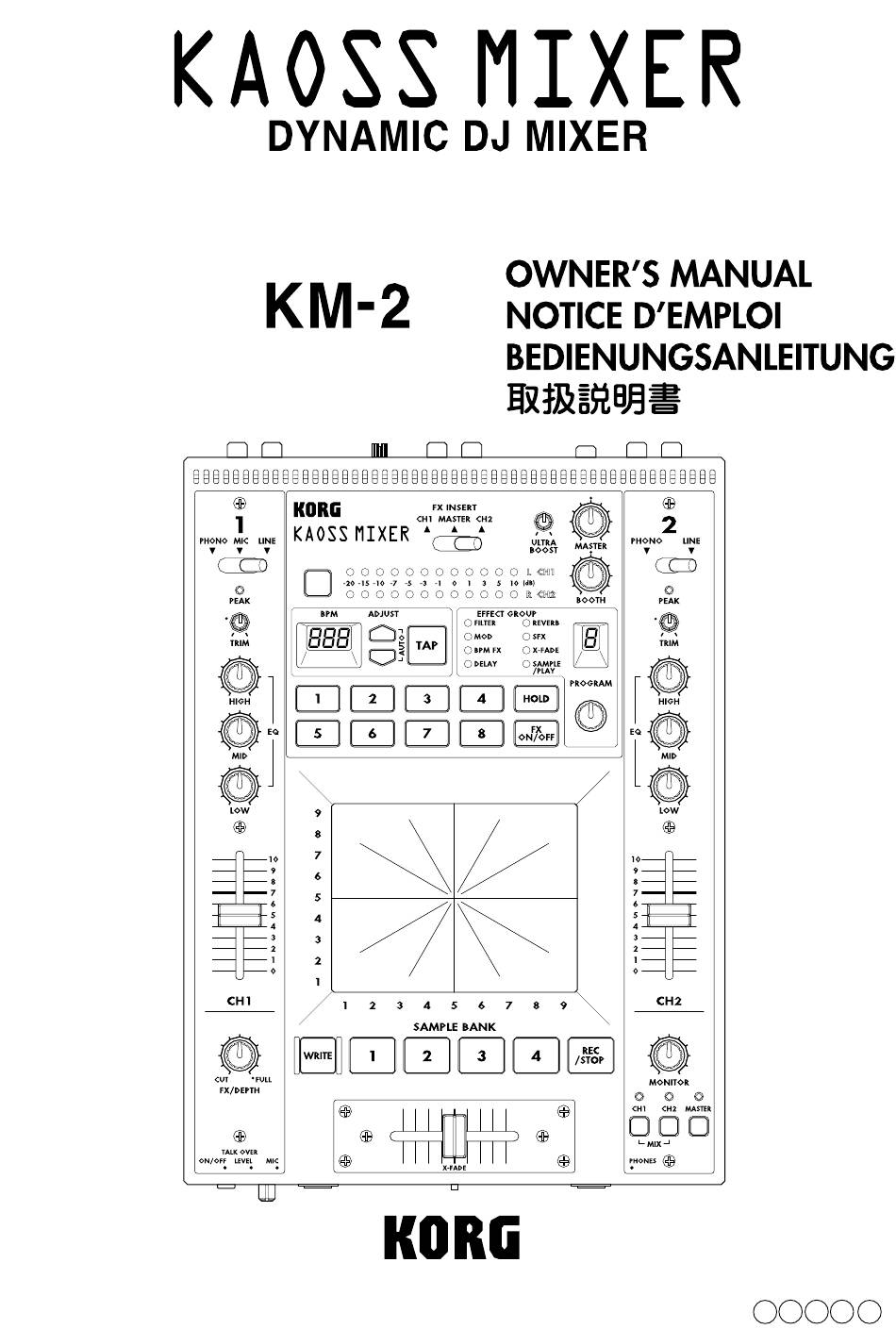

GENERAL CONTENS GENERAL CONTENS OWNER’S MANUAL / ENGLISH ..................2-8 NOTICE D’EMPLOI / FRANCAIS ..................1-8 BEDIENUNGSANLEITUNG / DEUTSCH ................1-8 / JAPAN ......................1-8...

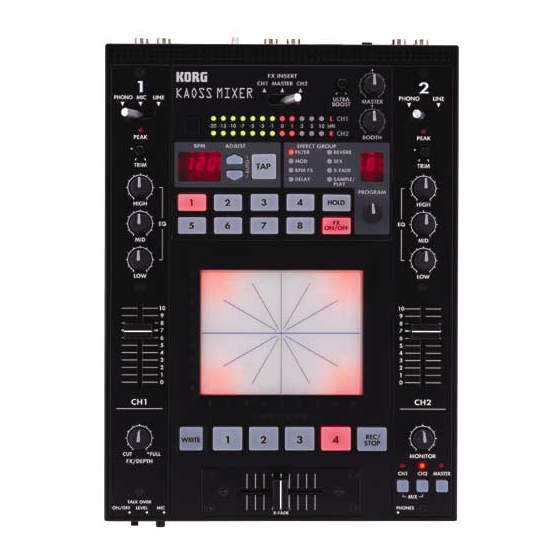

Contents / Connections and controls of the KM-2 Contents Connections and controls of the KM-2 ..................2 Effect program list ........................4 Operation ..........................5 Calibrating the crossfader ......................7 Specifications ........................... 8 Connections and controls of the KM-2 Top panel 1.
Connections and controls of the KM-2 10. MONITOR knob 16. BOOTH volume 24. HOLD switch Adjusts the output level of the front panel Adjusts the volume that is output from the While this switch is lit, the touch panel (30) PHONES jack (F5).
Effect program list Effect program list KM-2 EFFECT PROGRAM LIST EFFECT GROUP PROG TITLE FILTER RESONANCE FILTER FREQUENCY RESONANCE ISOLATOR LPF/HPF TYPE HI CUT <-> LOW CUT NO ASSIGN WAH FILTER SPEED DEPTH DIST+VOICE FILTER TALKING DISTORTION DIST+FILTER FREQUENCY DISTORTION MANUAL PHASER FREQUENCY RESONANCE...
Operation Operation Basic operation 1) As described in "Connections and controls of the KM-2" 6) Use the touch panel (30) to control the effect. (p.2), connect your turntable(s) or CD player(s) to CH1 and The effect section of the KM-2 lets you control the sound by CH2.
Seite 8
Operation About the SAMPLE/PLAY effects The sampling function of the KM-2 lets you store four different six-second samples. Recording and playback when a Recording and playback when a non- SAMPLE/PLAY effect program is selected SAMPLE/PLAY effect program is selected You can record or play back samples when a SAMPLE/PLAY You can record and play back phrases (basic playback) even effect program is selected.
Operation/Calibrating the crossfader 2) Press the SAMPLE BANK key(s) 1–4 (26) that you wish to Saving a sample - "WRITE" save. (The SAMPLE BANK you pressed will blink.) You may select two or more banks to write. Phrases that you record using the REC/STOP key are only If you press the TAP key (19) or the FX ON/OFF switch (25) written temporarily into the internal memory of the KM-2, and at this point, the WRITE operation will be cancelled.
Les produits KORG sont fabriqués suivant les normes et les tentions d’alimentation requises dans chaque pays. Ces produits sont garantis par le distributeur KORG dans le cadre de sa seule distribution. Tout produit KORG non vendu avec sa carte de garantie ou ne portant pas...
Connecteurs et commandes du KM-2 Connecteurs et commandes du KM-2 Panneau supérieur 1. Sélecteur d'entrée du canal 1 Sélectionne la source d'entrée pour le canal 1. Remarque: Pour sélectionner le micro comme source d'entrée, régler le commu- tateur TALK OVER ON/OFF (F1) de la face avant sur la position OFF.
Connecteurs et commandes du KM-2 10. Bouton MONITOR 16. Volume BOOTH 24. Interrupteur HOLD Règle le niveau de sortie de la prise PHO- Règle le volume diffusé par les prises Lorsque cet interrupteur est allumé, le pan- NES (F5) de la face avant. BOOTH OUTPUT (R7).
Seite 14
Liste des programmes d'effets Liste des programmes d'effets KM-2 EFFECT PROGRAM LIST EFFECT GROUP PROG TITLE FILTER RESONANCE FILTER FREQUENCY RESONANCE ISOLATOR LPF/HPF TYPE HI CUT <-> LOW CUT NO ASSIGN WAH FILTER SPEED DEPTH DIST+VOICE FILTER TALKING DISTORTION DIST+FILTER FREQUENCY DISTORTION MANUAL PHASER...
Seite 15
Fonctionnement Fonctionnement Fonctionnement de base 1) Comme expliqué dans "Connecteurs et commandes du KM- 6) Utilisez le panneau sensible au toucher (30) pour contrôler 2" (p.19), raccordez votre ou vos tourne-disques ou l'effet. lecteur(s) CD aux bornes CH1 et CH2. Réglez les sélec- La section des effets du KM-2 permet de contrôler le son teurs d'entrée (1, 2) sur la position appropriée pour les ap- en se déplaçant sur l'axe X (horizontal) et sur l'axe Y (ver-...
Seite 16
Fonctionnement A propos des effets SAMPLE/PLAY La fonction d'échantillonnage du KM-2 permet de mémoriser quatre échantillons différents de six secondes chacun. Enregistrement et reproduction lorsqu'un programme Enregistrement et reproduction lorsqu'un programme d'effets SAMPLE/PLAY est sélectionné d'effets autre que SAMPLE/PLAY est sélectionné Vous pouvez enregistrer et reproduire des phrases (reproduc- Vous pouvez enregistrer ou reproduire des échantillons lors- tion de base) même lorsqu'un programme d'effets autre que...
Seite 17
Fonctionnement / Calibrage du cross fader 2) Appuyez sur la ou les touches SAMPLE BANK 1–4 (26) à Sauvegarde d'un échantillon - "WRITE" mémoriser. (Le voyant de la SAMPLE BANK sélectionnée clignote.) Vous pouvez sélectionner deux ou davantage de touches pour l'écriture. Les phrases que vous enregistrez à...
• Achten Sie darauf, daß keine Metallgegenstände in das Gerät gelangen. Sollte dies dennoch geschehen, ziehen Sie den Wechselstromadapter aus der Netzsteckdose. Setzen Sie sich anschließend mit dem nächstgelegenen Korg-Fachhändler oder dem Geschäft in Verbindung, in dem Sie das Gerät gekauft haben.
Anschlüsse und Bedienungselemente des KM-2 Anschlüsse und Bedienungselemente des KM-2 Oberseite 1. Eingangswahlschalter für Kanal 1 Wählt die Eingangs-Signalquelle für Ka- nal 1. Hinweis: Wenn Sie das Mikrofon als Signalquelle wählen, stellen Sie den Schalter TALK OVER ON/OFF (F1) auf die Position "OFF".
Anschlüsse und Bedienungselemente des KM-2 10. Regler MONITOR 16. BOOTH-Lautstärkeregler 24. Schalter HOLD Stellt den Ausgangspegel der PHONES- Stellt die Lautstärke des Signals ein, das Während dieser Schalter leuchtet, befindet Buchse auf der Vorderseite ein (F5). an den Buchsen BOOTH OUTPUT ausge- sich das Touch Panel (30) im "Hold"-Sta- geben wird (R7).
Liste der Effektprogramme Liste der Effektprogramme KM-2 EFFECT PROGRAM LIST EFFECT GROUP PROG TITLE FILTER RESONANCE FILTER FREQUENCY RESONANCE ISOLATOR LPF/HPF TYPE HI CUT <-> LOW CUT NO ASSIGN WAH FILTER SPEED DEPTH DIST+VOICE FILTER TALKING DISTORTION DIST+FILTER FREQUENCY DISTORTION MANUAL PHASER FREQUENCY RESONANCE...
Bedienung Bedienung Grundfunktionen 1) Schließen Sie Ihre(n) Plattenspieler oder CD-Player an den Überblendregler X-FADE (29) auf die Stellung CH1 (ganz Buchsen CH1 und CH2 an, wie unter "Anschlüsse und links). Bedienungselemente des KM-2" (S. 19) beschrieben. Schie- 6) Effekte steuern Sie mit dem Touch Panel (30). Mit der Effekt- ben Sie die Eingangswahlschalter (1, 2) für die an den Ka- sektion des KM-2 können Sie den Sound steuern, indem nälen 1 und 2 angeschlossenen Geräte auf die jeweils rich-...
Seite 24
Bedienung Über die SAMPLE/PLAY-Effekte Mit der Sampling-Funktion des KM-2 können Sie vier verschiedene, jeweils ca. 6 Sekunden lange Samples aufnehmen. Aufnahme und Wiedergabe bei ausge- Aufnahme und Wiedergabe, wenn kein SAMPLE/ wähltem SAMPLE/PLAY-Effektprogramm PLAY-Effektprogramm ausgewählt ist Sie können auch dann Phrasen aufnehmen und abspielen (ein- Sie können Samples aufnehmen oder wiedergeben, wenn ein fache Wiedergabe), wenn kein SAMPLE/PLAY-Effektprogramm SAMPLE/PLAY-Effektprogramm ausgewählt wurde.
Bedienung / Kalibrierung des Crossfaders 2) Drücken Sie die SAMPLE-BANK-Taste(n) 1–4 (26), die Sie Sample speichern - "WRITE" speichern möchten. (Die ausgewählte SAMPLE-BANK-LED blinkt.) Sie können auch zwei oder mehr Sample-Bänke zum Speichern auswählen. Phrasen, die Sie mit der Taste REC/STOP aufgenommen ha- Wenn Sie zu diesem Zeitpunkt die TAP-Taste (19) oder den ben, befinden sich nur im temporären Arbeitsspeicher des KM- Schalter FX ON/OFF (25) drücken, wird der WRITE-Vor-...
Seite 29
接続および各部の名称、機能 10. MONITOR(モニターつまみ) 16. BOOTH(ブース・ボリューム) 24. HOLD(ホールド・スイッチ) 前面のPHONES端子(F5)の出力レベル こ の ス イ ッ チ が 点 灯 し て い る と き は 、 BOOTH OUTPUT端子(R7)から出力さ を設定します。 れる音の音量を設定します。 タッチ・パネル(3 0 )がホールド状態に なります。タッチ・パネルから指を離し 11. モニター・セレクト・スイッチ 17. BPM(BPM表示機) ても、最後に触っていた位置でのエフェ C H 1 : チャンネル1 のサウンドをモニター 曲のテンポの速さ、いわゆるB P M を表示...
Seite 30
エフェクト・プログラム・リスト エフェクト・プログラム・リスト KM-2 EFFECT PROGRAM LIST EFFECT GROUP PROG TITLE FILTER RESONANCE FILTER FREQUENCY RESONANCE ISOLATOR LPF/HPF TYPE HI CUT <-> LOW CUT NO ASSIGN WAH FILTER SPEED DEPTH DIST+VOICE FILTER TALKING DISTORTION DIST+FILTER FREQUENCY DISTORTION MANUAL PHASER FREQUENCY RESONANCE PAN BY HPF X-FADE FREQUENCY DIST+ISOLATOR...
Seite 33
操作方法/クロスフェ−ダ−のキャリブレ−ション(調整)について 2)保存したいSAMPLE BANKキー1–4 ( 26) を押します (押し サンプルの保存「WRITE」について たSAMPLE BANKが点滅) 。WRITEするBANKを2つ以上選 択することもできます。 ☆ ここで、TAPキー (19) 、またはFX ON/OFFスイッチ (25) REC/STOPキーにより録音されたフレーズは一時的にKM-2 を押すとWRITEがキャンセルできます。 のメモリに書き込まれているだけですので、電源を切ると消 3)再度、W R I T E キー (2 8 ) を押すと書き込みが開始されま えてしまいます。保存したい場合は、必ず W R I T E (ライ す。書き込みには1 B A N K あたり最大で約2 0 秒かかりま ト)の操作をしてください。また、逆にライトをしないかぎ...
