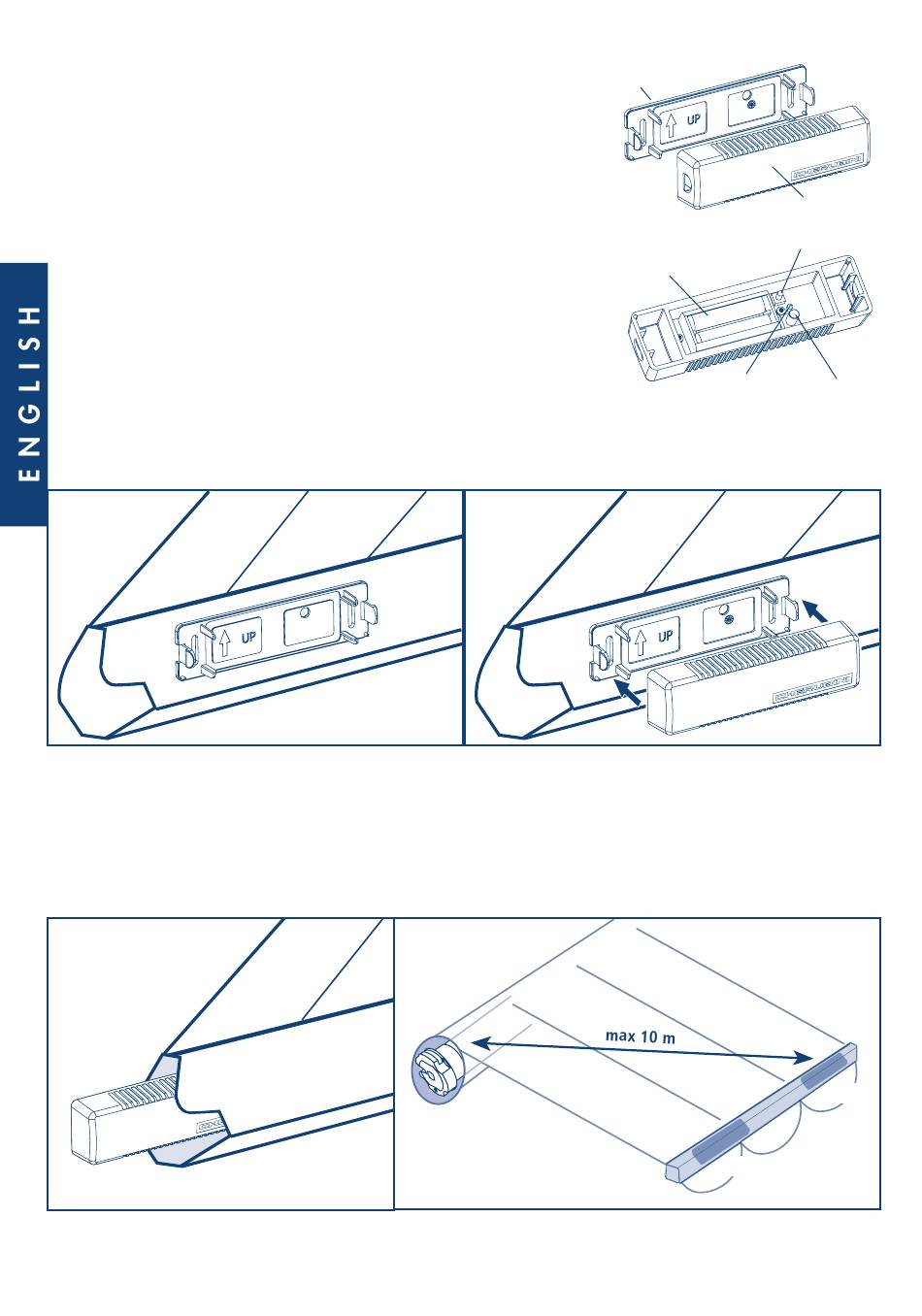

The sensor is housed in a plastic container made up
of two parts: a base attached to the terminal bar
and a snap-on shell.
The shell contains the sensor processor board,
the battery compartment and the programming
commands.
The base is attached to the terminal bar with M4 screws
(not included) or the double-sided adhesive already found
on the back. Inside of the base, there is an arrow that enables
the identification of the proper direction for assembly of the sensor: put arrow upwards.
Best Position: internal side of the bar.
The sensor must be assembled parallel with the end bar.
Attention: do not insert the sensor inside of the end bar profile but install
the sensor on the internal side of the end bar, at the end closest to the motor or to the
control unit or in any event within 10 metres.
NO
Make sure that there is enough space and MISTRAL does not get damaged by
closing the awning!

INSTALLATION

18
BASE
BATTERY COMPARTMENT
LED
YES
SHELL
SET BUTTON
SELECTOR
YES
