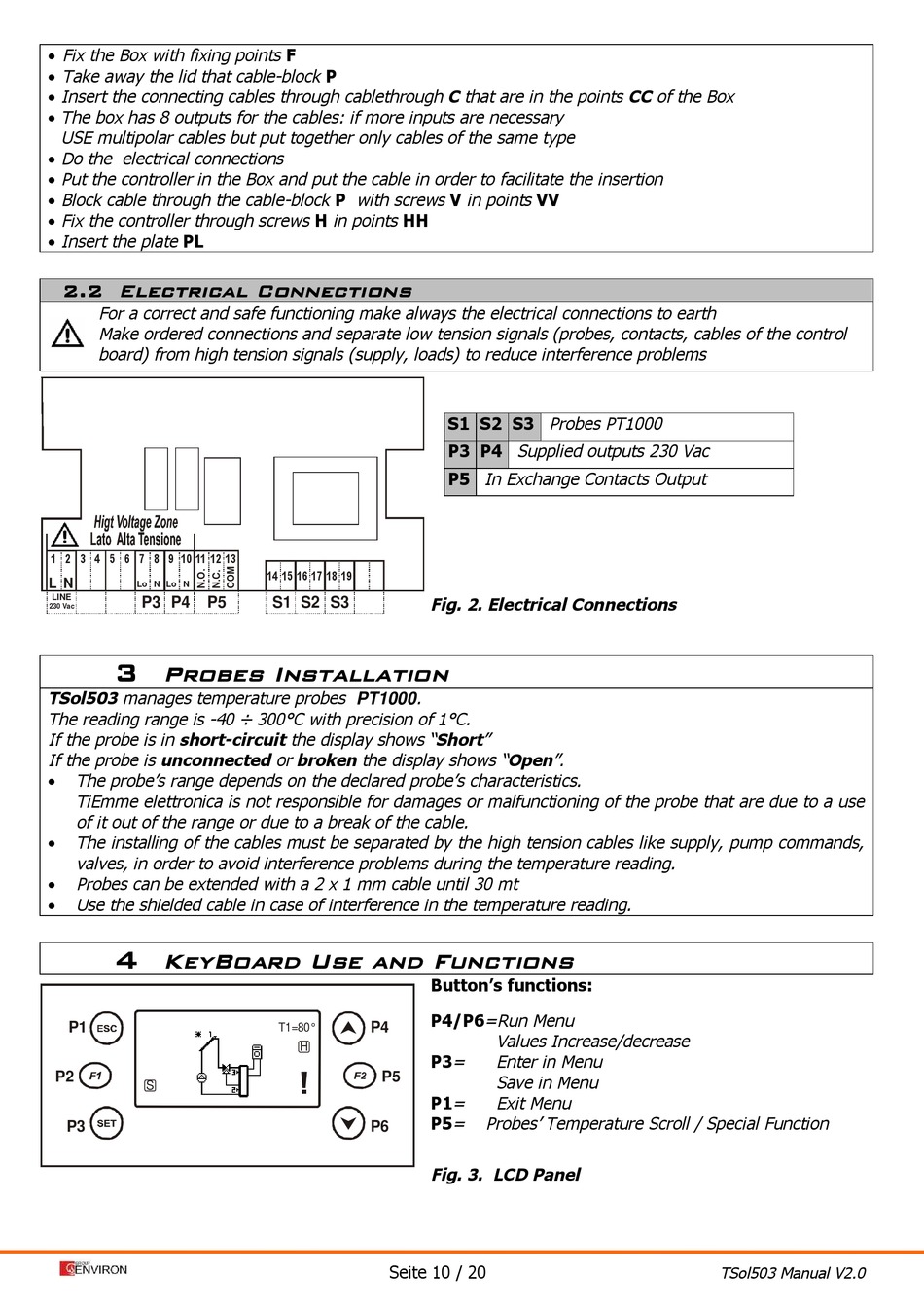

Fix the Box with fixing points F
Take away the lid that cable-block P
Insert the connecting cables through cablethrough C that are in the points CC of the Box
The box has 8 outputs for the cables: if more inputs are necessary
USE multipolar cables but put together only cables of the same type
Do the electrical connections
Put the controller in the Box and put the cable in order to facilitate the insertion
Block cable through the cable-block P with screws V in points VV
Fix the controller through screws H in points HH
Insert the plate PL
2.2 Electrical Connections
For a correct and safe functioning make always the electrical connections to earth
Make ordered connections and separate low tension signals (probes, contacts, cables of the control
board) from high tension signals (supply, loads) to reduce interference problems
1 2 3 4 5 6 7 8 9 10 11 12 13
L N
Lo N Lo N
LINE
P3 P4
P5
230 Vac
3
Probes Installation
TSol503 manages temperature probes PT1000 .
The reading range is -40 ÷ 300°C with precision of 1°C.
If the probe is in short-circuit the display shows "Short"
If the probe is unconnected or broken the display shows "Open".
The probe's range depends on the declared probe's characteristics.
TiEmme elettronica is not responsible for damages or malfunctioning of the probe that are due to a use
of it out of the range or due to a break of the cable.
The installing of the cables must be separated by the high tension cables like supply, pump commands,
valves, in order to avoid interference problems during the temperature reading.
Probes can be extended with a 2 x 1 mm cable until 30 mt
Use the shielded cable in case of interference in the temperature reading.
4
KeyBoard Use and Functions
P1
P2
S
P3
14 15 16 17 18 19
S1 S2 S3
Lun 10.30
P4
T1=80°
H
P5
P6
Seite 10 / 20
S1 S2 S3 Probes PT1000
P3 P4 Supplied outputs 230 Vac
P5 In Exchange Contacts Output
Fig. 2. Electrical Connections
Button's functions:
P4/P6 =Run Menu
Values Increase/decrease
P3 =
Enter in Menu
Save in Menu
P1 =
Exit Menu
P5 =
Probes' Temperature Scroll / Special Function
Fig. 3. LCD Panel
TSol503 Manual V2.0
