GB
General information
Please thoroughly read the following operating instructions before placing the device
into service and keep for future reference. The bell button is suitable for operation in
protected outdoor areas and not in harsh environments. The wireless chime is intended for
installation in dry indoor areas (IP20).
Installation may only be carried out by a qualified electrician!
Notes
• The wireless chime is only designed for use with the appropriate batteries.
• This wireless chime set consists of a transmitter and a receiver.
• This wireless chime set offers you the possibility to set up a bell system without wiring.
• This set is not intended for integration into an existing bell system.
• The range between transmitter and receiver is maximum 50m in the open field. The radio signal
is transmitted through walls, walls, furniture and other obstacles, but depends on the structural
conditions - walls, especially reinforced concrete walls, heat-insulating glazing and ceilings lead to a
reduction in range.
• Shielding caused by metal parts can severely impair reception, so that the signal cannot be transmitted.
For this reason, never attach the transmitter to metal surfaces.
• If the product is not in use for a long period of time, remove the batteries.
• The product has no replaceable parts. Do not try to open or repair the product.
Technical Data
Type:
F-688D
Range (free field)
max. 50m
Frequency:
433,92MHz
Frequency band:
433,05 – 434,79MHz
Max. transmission power:
<10mW
Battery:
Receiver: 3x 1,5V LR03 (AAA) (not included in delivery)
Transmitter: 1x 3V CR2032 (included in delivery)
Degree of protection:
Receiver: IP20 (for dry indoor use only)
Transmitter: IP44 (protected outdoor area)
Volume:
25-125dB (4-stage adjustable)
Number of melodies:
58 melodies for selection
Standby consumption:
Gong: <5mA
Mode:
Sound + flash (fixed)
Only sound
Only flash
Sound + continuous light (can be used as night light)
Degree of protection:
Safety Extra Low Voltage
Safety Instructions for batteries:
• Incorrect polarity of the batteries can destroy the unit.
• Do not store batteries within reach of children, especially those that can be swallowed.
• Do not attempt to reactivate batteries by heating or similar measures.
• Primary batteries must not be charged as this can lead to electrolyte leakage, explosion or fire.
• Do not immerse batteries in water and store them in a dry and cool place, not in a damp place.
• Do not throw batteries into the fire, do not open them or solder or weld them yourself.
• Do not short-circuit batteries.
Coding
The gong and bell button in this set have been encoded in the factory. If you would like to reset the
coding or add more gongs/bell buttons, proceed as follows:
Coding the gong and bell button:
Press the 'code' button. If the gong beeps, press the bell button within 5 seconds. If the gong
sounds, coding is successful. If the gong does not sound, press the bell button again until coding is
successful. To code several bell buttons, repeat the process outlined above.
Deleting coding:
Press and hold the 'code' button for around 10 seconds until the gong sounds. All coding is comple-
tely deleted.
Note: The coding between the gong and the bell button remains until you delete the coding as
described above. This is the case even if you remove the batteries.
Up to 6 gongs can be connected to one bell button.
Up to 6 bell buttons can be connected to one gong.
Note: If you connect several (max. 6) bell buttons to a gong, it is not possible to determine which bell
button is being pressed, as the chosen melody is saved on the gong and not on the bell button.

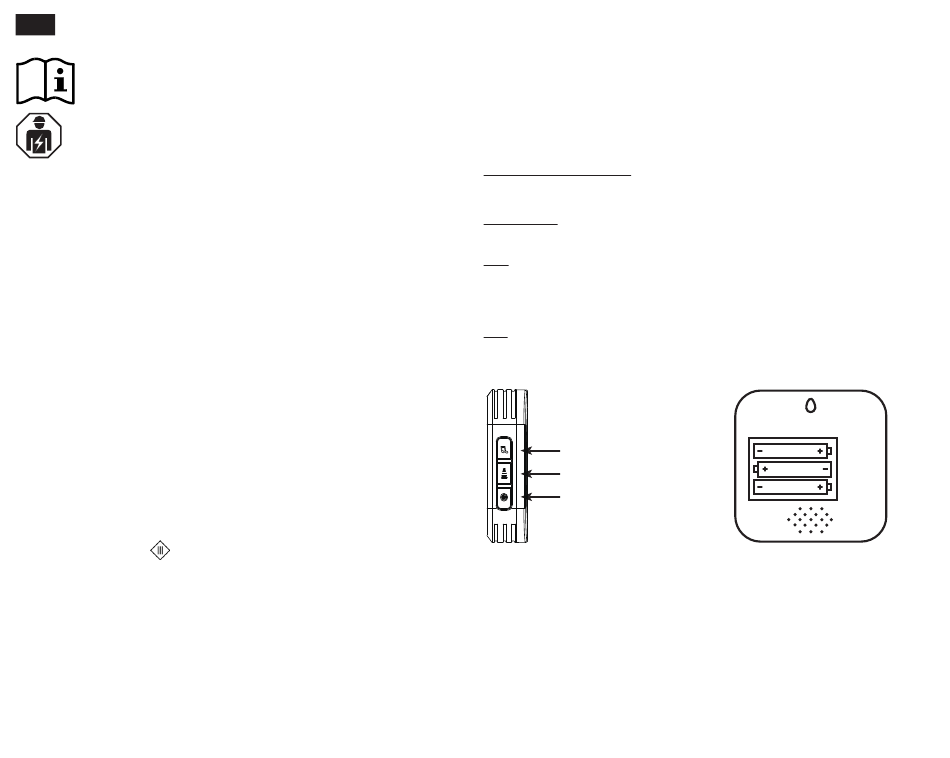

Melodies
Volume
Code
Set up
Remove the insulation strip in the battery compartment of the bell button and put the batteries in the
gong (for the battery type see 'Technical Data').
Volume setting / melody selection
Press the 'volume' / 'melody' button until you hear the correct volume/melody. Your selection is
automatically saved.
