MEGOLIATH
SPECIFICATIONS

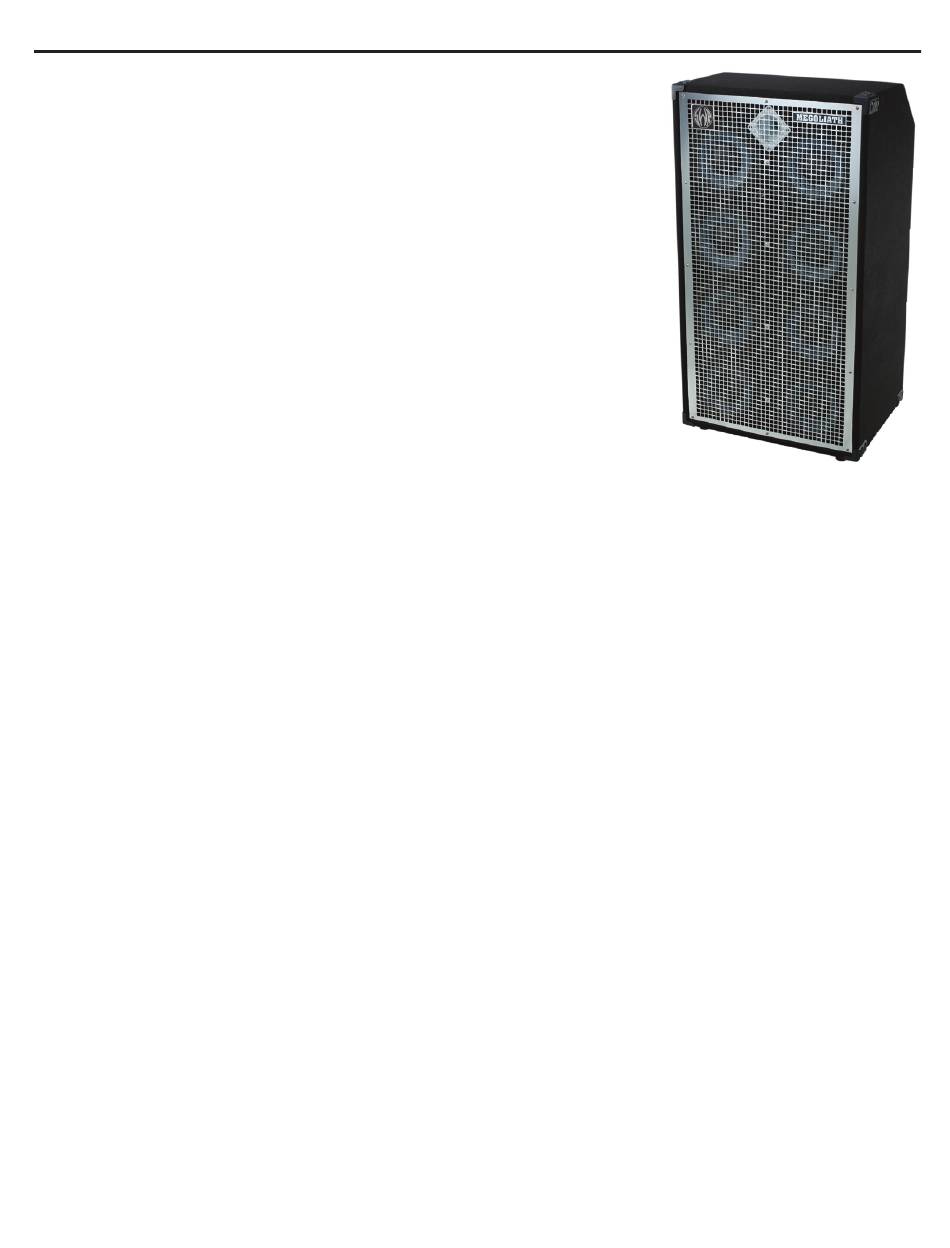

Description: 8x10 + Tweeter, Dual Chamber Speaker Enclosure
Power Handling:
Mono Cabinet Mode: 1200 Watts
Dual Cabinet Mode: 600 Watts (each chamber)
Impedance: Inputs for stereo (2 x 8 ohm) or mono (1 x 4 ohm)
operation
Frequency Response & SPL: 100 dB SPL @ 1W1M
(–3dB @ 37 Hz & 13 kHz)
Speaker Complement: (8) 10" Custom SWR Drivers, (1) Foster Horn
Porting: Unique front and rear porting system
Dimensions: 26.5"W x 20.25"D x 48.5"H
Weight: 154 Lbs.
ADDITIONAL FEATURES
Two independent speaker compartments, Input panel with Tweeter Attenuator, 1/4"
and Speakon Input jacks, Heavy Duty Inset Casters, Heavy Duty Grab Bars and Skid rails, Bottom mounted handles for safe lift-
ing, Chrome Grill.
OVERVIEW
Megoliath was designed to be the ultimate professional speaker cabinet in both power-handling and application flexibility. To
achieve maximum performance for your preferred setup, please read the following instructions carefully and thoroughly.
Megoliath is basically two independent 4x10 enclosures that can be run separately from two different sources, or as one
mono 8x10 enclosure by chaining the top and bottom enclosures together using the high-quality Speakon speaker cable pro-
vided. Each independent 4x10 enclosure has its own input panel: "A" for the top and "B" for the bottom.
CONNECTION AND OPERATION
All of the jacks (both Speakon and 1⁄4") on input panels "A" and "B" are wired in parallel. All jacks run full range and any one
per panel can be used as an input jack. However, we have marked the jacks with "in" and "out" labels for your wiring conve-
nience.
MONO OPERATION
When using Megoliath as a mono 8x10 cabinet (one amplified source), simply connect the Speakon-to-Speakon speaker cable
from the "Output To Bottom Section—Mono Operation" jack on panel "A" to the "Input" Speakon jack on panel "B. " Then connect
your amplifier's speaker output to one of the inputs (either 1⁄4" or Speakon) on panel "A". When using Megoliath in mono mode,
SWR strongly recommends a high quality (14 gauge or better) Speakon-to-Speakon connection from your amplifier to the
panel "A" input, as the Speakon jack offers a superior connection and maximum transference of power. This is why we have
provided the Speakon cable and clearly marked the "Output" Speakon jack on panel "A. " However, 1⁄4" jacks are available on
both top and bottom panels for use with amplifiers that are not equipped with Speakon output jacks.
16 • Professional and Custom Pro Specialist Series
(continued on next page)
