EN
Installation Guide
Hamax Hitch Adapter for 12 mm Thru Axle
WARNING: Before using this product, please read the Installation Guide carefully.

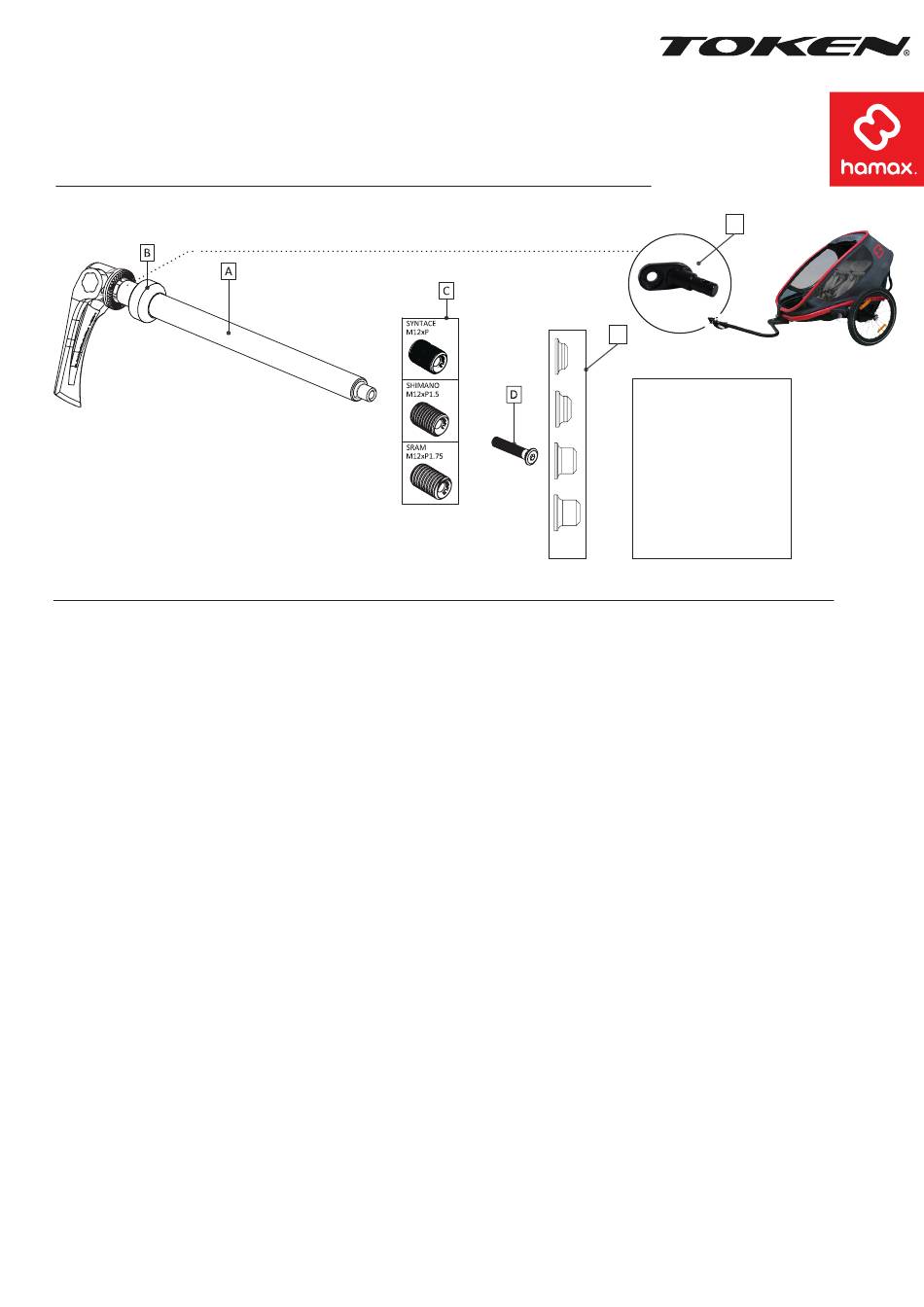

A. Thru Axle
B. Washer
C. Thread (M12 xP1.0-SYNTACE®/M12xP1,5 SHIMANO®/M12xP1,75-SRAM®)
D. Lever Adjustment Screw
E. Hamax Hitch
F. 4 different spacers
1.
Identify which thru axle that fits your bike by removing the existing one in line with the bicycle user manual. Observe
brand, diameter, length and tread pitch. Choose the matching thread stud (C) and spacer (F) for your frame and axle.
Screw the thread onto the end of the thru axle. Ensure that the letters on the inside of the thread are still visible to
you after being attached, i.e. not facing towards the axle.
2.
Attach the trailer hitch (E) and slide the axle through the hub. If you are using a Syntace ® frame, please make sure
that you put the washer (B) over the thru axle before assembly.
3.
Check that the lever is in an open position and turn it clockwise to tighten the thru axle to the frame. The tightening
force should be 6-7 Nm.
4.
Close the lever fully. It shall now be positioned 90o to the axle. A firm pressure is required to close it securely
(15-20 Nm). If the lever cannot fully close, it is NOT secure. Make sure that the lever is NOT touching the frame.
5.
When closed, a suggested position for the lever of the axle is at 45o between the seat stay and the chain stay.
6.
If you have any problems with the assembly, open the lever and loosen the axle until you find the correct position.
Hold the lever in place and use a 3 mm Allen (hex) key to tighten the lever adjustment screw (D) on the drive side of
the bike. When this screw is tight, again close the lever (15-20 Nm) of the skewer on the non-drive side.
WARNING! It is important to remember that just a half turn of the screw can make the difference between the correct
or incorrect closing force of the thru axle. Do not use any tools to close or open the lever. If the thru axle is not properly
adjusted, the wheel can suddenly and unexpectedly fall off the bicycle, resulting in an accident, personal injury or death.
BEFORE THE RIDE:
○
Check that the thru axle is properly fastened.
○
Check your wheel installation before riding. Lift the bicycle and give the top of the tyre a sharp downwards blow.
Shake the wheel to make sure that the wheel is fastened tightly. The wheel should not come off or move. If uncertain,
repeat the installation procedure above.
○
Practise using the thru axle until you can obtain the correct closing force with ease. If you have any doubts about
the correct tightness, or the use of the thru-axle, please check with your retailer or a specialized technician for
assistance or advice.
®
1,0
®
®
Translations of the user manual are available at www.hamax.com
E
F
The axle fits:
142 mm M12xP1.0 mm
142 mm
142 mm M12xP1.5 mm
142 mm M12xP1.75 mm
148 mm M12xP1.0 mm
148 mm M12xP1.5 mm
148 mm
148 mm M12xP1.75 mm
