Connect the Router

Connect the Router
Figure 1-3

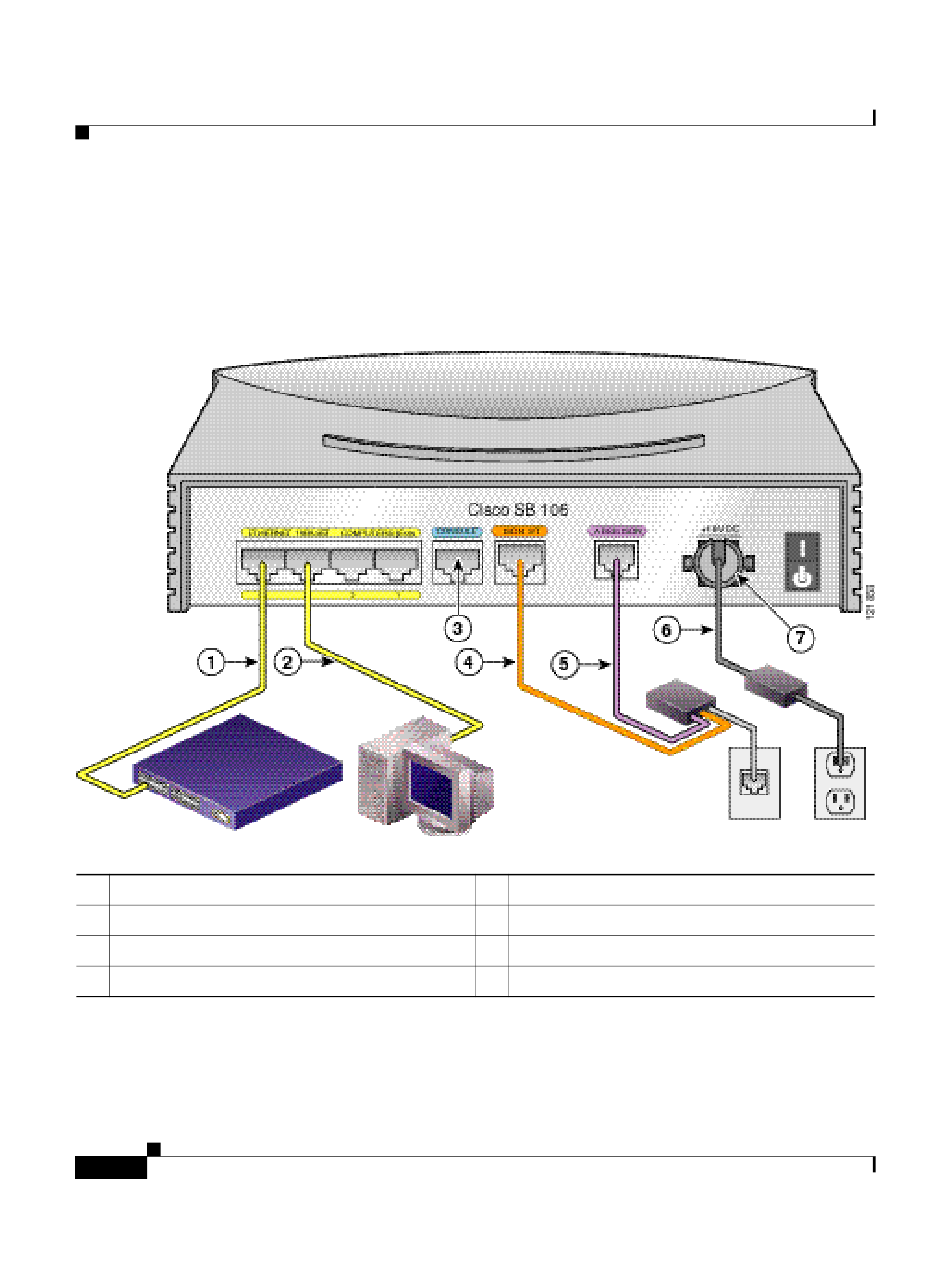

Figure 1-3 Typical Cisco SB 106 Installation
1 Yellow Ethernet cable
2 Yellow Ethernet cable
3 Console port
4 Orange ISDN S/T cable
Cisco SB 106 Router Cabling and Setup
1-6
shows a typical installation of a Cisco SB 106 router.
5 Lavender ADSL cable
6 Power cord
7 Power lock clip
