7

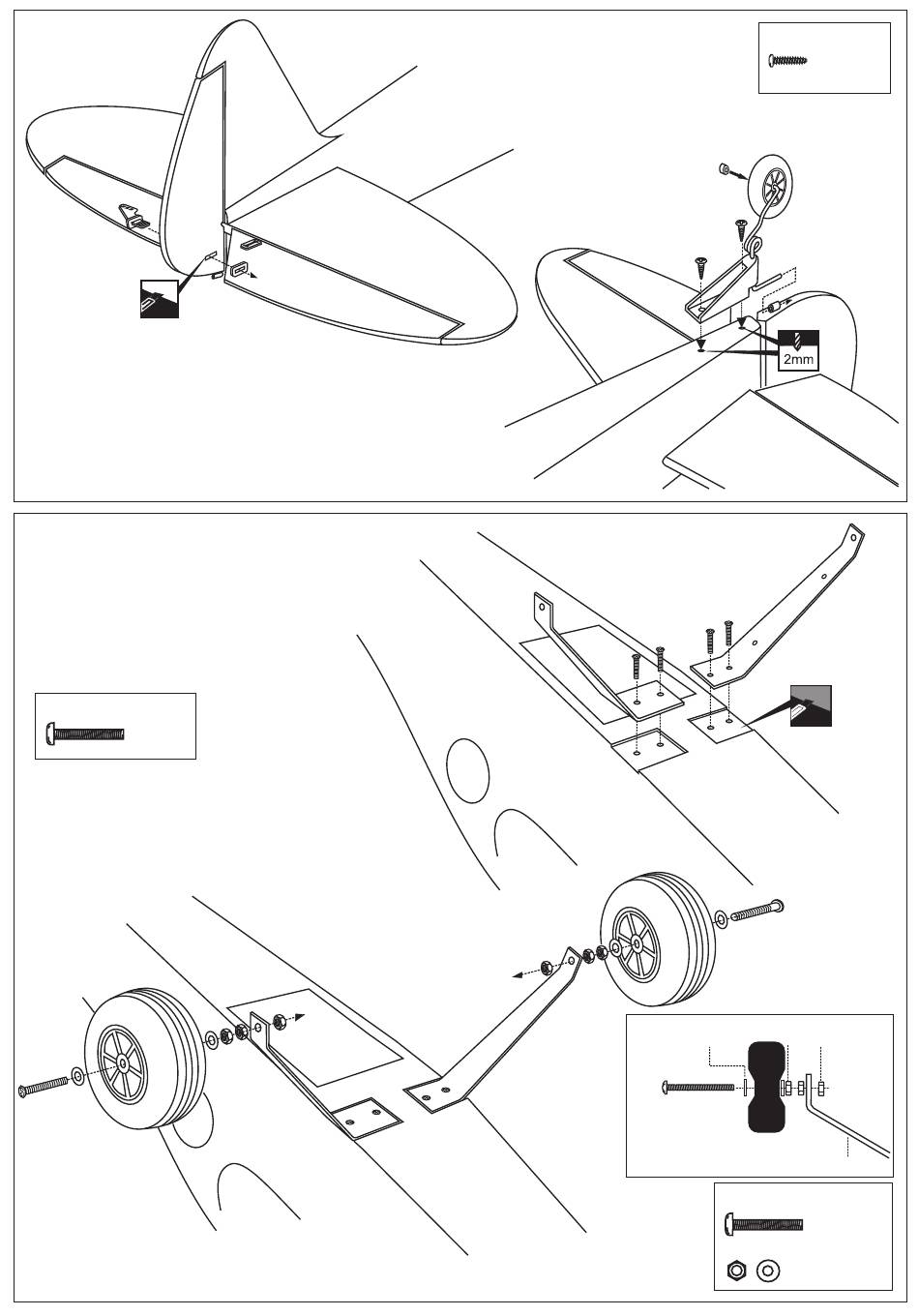

Cut away only
the covering.
Note: The slots for the control horn
installation are pre- cut at factory.
8
3X15mm screw
............4
* WARNING: When removing any covering
from the airframe, please ensure that you
secure the cut edge with CA or similar cement.
This will ensure the covering remain tight.
7A
7B
8A
8B
3mm collar
3x12mm screw
Fuselage - bottom view
Fuselage - bottom view
3x15mm screw
4x40mm screw
3x12mm screw
.........2
3mm collar .....1
Cut away only
the covering
4mm nut
4mm washer
Aluminum landing gear
4X40mm screw
............2
4mm nut-washer
............2
